JCW2-i
AIR FILTER REGULATOR |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 103680 | AIR FILTER REGULATOR AW20-02BE-R (SMC) | - | JCW2-i-05(1~4)-JB/APH | |
| Accessories | ||||

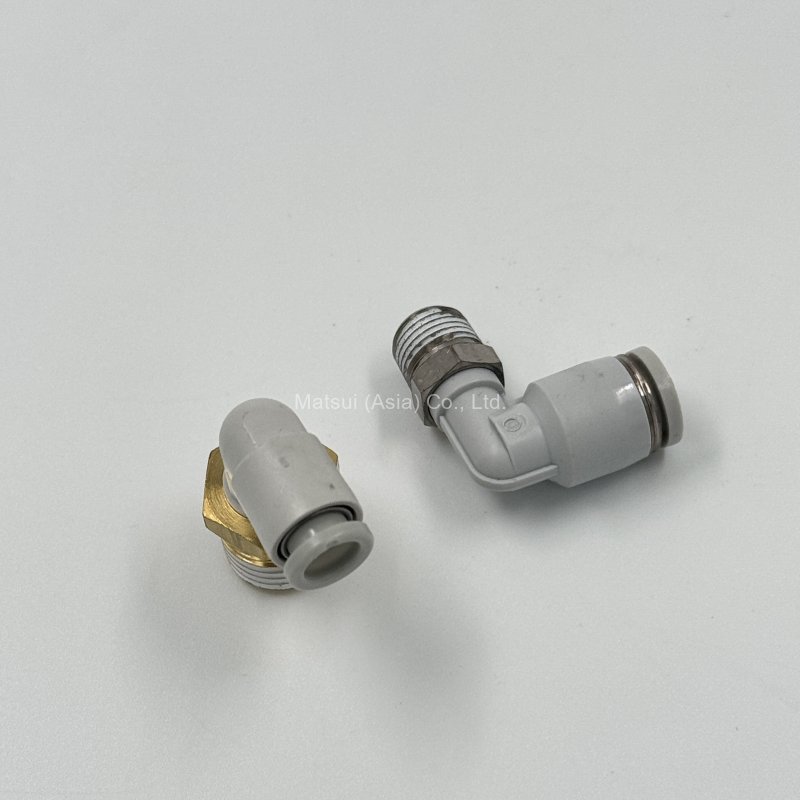

| FITTING KQ2L-06-02AS (SMC) | - | JCW2-i-05(1~4)-JB/APH | ||

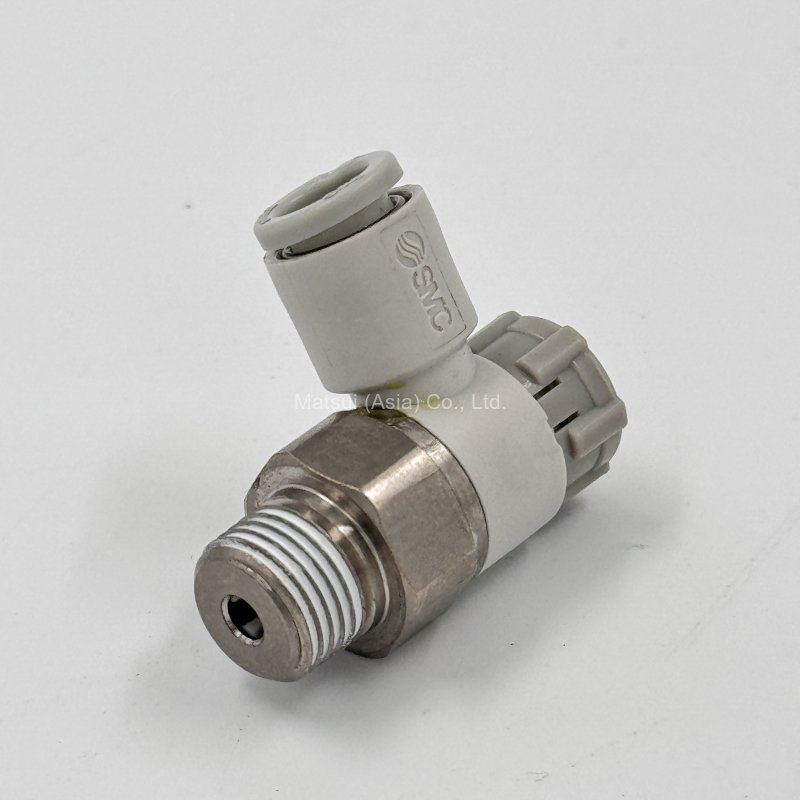

| SPEED CONTROLLER AS1201F-M05 -06SA | - | JCW2-i-05(1~4)-JB/APH | ||

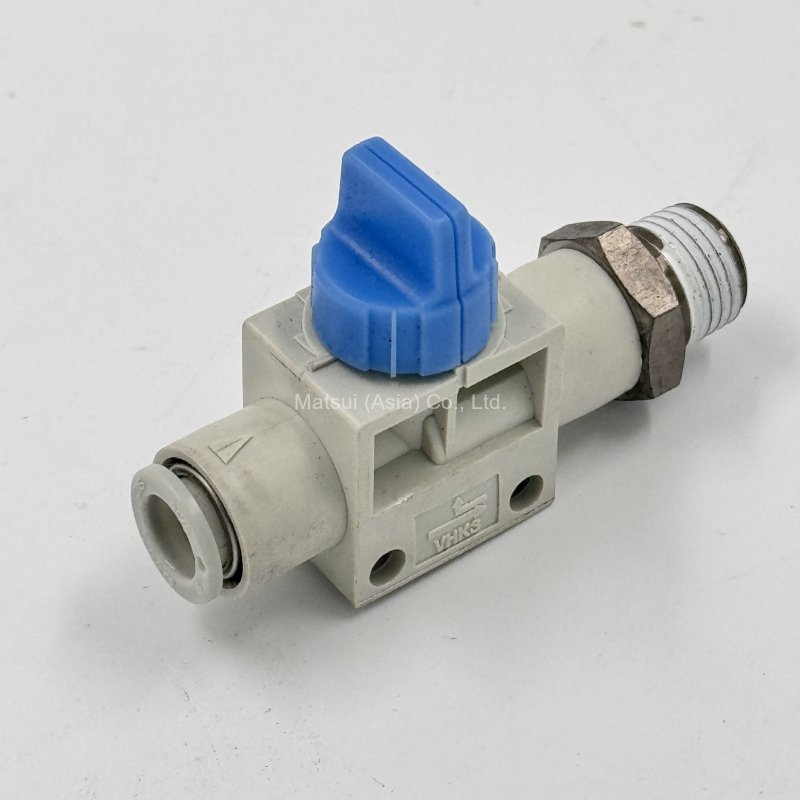

| 110695 | FINGER VALVE VHK3-08F-02S (SMC) | JCW2-i-05(1~4)-JB/APH | ||

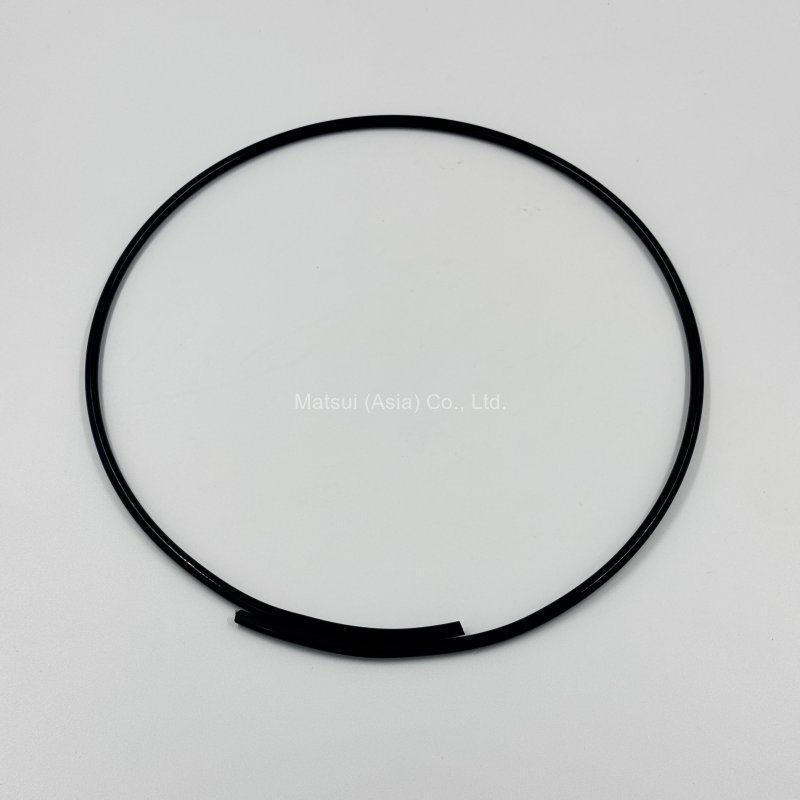

| POLYURETHANE TUBE TU0604B (SMC) | - | JCW2-i-05(1~4)-JB/APH | ||
| 115927 | POLYURETHANE TUBE TU0604W (SMC) | - | JCW2-i-05(1~4)-JB/APH | |
BACKUP BATTERY |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

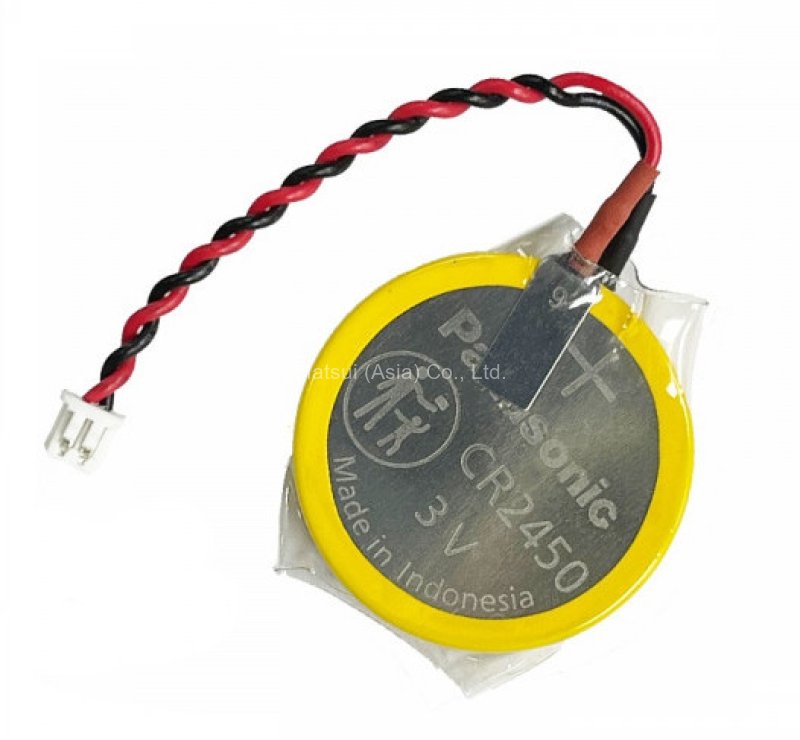

| BATTERY AFPX-BATT FOR PLC CR2450 3V (PANASONIC) | AC200~220 (50/60Hz) | JCW2-i-05 | ||
CAPACITIVE SENSOR |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Level switch | ||||

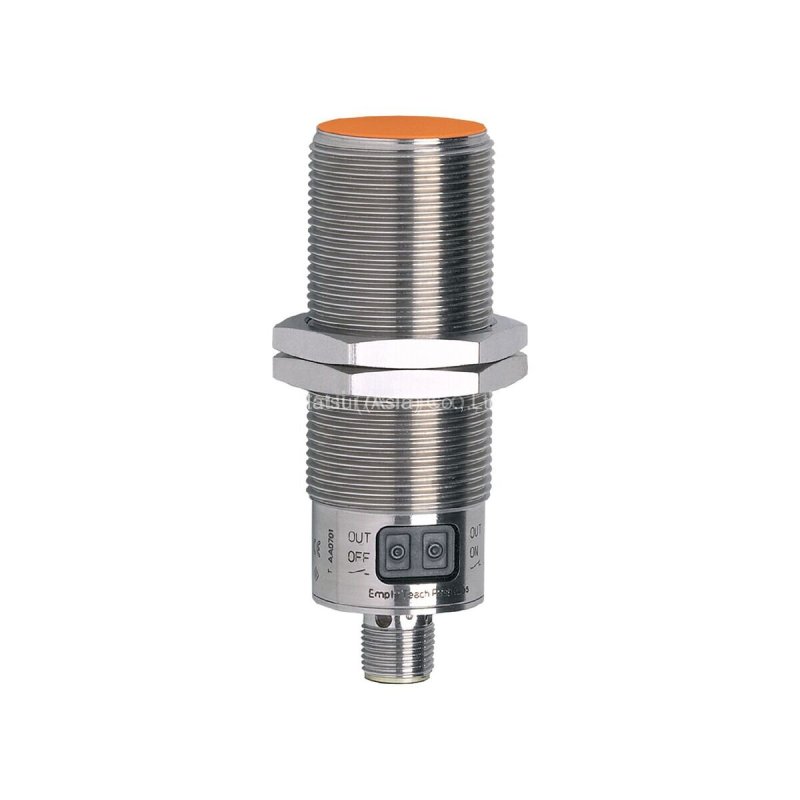

| CAPACITIVE SENSOR KI5084, DC24V (IFM) | DC12~24V | JCW2-i-05(1~4)-JB/APH | ||
| 127121 | CABEL WITH CONNECTOR EVC004, L=2M (IFM) | - | JCW2-i-05(1~4)-JB/APH | |
CARTRIDGE FILTER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

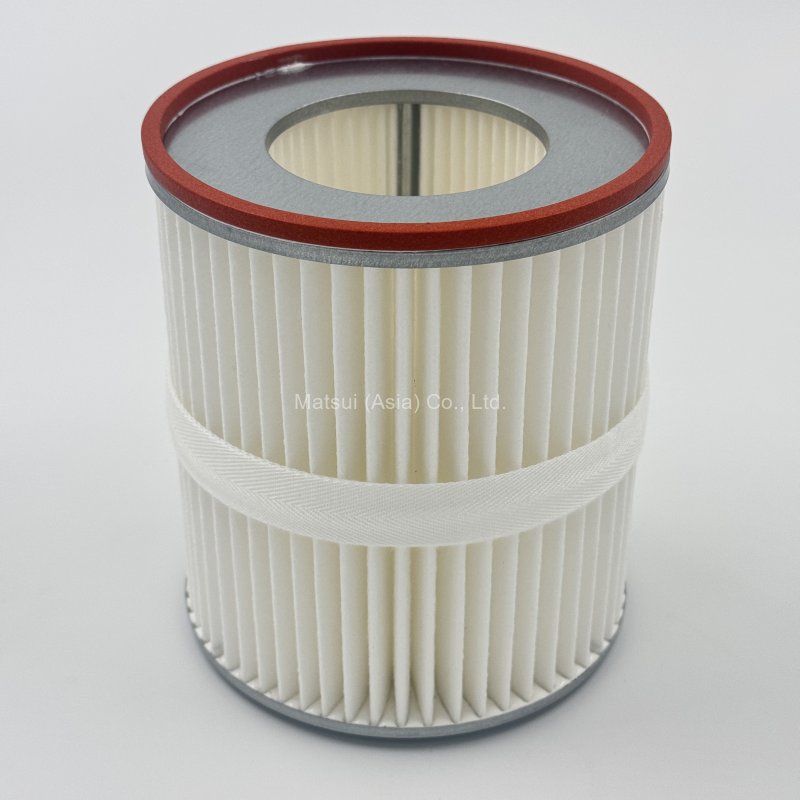

| 101253 | CARTRIDGE FILTER MXF-16SP-G4 (Dia. 145x158) DWG.190682 (CMC Dwg.C190682) | - | JCW2-i-05(1~4)-JB/APH | |
CATCH CLIP |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 100550 | CATCH CLIP P-31 with ARM DWG.162800 | - | JCW2-i-05(1~4)-JB/APH | |
CIRCUIT BREAKER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 104237 | CIRCUIT PROTECTOR FAZ-C3/1 (EATON) | AC200~220 (50/60Hz) | JCW2-i-05 | |
| 125953 | MINIATURE CIRCUIT BREAKER FAZ-S2/2 (EATON) | AC200~220 (50/60Hz) | JCW2-i-05 | |

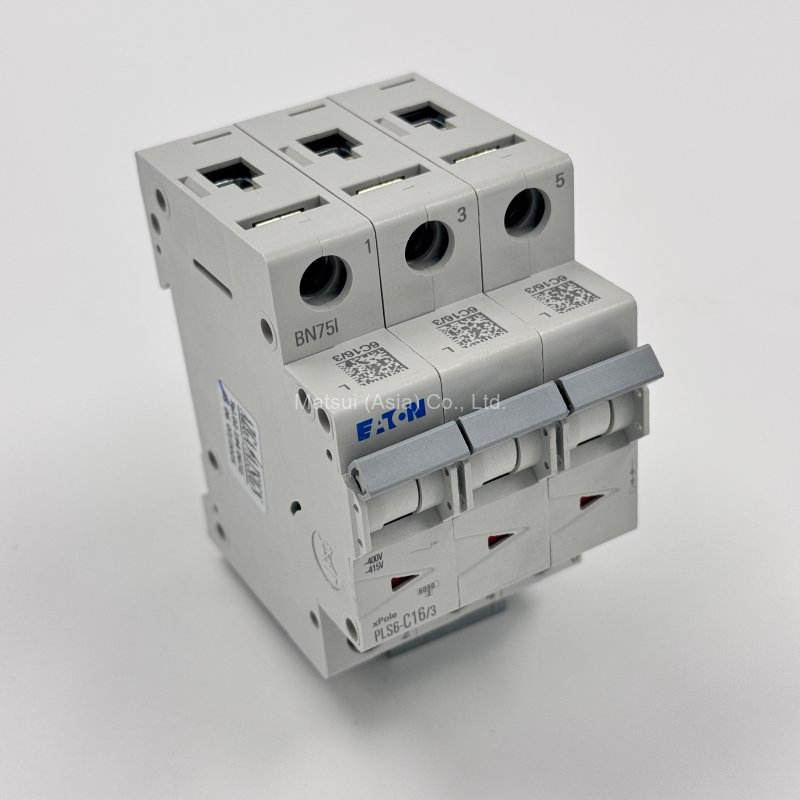

| 129945 | CIRCUIT PROTECTOR FAZ-C16/3 (EATON) | AC200~220 (50Hz) | JCW2-i-05 | |
| 129945 | CIRCUIT PROTECTOR FAZ-C16/3 (EATON) | AC200~220 (60Hz) | JCW2-i-05 | |
| 129947 | CIRCUIT PROTECTOR FAZ-C20/3 (EATON) | AC200~220 (50Hz) | JCW2-i-05 | |
| 129947 | CIRCUIT PROTECTOR FAZ-C20/3 (EATON) | AC220 (60Hz) | JCW2-i-05 | |
| 129948 | CIRCUIT PROTECTOR FAZ-C32/3 (EATON) | AC200~220 (60Hz) | JCW2-i-05 | |
| 129949 | CIRCUIT PROTECTOR FAZ-C3/3 (EATON) | AC200~220 (50/60Hz) | JCW2-i-05 | |
COMPACT CYLINDER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Accessories | ||||
| TUBE JOINT GWJS6-M5 (CKD) | - | JCW2-i-05(1~4)-JB/APH | ||
| NYLON HOSE Dia. 4MM (BLACK) | - | JCW2-i-05(1~4)-JB/APH | ||
| 129667 | DOUBLE CLEVIS KNUCKLE JOINT SSD-Y2-16 (CKD) | - | JCW2-i-05(1~4)-JB/APH | |
| FITTING KQ2H-04-06A (SMC) | - | JCW2-i-05(1~4)-JB/APH | ||
| COUPLING PLUG CPPE3-4 (PISCO) | - | JCW2-i-05(1~4)-JB/APH | ||
| COUPLING SOCKET CPSE3-4 (PISCO) | - | JCW2-i-05(1~4)-JB/APH | ||
| For Selector valve : 5VN-38 | ||||
| 111717 | AIR CYLINDER SSD-KL-25-30 (SRN..04623) | - | JCW2-i-05(1~4)-JB/APH | |
| For weighing discharge | ||||
| COMPACT CYLINDER SSD-KL-16-50-N-CB-Y (CKD) | - | JCW2-i-05(1~4)-JB/APH | ||
| For Mixing section | ||||
| AIR CYLINDER SSD-25-30 (CKD) | - | JCW2-i-05(1~4)-JB/APH | ||

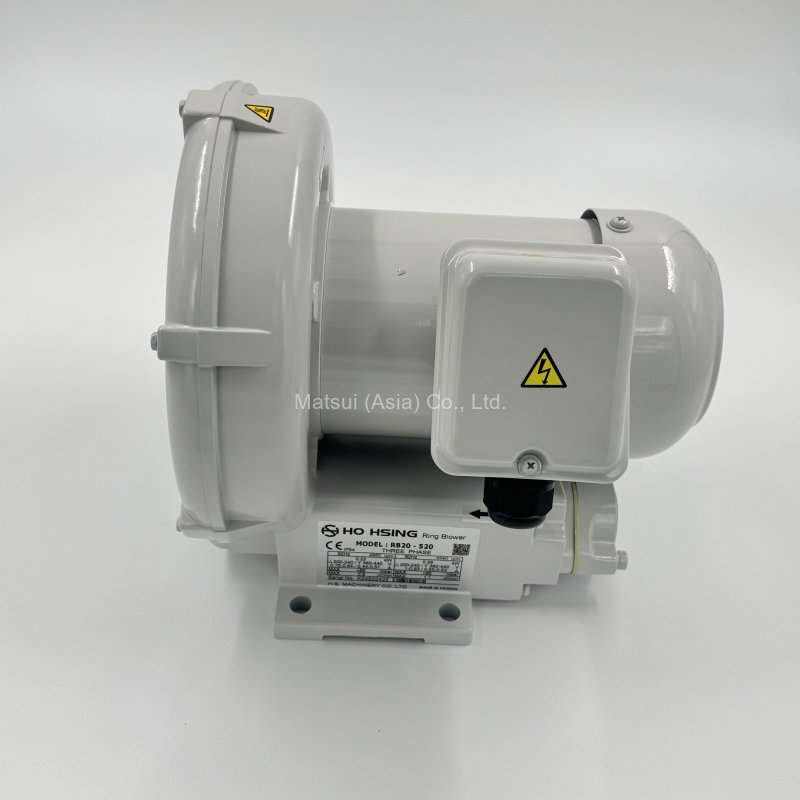

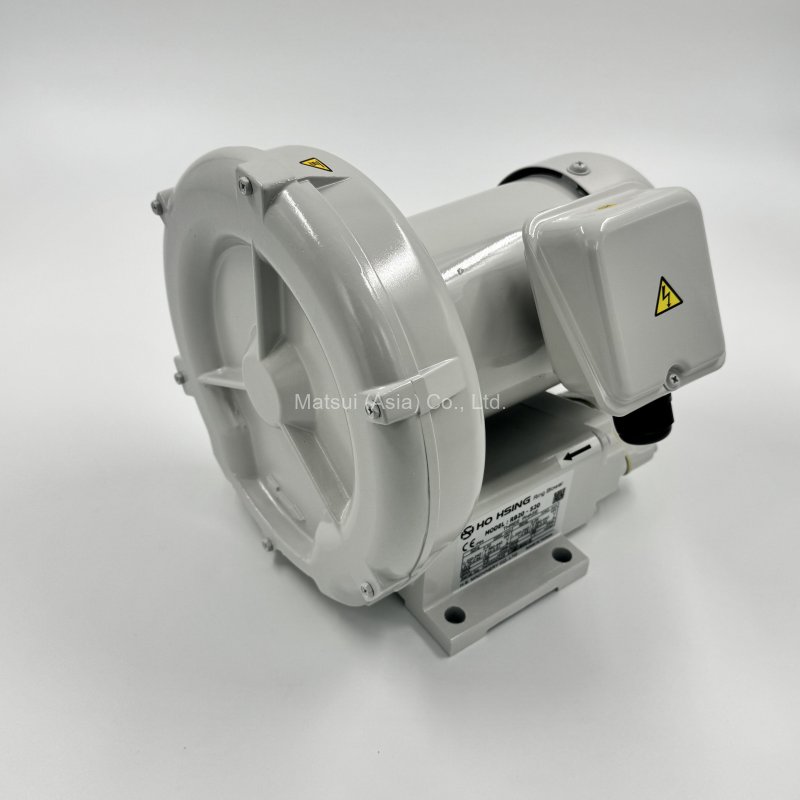

CONVEYING BLOWER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 115443 | RING BLOWER RB50-620 AC200-240/380-440V, 50Hz/60Hz (HO-HSING) | AC200~240/380~440V(60Hz) | JCW2-i-05(1~4)-JB/APH | |

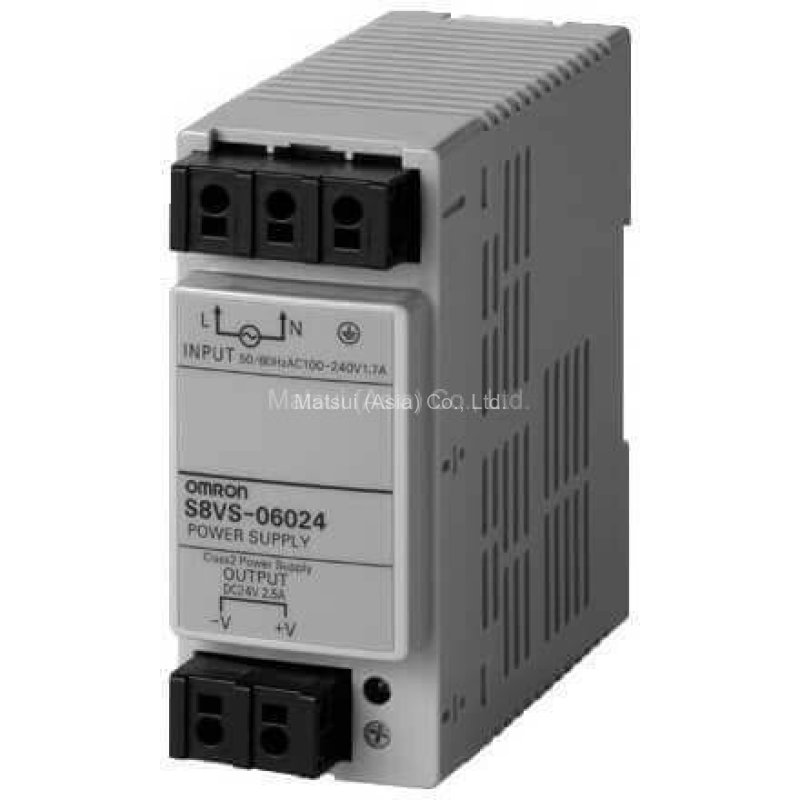

DC POWER SUPPLY |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| DC POWER SUPPLY S8VS-06024 (OMRON) | AC200~220 (50/60Hz) | JCW2-i-05 | ||

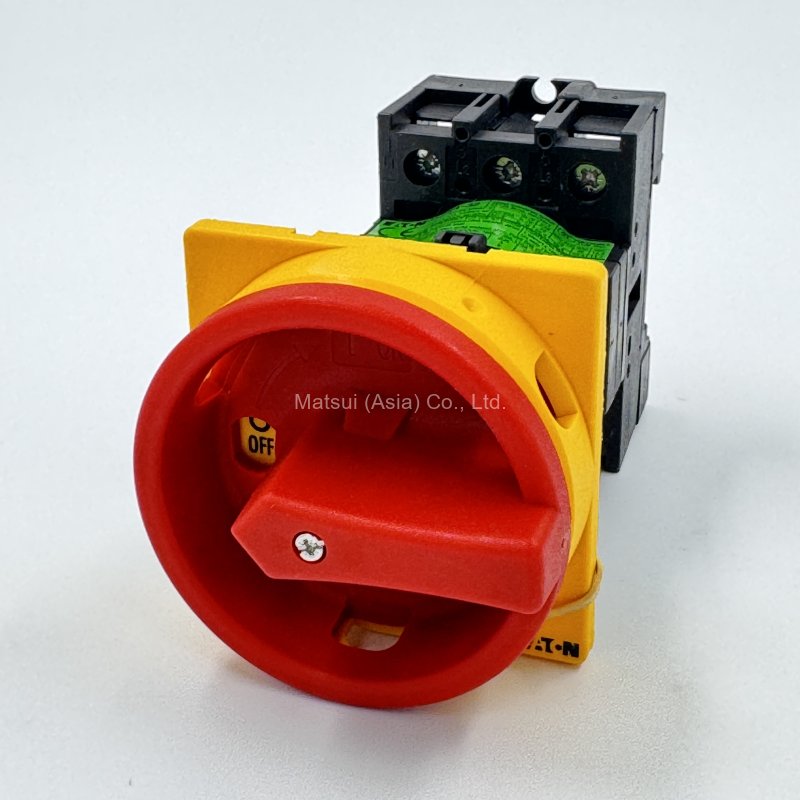

DISCONNECTOR SWITCH |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 129950 | DISCONNECTOR SWITCH P1-32/EA/SVB (EATON) | AC200~220 (50/60Hz) | JCW2-i-05 | |

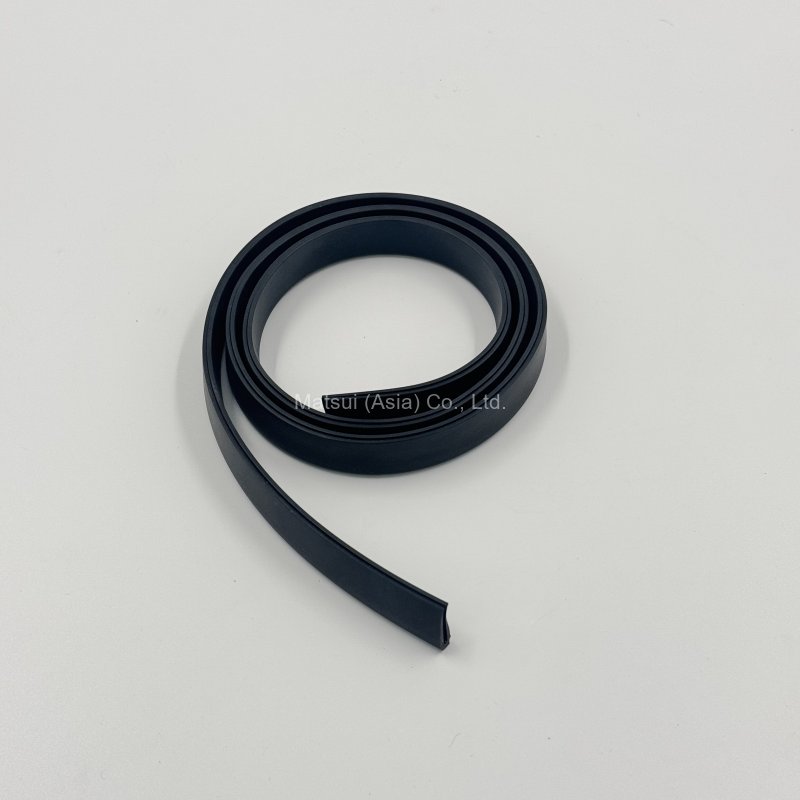

DUST BOX PACKING |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 100729 | JL U-PACKING EPT (BLACK) DWG.506054 | - | JCW2-i-05(1~4)-JB/APH | |
FERRITE CORE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

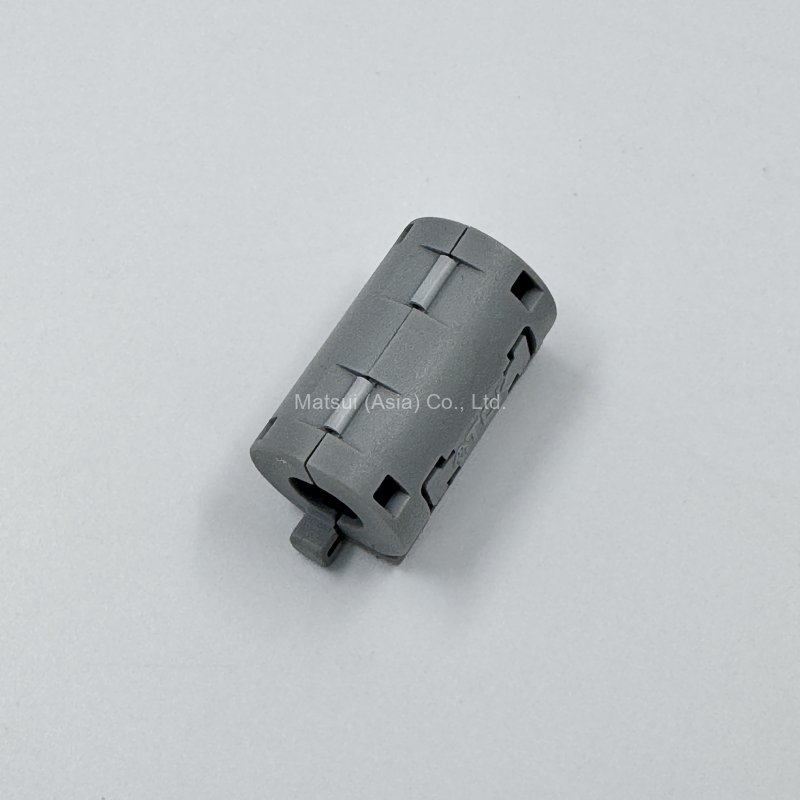

| 114931 | FERRITE CORE ZCAT2035-0930A (TDK) | AC200~220 (50/60Hz) | JCW2-i-05 | |
GEAR MOTOR |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Mixing section | ||||

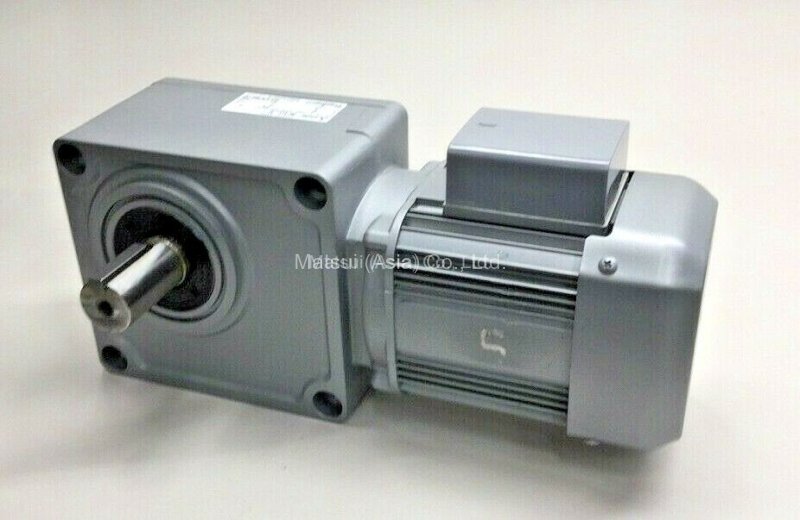

| GEAR MOTOR GM-SHYF-PR, 0.1kW (MITSUBISHI) | AC100V, 200V | JCW2-i-05(1~4)-JB | ||
| Accessories | ||||
| 130045 | DUST SEAL OPF-W (NOK) | - | JCW2-i-05(1~4)-JB/APH | |

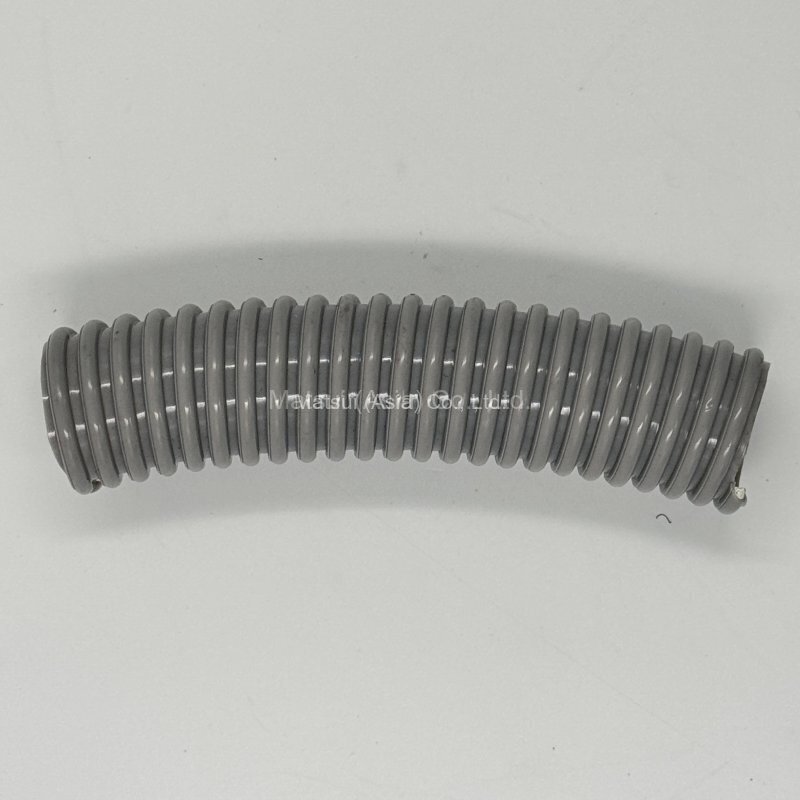

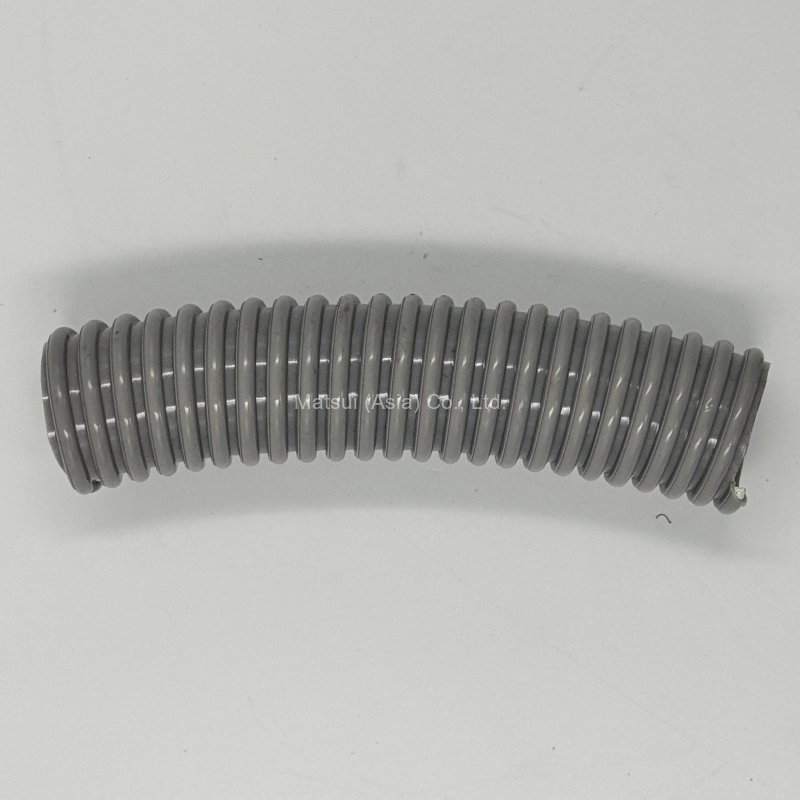

HOSE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| GL-TYPE-Ø | ||||

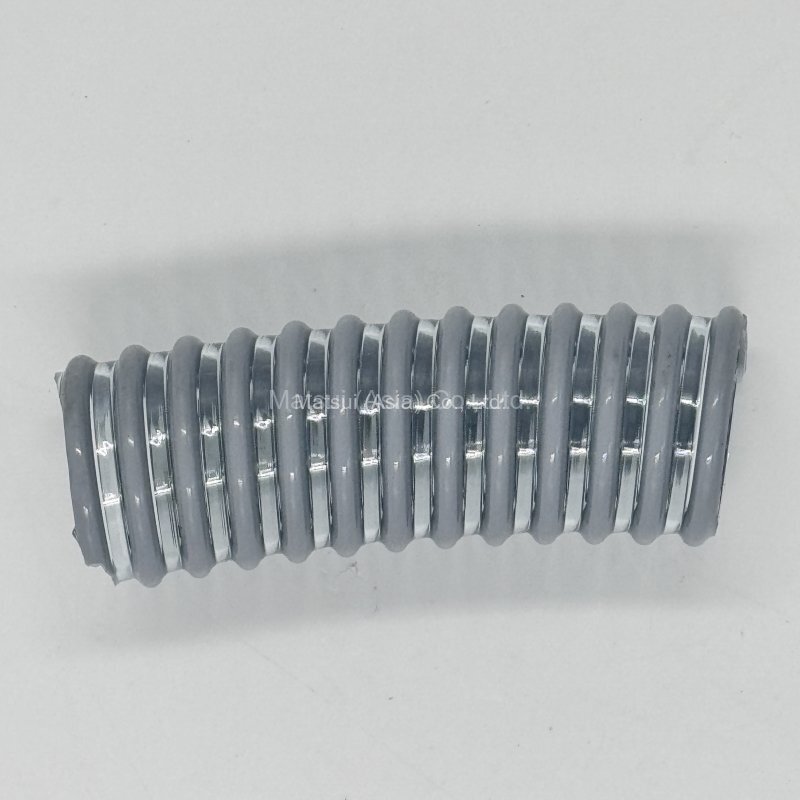

| 100573 | GL HOSE DIA.38.10MM | - | JCW2-i-05(1~4)-JB/APH | |
| 100573 | GL HOSE DIA.38.10MM | - | JCW2-i-05(1~4)-JB/APH | |

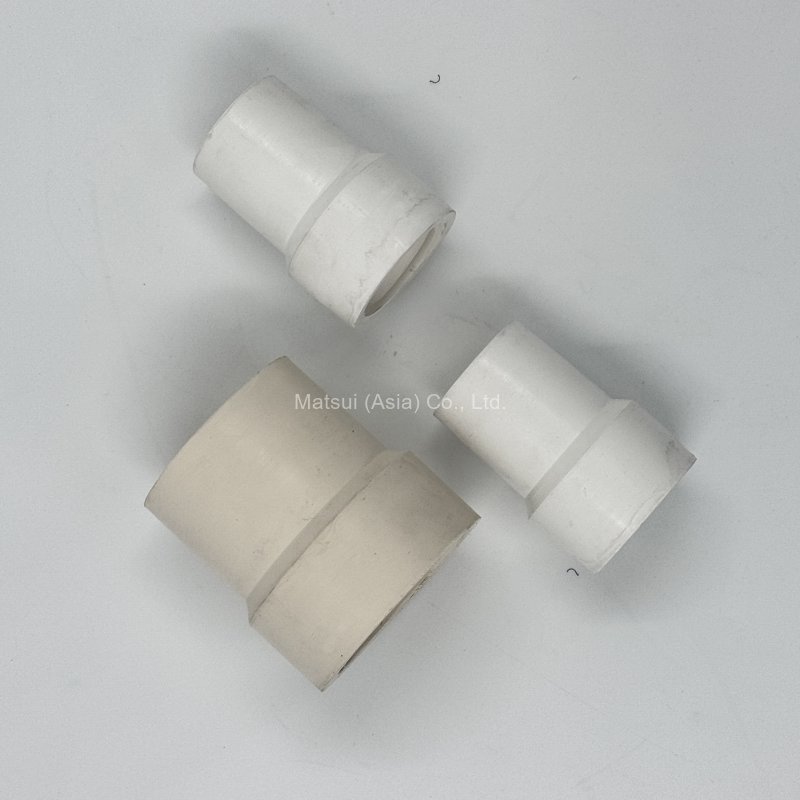

| 100580 | HOSE COUPLING 38MM | - | JCW2-i-05(1~4)-JB/APH | |
| 100581 | HOSE COUPLING 63MM | - | JCW2-i-05(1~4)-JB/APH | |
| 100617 | GL HOSE DIA.50.80MM | - | JCW2-i-05(1~4)-JB/APH | |
| 100657 | GL HOSE DIA.76 MM | - | JCW2-i-05(1~4)-JB/APH | |
| W-TYPE-Ø | ||||
| 103756 | TIFLEX HOSE ANTISTATIC W Type DIA.65mm (TIGER POLYMER)(W-65) | - | JCW2-i-05(1~4)-JB/APH | |
| 107754 | TIFLEX HOSE ANTISTATIC W Type DIA.38mm (TIGER POLYMER)(W-38) | - | JCW2-i-05(1~4)-JB/APH | |
| 116599 | TIFLEX HOSE ANTISTATIC W Type DIA.50mm (TIGER POLYMER)(W-50) | - | JCW2-i-05(1~4)-JB/APH | |
| 117700 | TIFLEX HOSE ANTISTATIC W Type DIA.75mm (TIGER POLYMER)(W-75) | - | JCW2-i-05(1~4)-JB/APH | |
| 119327 | TIFLEX HOSE ANTISTATIC W TYPE DIA.60.5mm (TIGER POLYMER) (W-60) | - | JCW2-i-05(1~4)-JB/APH | |
LOAD CELL |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Volume measuring | ||||

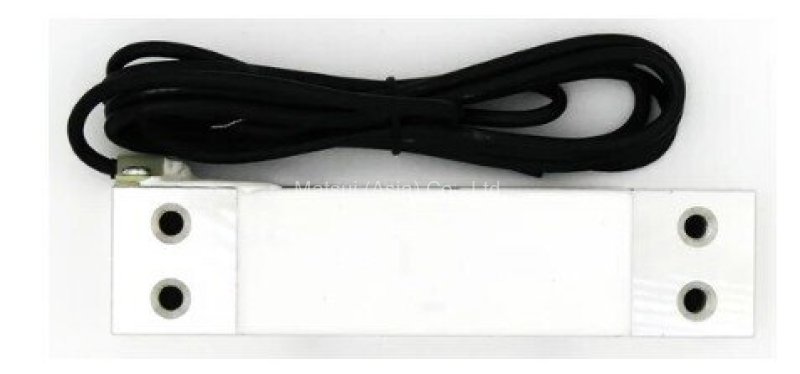

| LOAD CELL C2G1-15K-F-1.5M (NMB) | DC12~24V | JCW2-i-05(1~4)-JB/APH | ||
MAGNETIC CONTACTOR |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| MAGNETIC CONTACTOR SD-Q11 DC24V (MITSUBISHI) | AC200~220 (50/60Hz) | JCW2-i-05 | ||

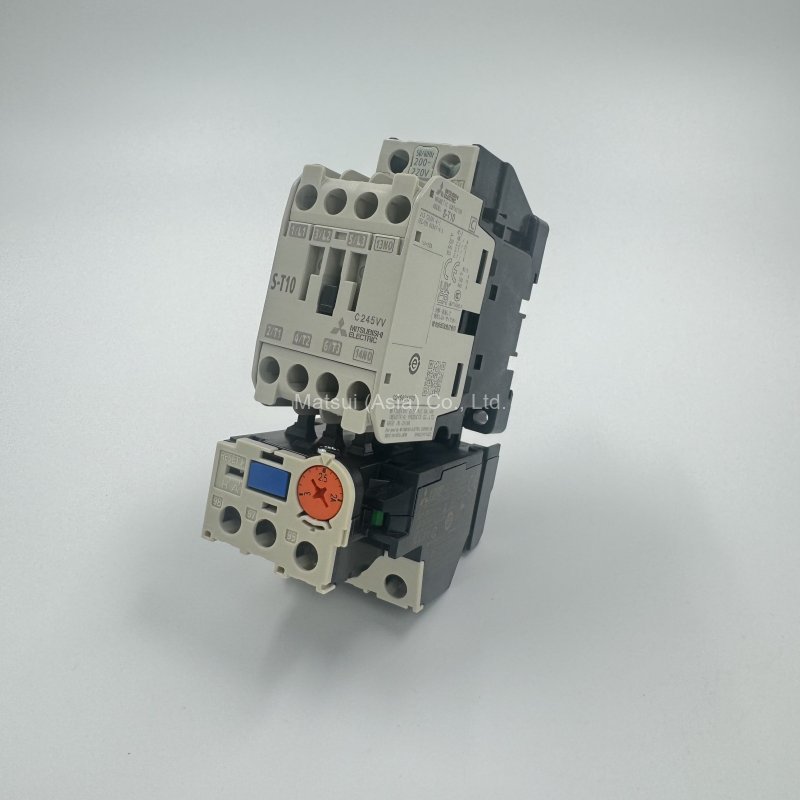

MAGNETIC STARTER ( BLOWER ) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

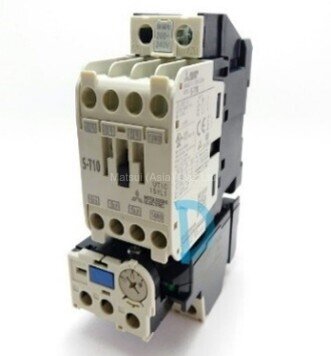

| 129951 | MAGNETIC CONTACTOR MSO-DQ11KP, 4-6A, DC24V (MITSUBISHI) | AC200~220 (50Hz) | JCW2-i-05 | |
| 129951 | MAGNETIC CONTACTOR MSO-DQ11KP, 4-6A, DC24V (MITSUBISHI) | AC200~220 (60Hz) | JCW2-i-05 | |
| 129952 | MAGNETIC CONTACTOR MSO-DT21KPSA, 7-11A, DC24V (MITSUBISHI) | AC200~220 (50Hz) | JCW2-i-05 | |
| 129952 | MAGNETIC CONTACTOR MSO-DT21KPSA, 7-11A, DC24V (MITSUBISHI) | AC200~220 (60Hz) | JCW2-i-05 | |
| 129953 | MAGNETIC CONTACTOR MSO-DQ11KP, 5.2-8A, DC24V (MITSUBISHI) | AC200~220 (60Hz) | JCW2-i-05 | |
MAGNETIC STARTER ( MIXING MOTOR JB & SB TYPE ) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 129954 | MAGNETIC CONTACTOR MSO-DQ11KP, 0.55-0.85A, DC24V (MITSUBISHI) | AC200~220 (50/60Hz) | JCW2-i-05 | |
MANIFOLD SOLENOID VALVE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 116015 | BODY PORTED MANIFOLD : SS5Y3-20-07 (SMC) | - | JCW2-i-05(1~4)-JB/APH | |
| 129671 | SOLENOID VALVE SY3120-5LO-C6 (SMC) | DC24V,AC200V | ||
| Accessories | ||||
| 101608 | SILENCER AN10-01 (SMC) | - | JCW2-i-05(1~4)-JB/APH | |
| 105715 | FITTING KQ2P-06 PLUG (SMC) | - | JCW2-i-05(1~4)-JB/APH | |
| 124318 | AIR CHECKER ELECTRONIC PRESSURE SWITCH PS1000-R06L (SMC) | DC24V | JCW2-i-05(1~4)-JB/APH | |
| 129672 | FITTING : KQ2Y-06-01AS (SMC) | - | JCW2-i-05(1~4)-JB/APH | |
PROGRAMMABLE CONTROLLER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| PLC CPU UNIT AFP0HC32ET (PANASONIC) | AC200~220 (50/60Hz) | JCW2-i-05 | ||
| COMMUNICATION CASSETTES AFP0HCCS1M1 (PANASONIC) | AC200~220 (50/60Hz) | JCW2-i-05 | ||
| EXPANSIOON I/O UNIT AFP0RE32T (PANASONIC) | AC200~220 (50/60Hz) | JCW2-i-05 | ||
RELAY |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 102923 | RELAY G2R-2SN DC24V (OMRON) | AC200~220 (50/60Hz) | JCW2-i-05 | |
| 129684 | RELAY PCRY-4M1N (TOYO GIKEN) | AC200~220 (50/60Hz) | JCW2-i-05 | |
SAFETY SWITCH |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Door cover | ||||
| ACTUATOR HS9Z-A52 (IDEC) | - | JCW2-i-05(1~4)-JB/APH | ||

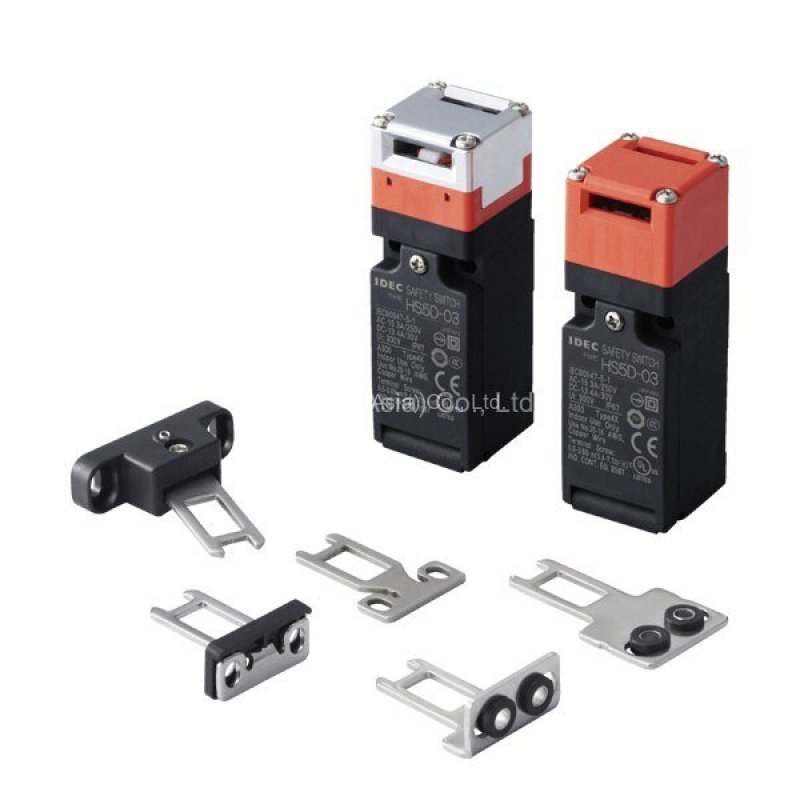

| SAFETY SWITCH HS5B-02DN (IDEC) | DC12~24V | JCW2-i-05(1~4)-JB/APH | ||
SCREW FEEDER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 129661 | SCREW FEEDER SF-25IT0 UNIT DWG.F02182 | AC200V,50Hz/60Hz | JCW2-i-05(1~4)-JB/APH | |
| 129662 | SCREW FEEDER UNIT SF-40IT0 DWG.F02183 | AC200V,50Hz/60Hz | JCW2-i-05(1~4)-JB/APH | |
| 129663 | SCREW FEEDER UNIT SF-50IT0 DWG.F02184 | AC200V,50Hz/60Hz | JCW2-i-05(1~4)-JB/APH | |
| Accessories | ||||
| 129660 | C-RING dia 50 (FOR HOLE) | - | JCW2-i-05(1~4)-JB/APH | |
| 129664 | GEAR MOTOR GFM-12-10-T40, 40W (GTR) | AC200V,50Hz | JCW2-i-05(1~4)-JB/APH | |
| 130046 | SCREW FEEDER SF-25IT0, SUS304 DWG.F02182 Without Motor | - | JCW2-i-05(1~4)-JB/APH | |
| 130047 | SCREW FEEDER SF-40IT0, SUS304 DWG.F02183 Without Motor | - | JCW2-i-05(1~4)-JB/APH | |
| 130048 | SCREW FEEDER SF-50IT0, SUS304 DWG.F02184 Without Motor | - | JCW2-i-05(1~4)-JB/APH | |
SOCKET |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

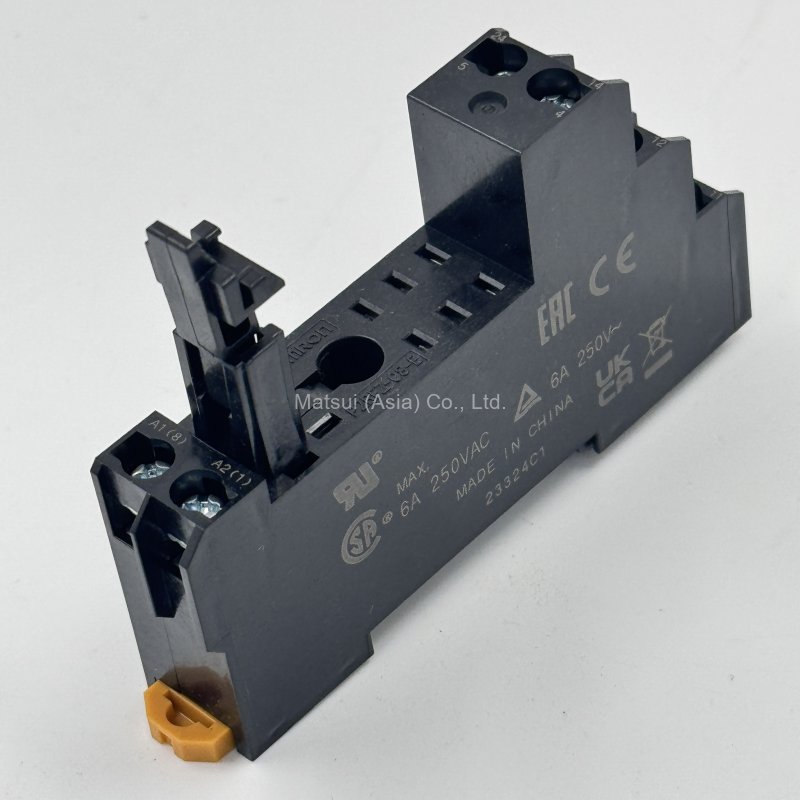

| 102921 | SOCKET P2RFZ-08-E (OMRON) | AC200~220 (50/60Hz) | JCW2-i-05 | |
