MGL2

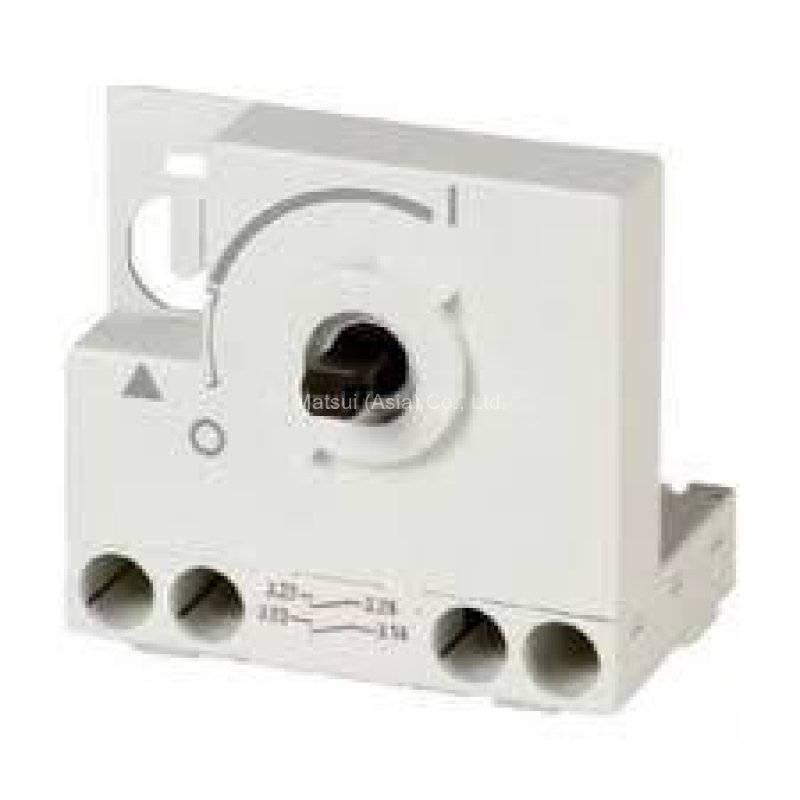

AUXILIRY CONTACT |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| AUXILIARY CONTACT FOR PKZM0 : VH120-PKZ0 (EATON) | ALL | ALL | ||

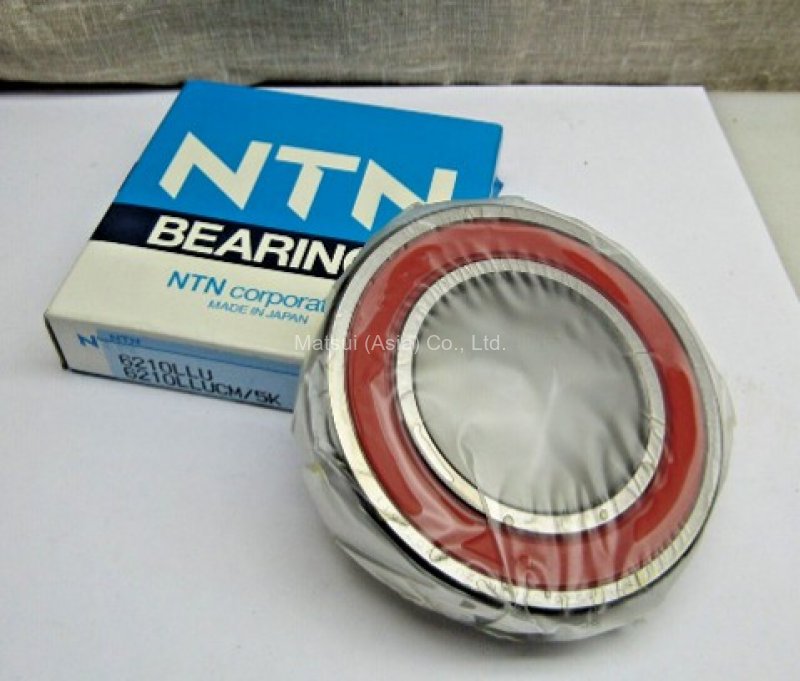

BALL BEARING |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Main Shaft | ||||
| 129588 | BALL BEARING 6207LLU-CM-5K (NTN) | MGL2-50-J | ||
| BALL BEARING 6210LLU-CM-5K (NTN) | MGL2-100, 200-J | |||
| BALL BEARING 6210LLU-CM-5K (NTN) | MGL2-100-J-TEP | |||
| BALL BEARING 6311DDU (NSK) | MGL2-300J | |||
BREAKER SWITCH BOX |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| MOTOR PROTECTIVE CIRCUIT BREAKER 6.3~10A PKZM0-10 (EATON) for SMGL-300 | AC200~220 ( 50-60Hz ) | MGL2-200A / 300A | ||
| MOTOR PROTECTIVE CIRCUIT BREAKER 1.6~2.5A PKZM0-2.5 (EATON) for SMGL-100 | AC200 ( 50-60Hz ) | MGL2-050A | ||
| MOTOR PROTECTIVE CIRCUIT BREAKER 1.6~2.5A PKZM0-2.5 (EATON) for SMGL-100 | AC380~415 ( 50-60Hz ) | MGL2-100A | ||
| MOTOR PROTECTIVE CIRCUIT BREAKER 2.5~4A PKZM0-4 (EATON) for SMGL-200 | AC200~220 ( 50-60Hz ) | MGL2-100A | ||
| MOTOR PROTECTIVE CIRCUIT BREAKER 2.5~4A PKZM0-4 (EATON) for SMGL-200 | AC380~415 ( 50-60Hz ) | MGL2-200A | ||
| 119562 | MOTOR CIRCUIT BREAKER PKZM-6.3 (EATON) | AC380~415 ( 50-60Hz ) | MGL2-300A | |
| MOTOR PROTECTIVE CIRCUIT BREAKER 1.6~2.5A PKZM0-2 (EATON) for SMGL-050A | AC220 ( 50-60Hz ) | MGL2-050A | ||
| MOTOR PROTECTIVE CIRCUIT BREAKER 1.0~1.6 PKZM0-1.6 (EATON) for SMGL-050A | AC380~415 ( 50-60Hz ) | MGL2-050A | ||

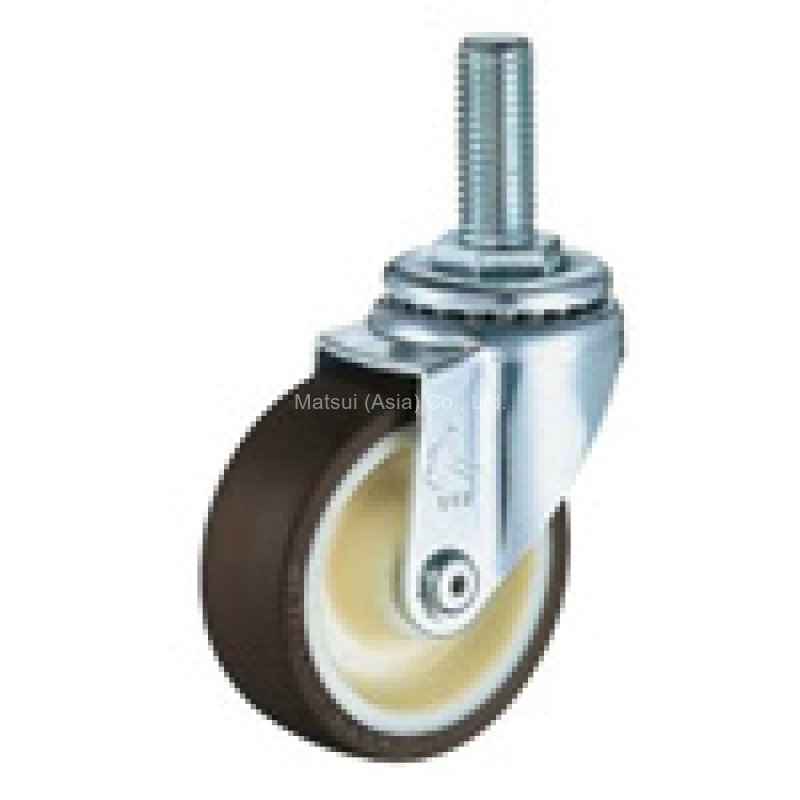

CASTER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Frame | ||||
| 104999 | CASTER 420EA-N DIA.50MM, FREE (HAMMER) | MGL2-50-J | ||
| 105942 | CASTER 413SA-N100, NYLON (HAMMER) | MGL2-200-J | ||
| CASTER 420SA-N75, NYLON (HAMMER) | MGL2-100-J , TEP | |||
| 107462 | CASTER 413SA-N75, NYLON (HAMMER) | MGL2-100-J , TEP | ||
| 112630 | CASTER 415EA-N DIA.50MM, FREE+BREAK (HAMMER) | MGL2-50-J | ||
| 129919 | CASTER 413SA-N125, NYLON (HAMMER) | MGL2-300-J | ||
| 129921 | CASTER 420SA-N100, NYLON (HAMMER) | MGL2-200-J | ||
CATCH CLIP |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Camber | ||||
| 129620 | CATCH CLIP C-1539-4 (SUS304) | MGL2-50-J | ||
| 129621 | CATCH CLIP C-1539-2 (SUS305) | MGL2-300-J | ||
CLAMP LEVER (HANDLE, CLAMP, CROSS KNOB) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Fixed blade, scraper side | ||||
| CLAMP LEVER HANDLE (MAIL SCREW) : LEM-10 × 32-BK | MGL2-50-J | |||
| Fixed Blade Side (Female Thread) | ||||
| CLAMP LEVER HANDLE (Female Thread) : FKF12-SV | MGL2-100-J | |||
| 129625 | CLAMP LEVER HANDLE (Female Thread) : FKF16-SV | MGL2-200-J | ||
| Scraper side (male screw) | ||||
| 129624 | CLAMP LEVER HANDLE (MAIL SCREW) : LEM-12×32-SG | MGL2-100-TPE-J | ||
| 129626 | CLAMP LEVER HANDLE (MAIL SCREW) : FKR12×40-SV | |||
| Fixed blade side | ||||
| FOUR - ARM HANDLE : FA-160 | MGL2-300-J | |||
| Loading hopper open/close fulcrum | ||||
| CROSS KNOB : KJM-50-M10×25 | MGL2-100, 200-J | |||
| Opposite side | ||||
| CROSS KNOB : KJM-50-M10×25 | MGL2-100-TPE-J | |||
FIXED BLADE / BED CUTTER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Camber | ||||
| 129605 | FIXED BLADE (4 × 5) FOR MGL2-50-J | MGL2-50-J | ||
| 129606 | FIXED BLADE (4 × 5) FOR MGL2-100-J (3 PCS/1SET) | MGL2-100-J | ||
| 129607 | FIXED BLADE (5 × 5) FOR MGL2-100-J (3 PCS/1SET) | |||
| 129608 | FIXED BLADE (4 × 5) FOR MGL2-100-J-TEP (3 PCS/1SET) | MGL2-100-J-TEP | ||
| 129609 | FIXED BLADE (5 × 5) FOR MGL2-100-J-TEP (3 PCS/1SET) | MGL2-100-J-TEP | ||
| 129610 | FIXED BLADE (5 × 5) FOR MGL2-200-J (3 PCS/1SET) | MGL2-200-J | ||
| 129611 | FIXED BLADE (6 × 7) FOR MGL2-300-J (3 PCS/1SET) | MGL2-300-J | ||
FIXED COARSE CRUSHING BLADE / CRUSHING BLADE CUTTER / FIXED COARSE BLADE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Camber | ||||
| 129612 | FIXED COARSE CRUSHING BLADE FOR MGL2-100-J, MGL2-100-J-TEP | MGL2-100-J | ||
| 129612 | FIXED COARSE CRUSHING BLADE FOR MGL2-100-J, MGL2-100-J-TEP | MGL2-100-J-TEP | ||
| 129613 | FIXED COARSE CRUSHING BLADE FOR MGL2-200-J | MGL2-200-J | ||
| 129614 | FIXED COARSE CRUSHING BLADE FOR MGL2-300-J | MGL2-300-J | ||
GAP ADJUSTMENT JIG |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Camber | ||||
| 129541 | ADJUSTMENT JIG SDI-0237-01 FOR SMGL-100-J, MGL2-100,200-J, MGL2-100-J-TEP | MGL2-100,200-J | ||
| 129541 | ADJUSTMENT JIG SDI-0237-01 FOR SMGL-100-J, MGL2-100,200-J, MGL2-100-J-TEP | MGL2-100-J-TEP | ||
| 129543 | GAP ADJUSTMENT JIG Shim A 0.2T FOR SMGL-100/200/300-J, MGL2-50~300-J | MGL2-50~300-J | ||
| 129544 | GAP ADJUSTMENT JIG Shim B 0.3T FOR SMGL-100/200/300-J, MGL2-50~300-J | MGL2-50~300-J | ||
| 129545 | GAP ADJUSTMENT JIG Shim C 0.15T FOR SMGL-100/200/300-J, MGL2-50~300-J | MGL2-50~300-J | ||
GEAR MOTOR |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 129584 | HYPOID MOTOR HMTE040-35H60, AC200V/220V/380V, 50Hz/60Hz WITH CAP (TSUBAKI) FOR MGL2-50-J | AC200V/220V/380V, 50Hz/60Hz | MGL2-50-J | |
| 129585 | HYPOID MOTOR HMTE075-45H80, AC200V/220V/380V, 50Hz/60Hz WITH CAP (TSUBAKI) FOR MGL2-100-J | AC200V/220V/380V, 50Hz/60Hz | MGL2-100-J , TEP | |
| 129586 | HYPOID MOTOR HMTE150-45H80-P1F1, AC200V/220V/380V, 50Hz/60Hz WITH CAP (TSUBAKI) FOR MGL2-200-J | AC200V/220V/380V, 50Hz/60Hz | MGL2-200-J | |
| 129587 | HYPOID MOTOR GM-SHY2F-RLW, AC200V/220V/380V, 50Hz/60Hz WITH CAP (MITSUBISHI) FOR MGL2-300-J | AC200V/220V/380V, 50Hz/60Hz | MGL2-300-J | |

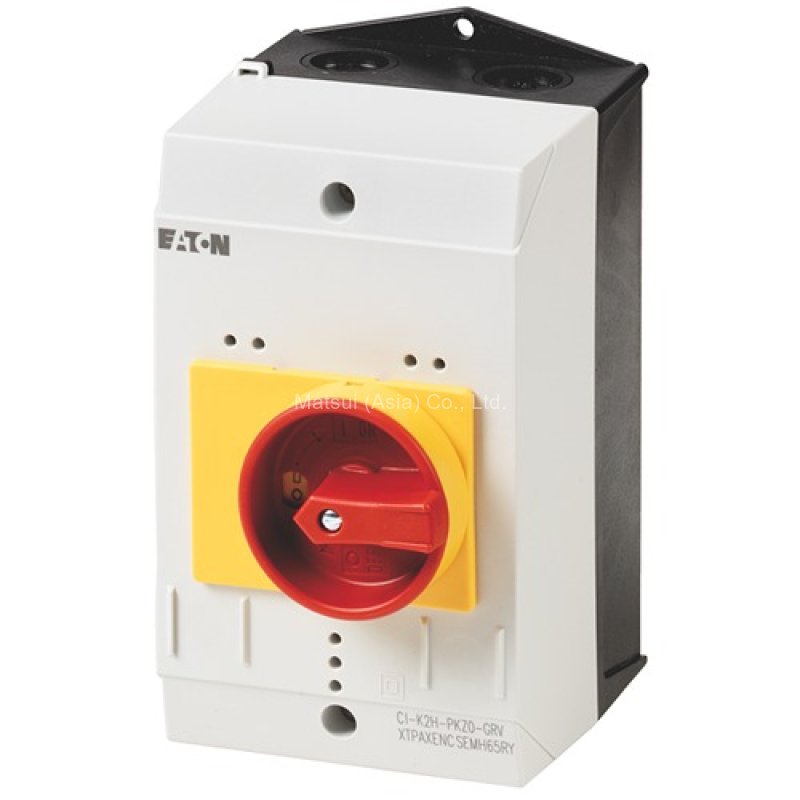

INSULATED ENCLOSURE FOR BREAKER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| INSULATED ENCLOSURE FOR BREAKER CI-K2-PKZ0-GRV (EATON) | ALL | ALL | ||
LARGE ROTATING BLADE / LARGE ROTATING CUTTER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Main Shaft | ||||
| 129600 | LARGE ROTATING BLADE FOR MGL2-50-J (2 PCS/1SET) | MGL2-50-J | ||
| 129601 | LARGE ROTATING BLADE FOR MGL2-100-J (2 PCS/1SET) | MGL2-100-J | ||
| 129602 | LARGE ROTATING BLADE FOR MGL2-100-J-TEP (2 PCS/1SET) | MGL2-100-J-TEP | ||
| 129603 | LARGE ROTATING BLADE FOR MGL2-200-J (2 PCS/1SET) | MGL2-200-J | ||
| 129604 | LARGE ROTATING BLADE FOR MGL2-300-J (2 PCS/1SET) | MGL2-300-J | ||
LIMIT SWITCH |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| LIMIT SWITCH SHL-Q2155 (OMRON) | AC125~480V , DC8~250V | MGL2-300-J | ||
| LIMIT SWITCH SHL-D55 (250VAC/250VDC) (OMRON) | AC125~480V , DC8~250V | MGL2-300-J | ||
| LIMIT SWITCH ZE-N22-2 (480VAC/250VDC) (OMRON) | AC125~480V , DC8~250V | MGL2-100-TPE-J | ||
| LIMIT SWITCH D4C-1201 (AC250VAC / 30VDC) (OMRON) | AC125~480V , DC8~250V | MGL2-50~200-J | ||
RECEIVE BOX (WITH HANDLE) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Setting under camber | ||||
| 129631 | RECEIVING BOX FOR MGL2-50-J | MGL2-50-J | ||
| 129632 | RECEIVING BOX FOR MGL2-100-J, MGL2-100-TPE-J | MGL2-100-J | ||
| 129632 | RECEIVING BOX FOR MGL2-100-J, MGL2-100-TPE-J | MGL2-100-TPE-J | ||
| 129633 | RECEIVING BOX FOR MGL2-200-J | MGL2-200-J | ||
| 129634 | RECEIVING BOX FOR MGL2-300-J | MGL2-300-J | ||
SCRAPER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Camber | ||||
| 129615 | SCRAPER (4 x 4) FOR MGL2-50-J | MGL2-50-J | ||
| 129616 | SCRAPER (4 x 5) FOR MGL2-100-J | MGL2-100-J | ||
| 129617 | SCRAPER (5 x 5) FOR MGL2-100-J | MGL2-100-J | ||
| 129618 | SCRAPER (5 x 6) FOR MGL2-200-J (3 PCS/1SET) | MGL2-200-J | ||
| 129619 | SCRAPER (5 x 7) FOR MGL2-300-J (3 PCS/1SET) | MGL2-300-J | ||
SMALL ROTATING CUTTER / SMALL ROTATING BLADE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Main Shaft | ||||
| 129591 | ROTATING CUTTER (4 × 5S) FOR MGL2-50-J (3 PCS/1SET) | MGL2-50-J | ||
| 129592 | ROTATING CUTTER (4 × 5) FOR MGL2-100-J (3 PCS/1SET) | MGL2-100-J | ||
| 129593 | ROTATING CUTTER (5 × 5) FOR MGL2-100-J (3 PCS/1SET) | MGL2-100-J | ||
| 129594 | ROTATING CUTTER (4 × 5) FOR MGL2-100-J-TEP (3 PCS/1SET) | MGL2-100-J-TEP | ||
| 129595 | ROTATING CUTTER (5 × 5) FOR MGL2-100-J-TEP (3 PCS/1SET) | MGL2-100-J-TEP | ||
| 129596 | ROTATING CUTTER (5 × 6) FOR MGL2-200-J (3 PCS/1SET) | MGL2-200-J | ||
| 129597 | ROTATING CUTTER (6 × 7) FOR MGL2-300-J (3 PCS/1SET) | MGL2-300-J | ||
SPLASH PREVENT CURTION |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Feed Hopper | ||||
| 129570 | SPLASH PREVENT CURTION 291 × 225 x t0.35, Tarpaulin White FOR SMGL-100-J, MGL2-100-J | MGL2-100-J | ||
| 129571 | SPLASH PREVENT CURTION 370 × 321 x t0.35, Tarpaulin White FOR SMGL-200-J, MGL2-200-J | MGL2-200-J | ||
| 129572 | SPLASH PREVENT CURTION : COTTER PIN 1.6 PIE x 15L (10 PCS/1SET) FOR SMGL-100~300-J, MGL2-50~300-J | MGL2-50~300-J | ||
| 129629 | SPLASH PREVENT CURTION 200 x 189 x t0.28, Trapaulin white FOR MGL2-50-J | MGL2-50-J | ||
| 129630 | SPLASH PREVENT CURTION 480 x 411 x t0.28, Trapaulin white FOR MGL2-300-J | MGL2-300-J | ||

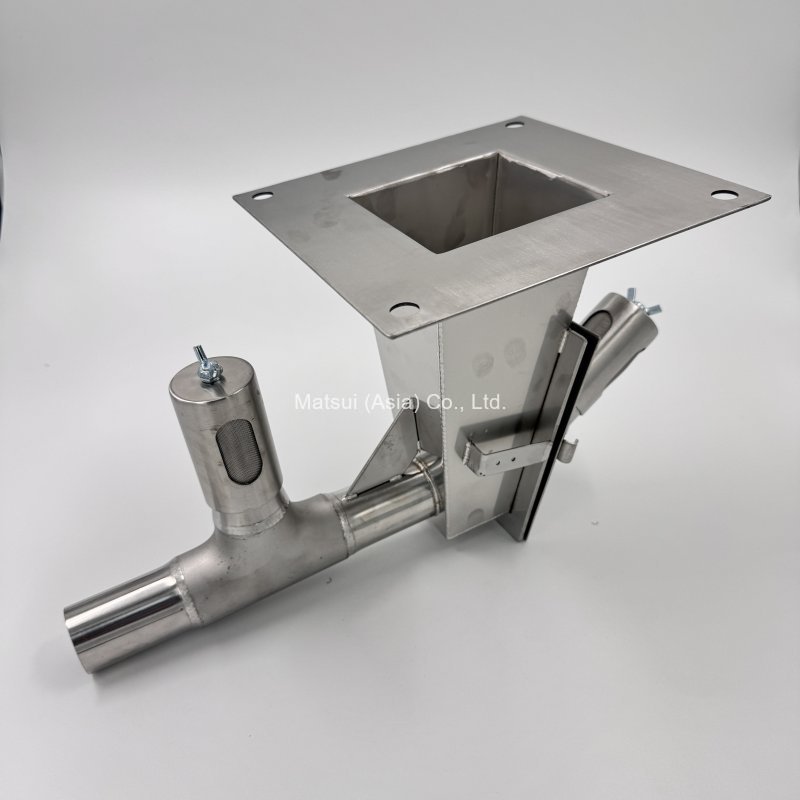

SUCTION BOX (KKB-38-1) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Setting under camber | ||||
| SUCTION BOX KKB-38 FOR MGL2-50-J | MGL2-50-J | |||
| SUCTION BOX KKB-38 FOR MGL2-100-J | MGL2-100-J | |||
| SUCTION BOX KKB-38 FOR MGL2-200-J | MGL2-200-J | |||
| SUCTION BOX KKB-38 FOR MGL2-300-J | MGL2-300-J | |||
SUCTION BOX (SKB-38-1) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Setting under camber | ||||
| 129639 | SUCTION BOX SKB-38 FOR MGL2-50-J | MGL2-50-J | ||
| 129640 | SUCTION BOX SKB-38 FOR MGL2-100-J, MGL2-100-TPE-J | MGL2-100-J | ||
| 129640 | SUCTION BOX SKB-38 FOR MGL2-100-J, MGL2-100-TPE-J | MGL2-100-TPE-J | ||
| 129641 | SUCTION BOX SKB-38 FOR MGL2-200-J | MGL2-200-J | ||
| 129642 | SUCTION BOX SKB-38 FOR MGL2-300-J | MGL2-300-J | ||

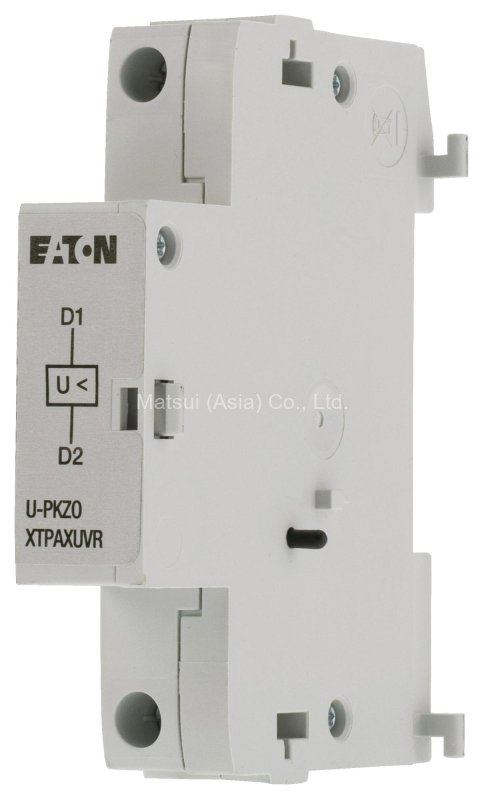

UNDERVOLTAGE TRIP |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| UNDERVOLTAGE PROTECTIVE U-PKZ0 (EATON) FOR SMGL-100~300, MGL2 | ALL | ALL | ||
| UNDERVOLTAGE PROTECTIVE U-PKZ0 (EATON) FOR MGL2 | ALL | ALL | ||
WINDOW (FOR FEED HOPPER) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Feed Hopper | ||||
| 129903 | WINDOW : T5 x 140 x P118-4 x 7 pie (PVC CLEAR) | MGL2-100-TPE-J | ||
| 129904 | WINDOW : T5 x 180 x P158-4 x 6 pie (PVC CLEAR) | MGL2-50-J | ||
| 129905 | WINDOW : T5 x 200 x P178-4 x 7 pie (PVC CLEAR) | MGL2-100, 200, 300-J | ||
