GMC

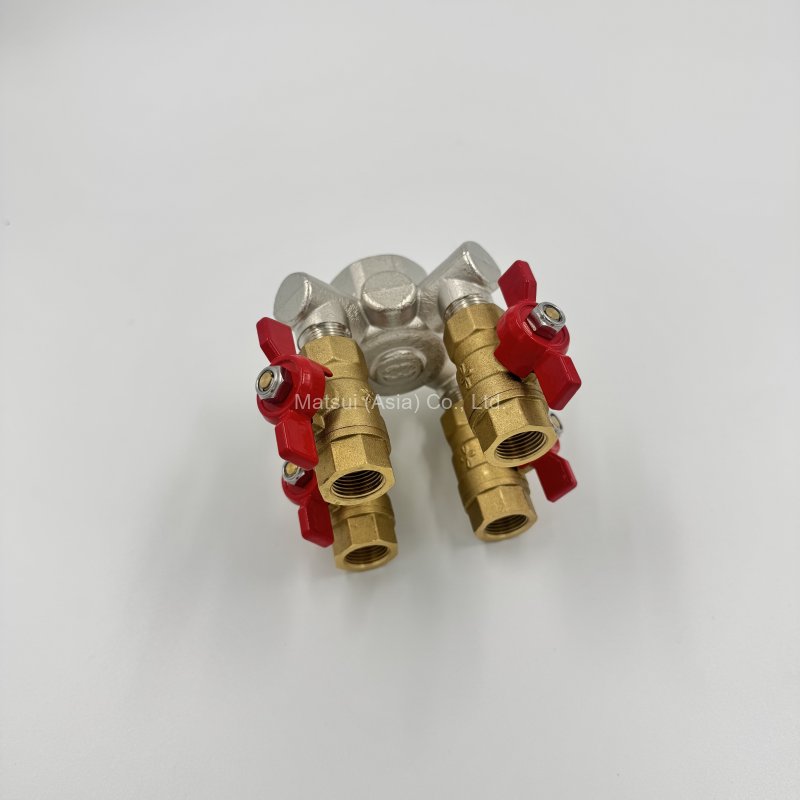

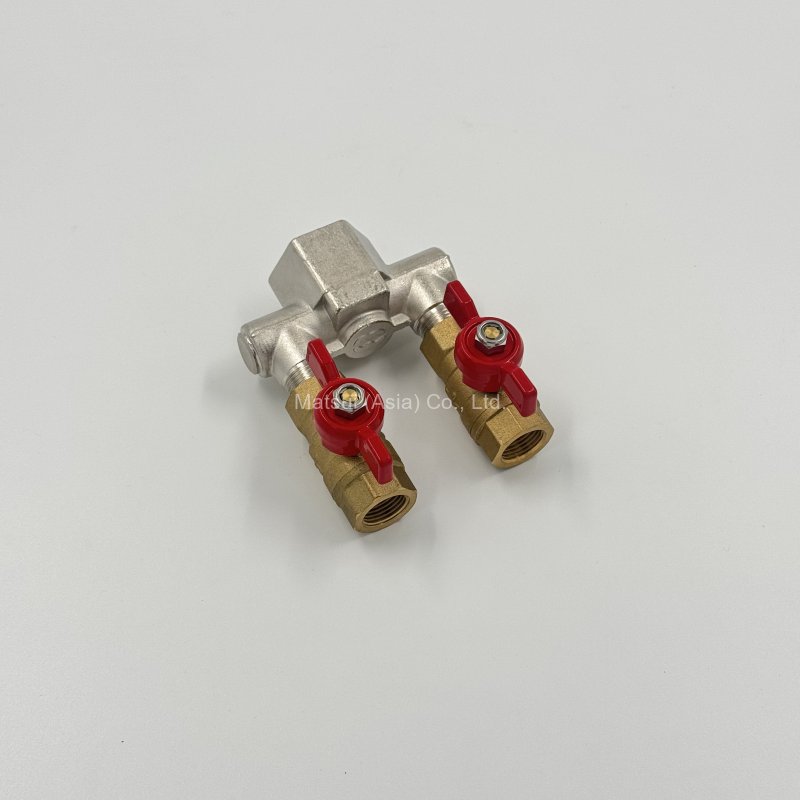

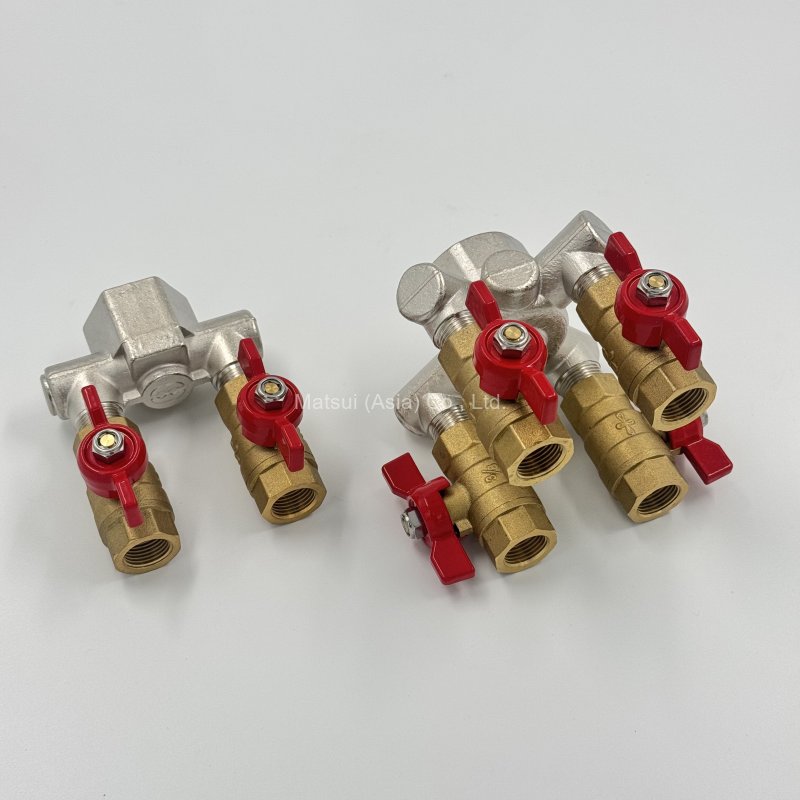

MANI FOLD |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Water - Type | ||||
| 101409 | GATE VALVE 125FH 1 1/2B (40A) BRASS (KITZ) | - | GMC-L/H-300 | |
| 101503 | GATE VALVE 1 1/4B BRASS (KITZ) | - | GMC-L/H-200 | |
| 117179 | MANIFOLD 2 PORT *FOR GMCL, H-25A | - | GMC-L/H-25 | |
| 117182 | MANIFOLD 4 PORT *FOR GMCL, H-55A | - | GMC-L/H-55 | |
| 117183 | MANIFOLD 4 PORT *FOR GMCL, H-88A | - | GMC-L/H-88 | |
| Oil - Type | ||||
| 101409 | GATE VALVE 125FH 1 1/2B (40A) BRASS (KITZ) | - | GMC-A-300 | |
| 101503 | GATE VALVE 1 1/4B BRASS (KITZ) | - | GMC-A-200 | |
| 117410 | MANIFOLD 2 PORT *FOR GMCA-25A | - | GMC-A-25 | |
| 117416 | MANIFOLD 4 PORT *FOR GMCA-55A | - | GMC-A-55 | |
| 117421 | MANIFOLD 4 PORT *FOR GMCA-88A | - | GMC-A-88 | |
ACCESSORY PARTS |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

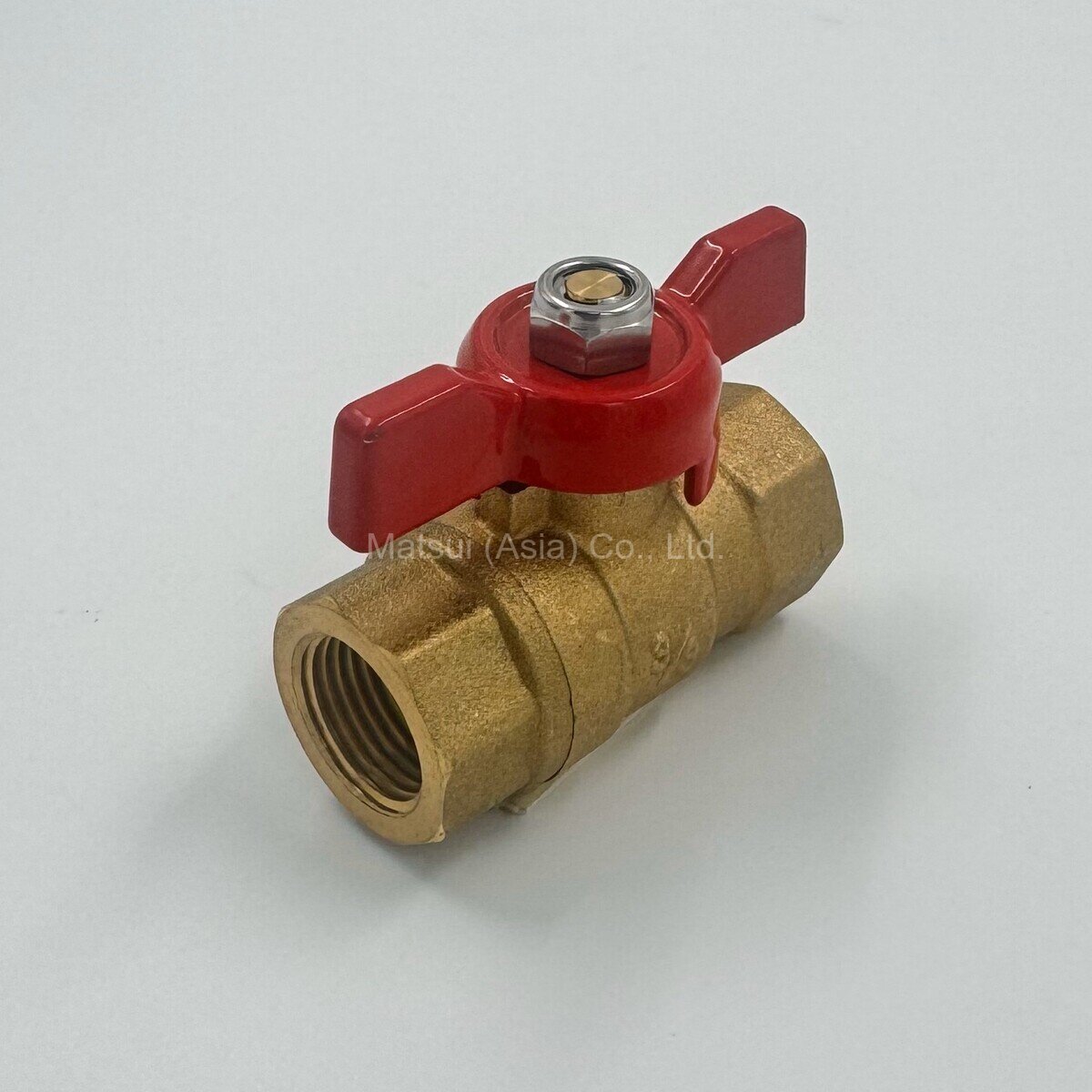

| 101325 | BALL VALVE 3/8B (10A) NR (ITALY) (SILVER COLOR) | - | GMC-L/H-25~88 | |
| 116103 | THERMOSTAT CAP (CERAMIC) DWG.B17441_1 | - | All | |
| 119998 | MANIFOLD 4 PORT 3/4B x 3/8B (CASTING DWG.153719) DWG.153722 *IMPORT MJ | - | GMC-L/H/A-55/88 | |
| 120099 | MANIFOLD 2 PORT 1/2B x 3/8B (CASTING DWG.153712) DWG.153715 *IMPORT MJ | - | GMC-L/H/A-25 | |
| 123597 | BALL VALVE SENA 3/8B (10A) BRASS (KYOEI) | - | GMC-A-25~88 | |

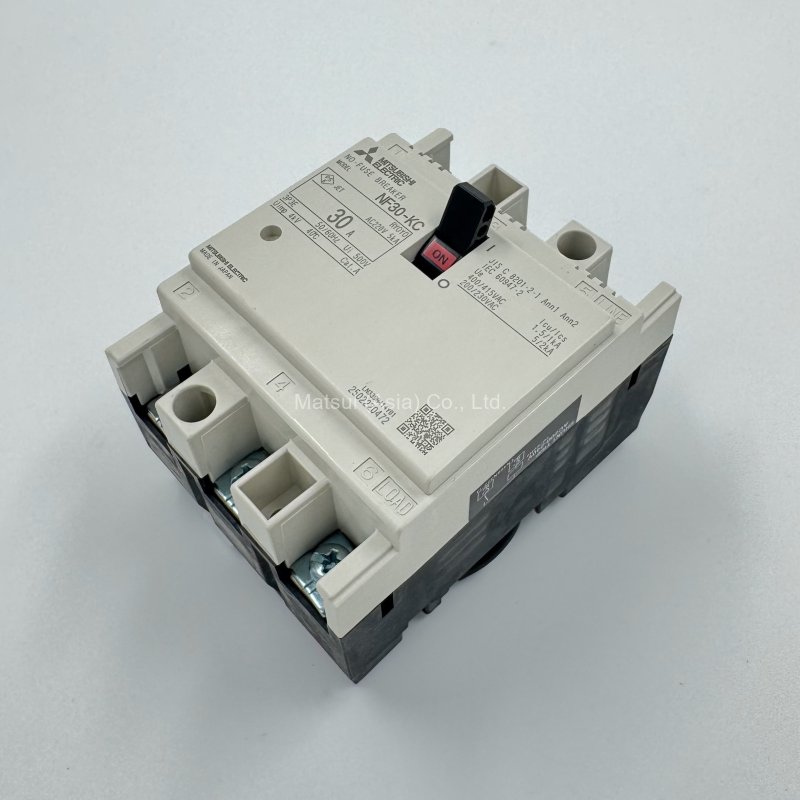

CIRCUIT BREAKER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 102229 | CIRCUIT BREAKER NF30KC, 3P, 15AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-25T | |
| 102229 | CIRCUIT BREAKER NF30KC, 3P, 15AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-55T | |
| 102230 | CIRCUIT BREAKER NF30KC, 3P, 30AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-55T | |
| 102231 | CIRCUIT BREAKER NF50KC, 3P, 40AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-88T | |
| 102242 | CIRCUIT BREAKER NF30KC, 3P, 10AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-25T | |
| 102243 | CIRCUIT BREAKER NF30KC, 3P, 20AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-88T | |
| 107666 | CIRCUIT BREAKER NF125CV, 3P, 75AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-350T | |
| 107671 | CIRCUIT BREAKER NF63CV, 3P, 40AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-350T | |
| 118931 | CIRCUIT BREAKER NF63CV, 3P, 30AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-200T | |
| 119757 | CIRCUIT BREAKER NF63CV,3P,50AT+SHT (AC200V)(MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-200T | |

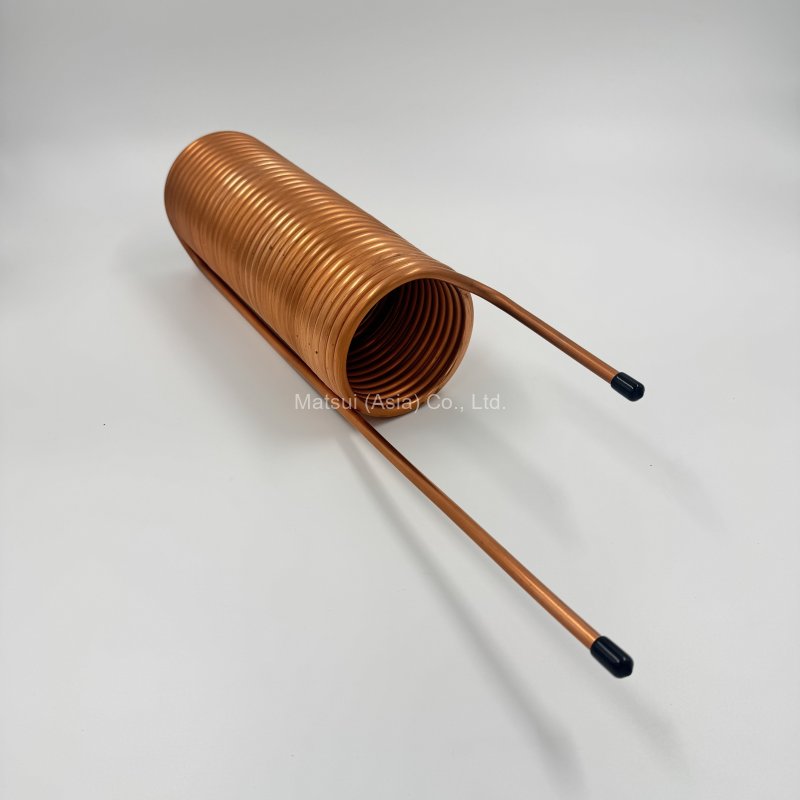

COOLING PIPE (OIL - TYPE) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 101134 | RING JOINT 68x5/16x1/4PT (BRASS) | - | ||

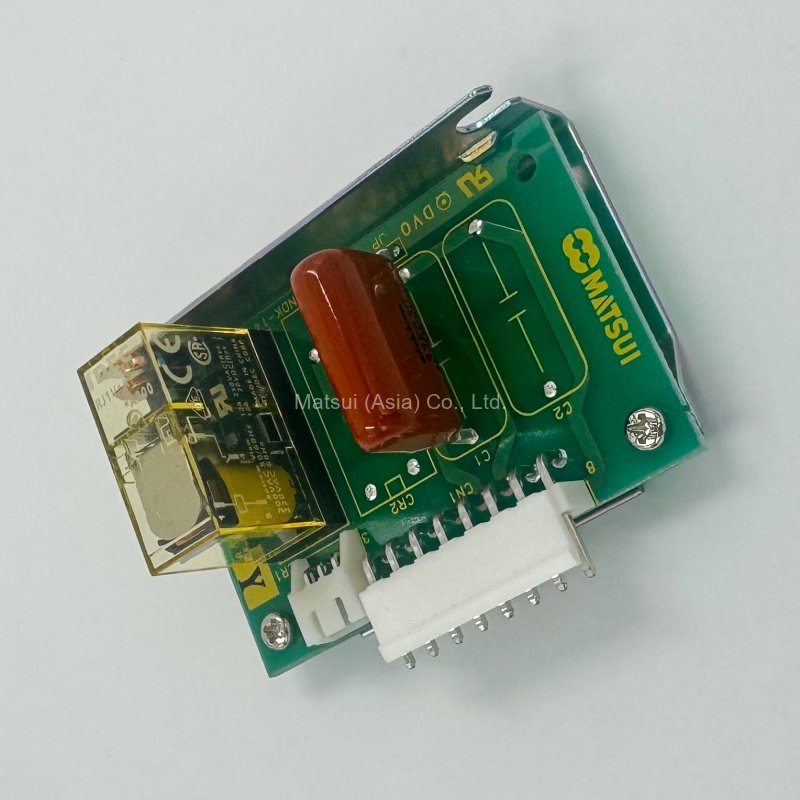

DETECTION CIRCUIT BOARD |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 102235 | DETECTION CIRCUIT BOARD HY-2 | ALL | ALL | |
| 113408 | DETECTION CIRCUIT BOARD HY-2N | ALL | ALL | |

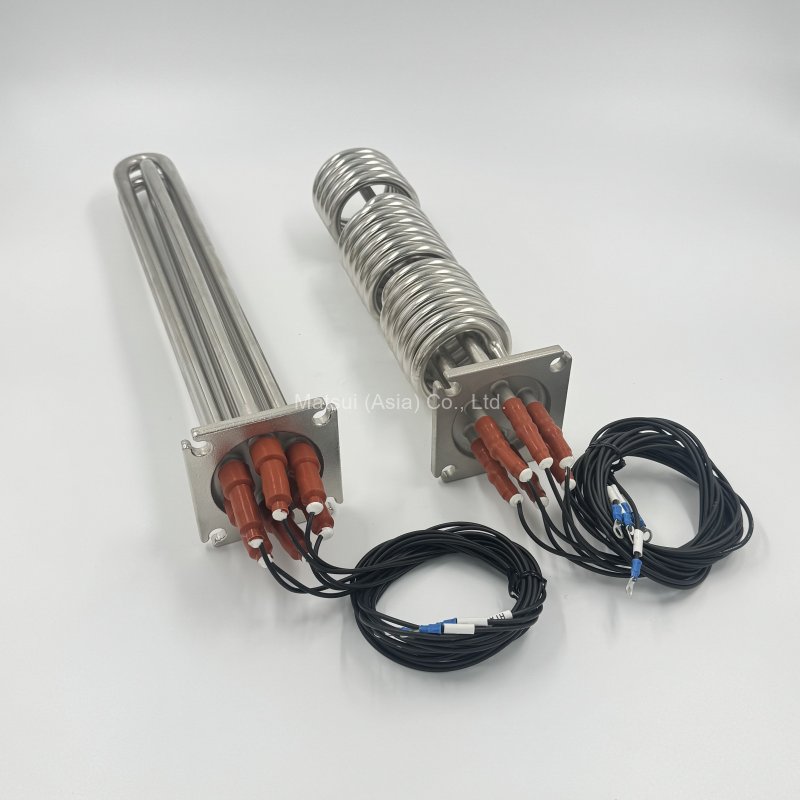

HEATER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Water - Type | ||||
| 100492 | HEATER (WATER) 3KW AC200/380V (GMCL,H-25) | AC200/380V | GMC-L/H-25 | |

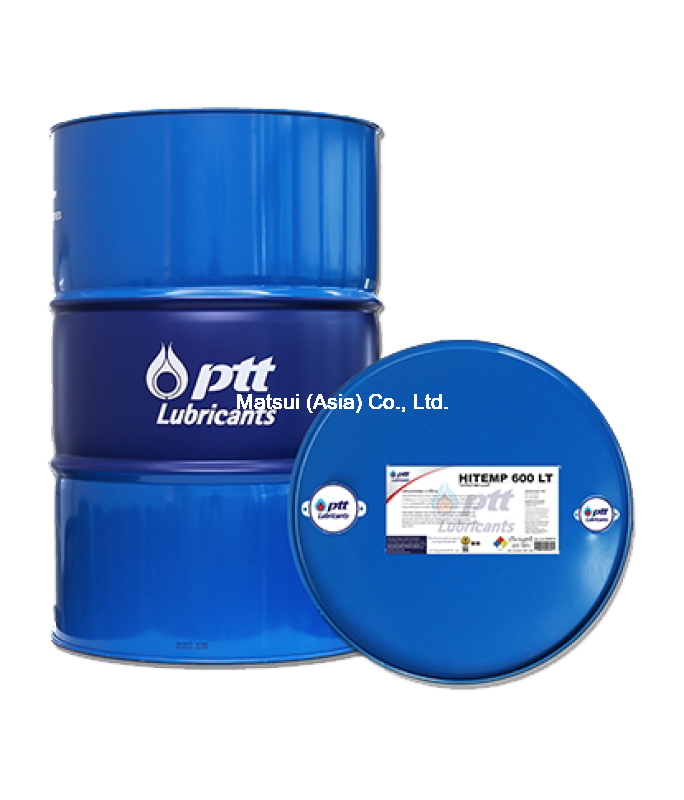

HIGH TEMP. OIL |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 111394 | PTT HITEMP OIL : 600 (200LIT) for GMC (SDS-08002-PUR) | - | GMC-A-25~350 | |

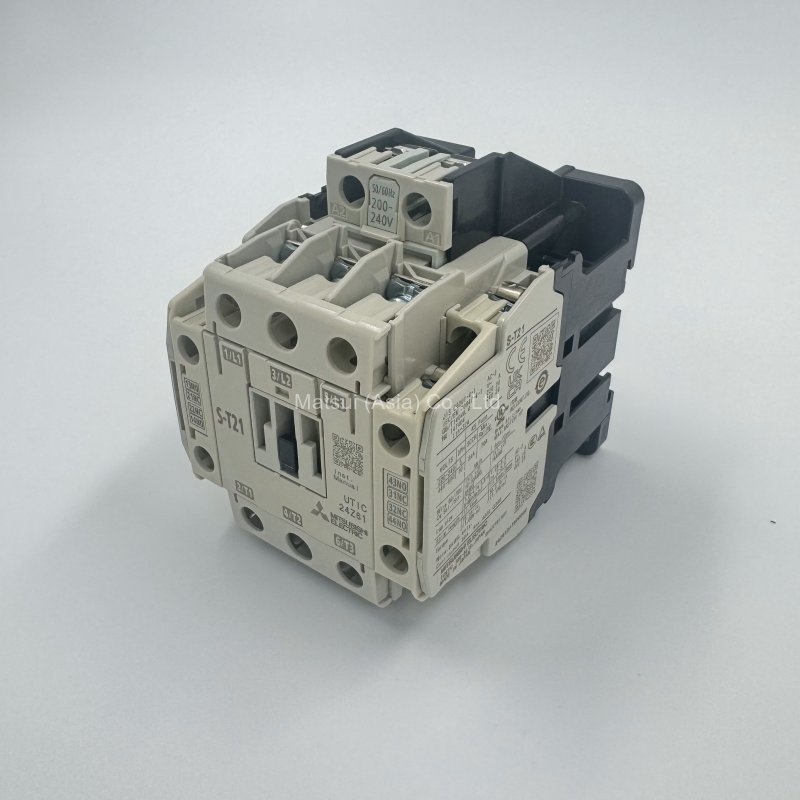

MACNETIC SWITCH |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 102201 | MAGNETIC CONTACTOR S-N35 AC220V (MITSUBISHI) | AC200~220V( 50-60Hz ) | GMCL,H-200 | |
| 102201 | MAGNETIC CONTACTOR S-N35 AC220V (MITSUBISHI) | AC200~220V( 50-60Hz ) | GMCA-200 | |
| 102201 | MAGNETIC CONTACTOR S-N35 AC220V (MITSUBISHI) | AC200~220V( 50-60Hz ) | ||
| 103809 | MAGNETIC CONTACTOR S-N50 AC220V (MITSUBISHI) | AC200~220V( 50-60Hz ) | GMCL,H-350 | |
| 107873 | MAGNETIC CONTACTOR S-T12 AC200V (MITSUBISHI) | AC200~220V( 50-60Hz ) | GMCL,H,A-25 | |
| 107873 | MAGNETIC CONTACTOR S-T12 AC200V (MITSUBISHI) | AC380~415V( 50-60Hz ) | GMCL,H,A-25 | |
| 107878 | MAGNETIC CONTACTOR S-T21 AC200V (MITSUBISHI) | AC200~220V( 50-60Hz ) | GMCL,H,A-55 | |
| 107878 | MAGNETIC CONTACTOR S-T21 AC200V (MITSUBISHI) | AC200~220V( 50-60Hz ) | GMCA-350 | |
| 107878 | MAGNETIC CONTACTOR S-T21 AC200V (MITSUBISHI) | AC380~415V( 50-60Hz ) | GMCL,H,A-55 , 88 | |
| 107878 | MAGNETIC CONTACTOR S-T21 AC200V (MITSUBISHI) | AC380~415V( 50-60Hz ) | GMCA-350 | |
| 107880 | MAGNETIC CONTACTOR S-T25 AC200V (MITSUBISHI) | AC200~220V( 50-60Hz ) | GMCL,H,A-88 | |
| 107880 | MAGNETIC CONTACTOR S-T25 AC200V (MITSUBISHI) | AC380~415V( 50-60Hz ) | GMCL,H-200,350 | |
| 107880 | MAGNETIC CONTACTOR S-T25 AC200V (MITSUBISHI) | AC380~415V( 50-60Hz ) | GMCA-200 | |
| 107880 | MAGNETIC CONTACTOR S-T25 AC200V (MITSUBISHI) | AC380~415V( 50-60Hz ) | ||

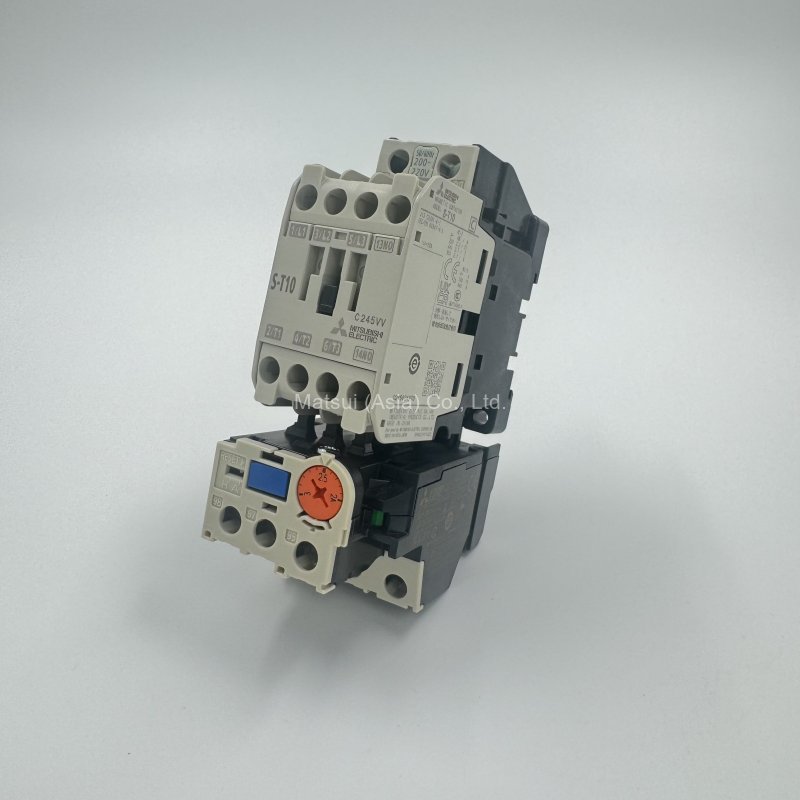

MAGNETIC CONTACTOR + THERMAL RELAY |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 101653 | MOTOR STARTER MSO-T12, 2-3A, AC220V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-25T | |
| 101653 | MOTOR STARTER MSO-T12, 2-3A, AC220V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-55T | |
| 103794 | MOTOR STARTER MSO-T12, 1-1.6A, AC100V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-25T | |
| 115969 | MOTOR STARTER MSO-T21, 12-18A, AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-350T | |
| 116050 | MOTOR STARTER MSO-T12, 7-11A, AC220V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-200T | |
| 116051 | MOTOR STARTER MSO-T12, 2.8-4.4A, AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H,A-55T | |
| 116051 | MOTOR STARTER MSO-T12, 2.8-4.4A, AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-88T | |
| 116178 | MOTOR STARTER MSO-T12, 4-6A, AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-200T | |
| 116179 | MOTOR STARTER MSO-T21, 7-11A, AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCL,H,A-350T | |

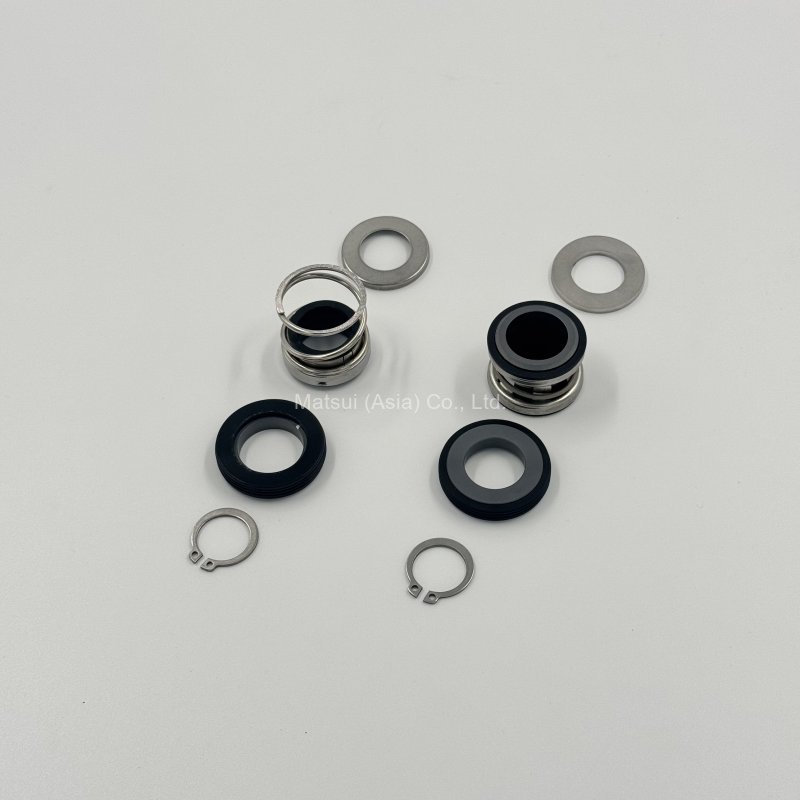

MECHANICAL SEAL (FOR PUMP) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Water - Type | ||||
| 100457 | MECHANICAL SEAL T-2100-25SICP + SICP | - | GMC-L/H-200/350 | |
| 100504 | MECHANICAL SEAL 2100-15mm | - | GMC-L/H-25 | |
| 100505 | MECHANICAL SEAL 2100-18mm | - | GMC-L/H-55,88 | |

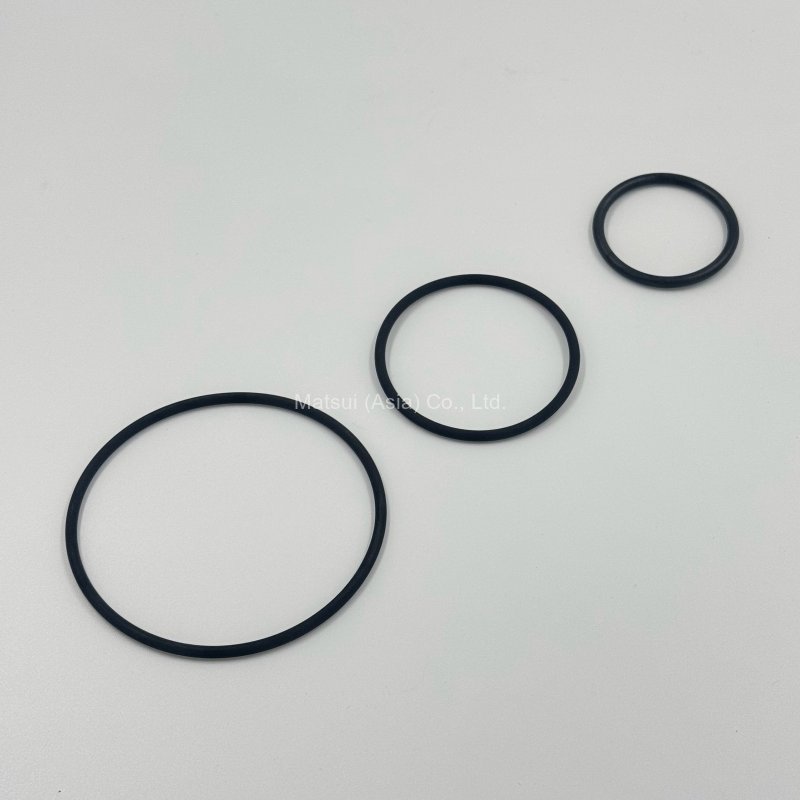

O-RING |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For heater box | ||||
| 100351 | O-RING G-135xT3.1 (VITON) | - | GMC-H/A-55/88 | |
| 100351 | O-RING G-135xT3.1 (VITON) | - | GMC-A-200/350 | |
| 100461 | O-RING G-80xT3.1 (VITON) | - | GMC-L/A-25 | |
| 100461 | O-RING G-80xT3.1 (VITON) | - | GMC-L/H/A-55/88 | |
| 100461 | O-RING G-80xT3.1 (VITON) | - | GMC-L/H-200/350 | |
| 103088 | O-RING G-185xT5.7 (VITON) | - | GMC-A-200/350 | |
| For float switch box | ||||
| 100405 | O-RING G-50xT3.1 (VITON) | - | GMC-L/H/A-25~350 | |
| For pump cover | ||||
| 100461 | O-RING G-80xT3.1 (VITON) | - | GMC-L-55 | |
| 103222 | O-RING G-90xT3.1 (VITON) | - | GMC-L/H/A-55/88 | |

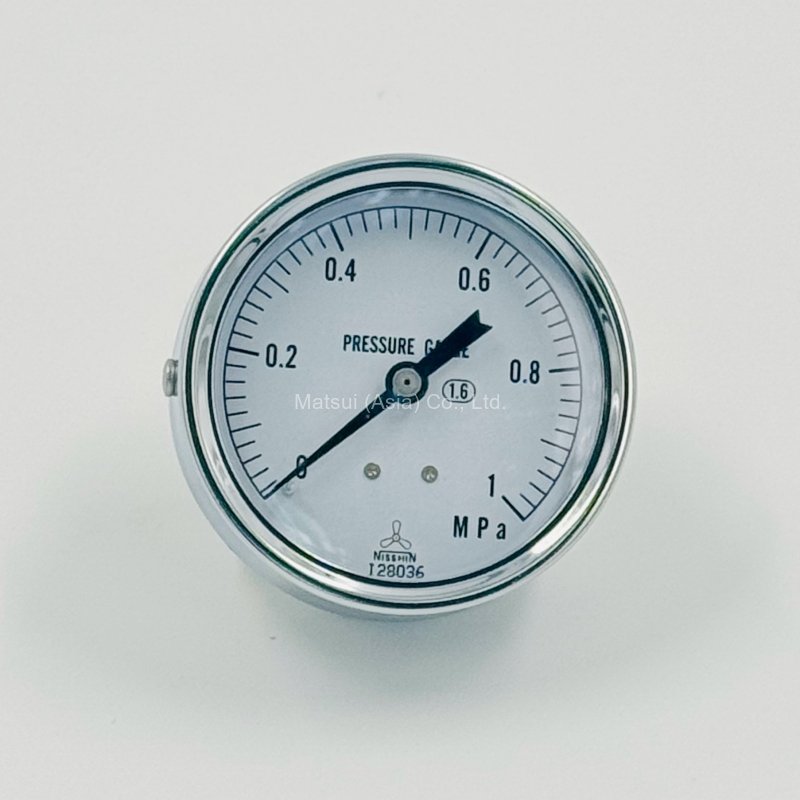

PRESSURE GAUGE (FOR PUMP) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 100490 | PRESSURE GAUGE 50DAM-N02N-G2 0-1MPA ROHS | - | GMC-L/H/A-25~55 | |
| 100491 | PRESSURE GAUGE 60DAM-N02N-G2 0-1MPA ROHS | - | GMC-L/H/A-88~350 | |

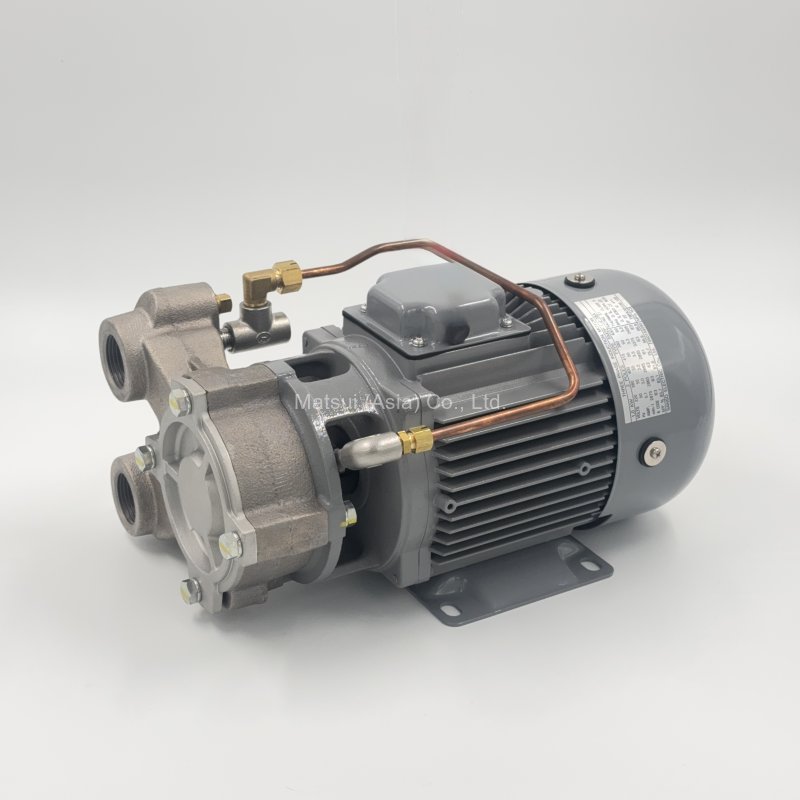

PUMP FEED |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Water - Type | ||||
| 100443 | PUMP 2.2kW AC220~415V (50Hz), AC380/400V (60Hz) (GMCL/H-200) *SANSO | AC220~415V,50/60Hz | GMC-L/H-200 | |
| 100444 | HEATER (WATER) 12kW AC200/380V DWG.152750 (GMCL,H-200) | AC200/380V | GMC-L/H-200 | |
| 100485 | PUMP 0.3KW AC220~415V (50Hz), AC380/400V (60Hz) DWG.150842 (GMCL/H-25) *SANSO | AC220~415V,50/60Hz | GMC-L/H-25 | |
| 100486 | PUMP 0.6KW AC220~415V (50Hz), AC380/400V (60Hz) DWG.150857 (GMCL/H-55) *SANSO | AC220~415V,50/60Hz | GMC-L/H-55 | |
| 100487 | PUMP 1.0KW AC220~415V (50Hz), AC380/400V (60Hz) DWG.150870 (GMCL/H-88) *SANSO | AC220~415V,50/60Hz | GMC-L/H-88 | |
| 100493 | HEATER (WATER) 5kW AC200/380V (GMCL,H-55) | AC200/380V | GMC-L/H-55 | |
| 100494 | HEATER (WATER) 8kW AC200/380V (GMCL,H-88) | AC200/380V | GMC-L/H-88 | |
| 103169 | PUMP 3.7kW AC220~415V (50Hz), AC380/400V (60Hz) (GMCL/H-350) *SANSO | AC220~415V,50/60Hz | GMC-L/H-350 | |
| 103170 | HEATER (WATER) 14kW AC200/380V DWG.152750 (GMCL,H-350) | AC200/380V | GMC-L/H-350 | |
| 109057 | HEATER (WATER) 12kW AC415V/50HZ (GMCL,H-200) | AC415V | ||
| 110392 | HEATER (WATER) 3kW AC415V/50HZ (GMCL,H-25) | AC415V | ||
| 110393 | HEATER (WATER) 5kW AC415V/50Hz (GMCL,H-55) | AC415V | ||
| 110394 | HEATER (WATER) 8kW AC415V/50Hz (GMCL,H-88) | AC415V | ||
| 112815 | HEATER (WATER) 14kW AC415V/50Hz (GMCL,H-350) | AC415V | ||
| 116595 | PUMP 2.2kW AC200V (50Hz) (GMCL/H-200) *SANSO | AC200/220V, 50/60Hz | ||
| 116597 | PUMP 3.7kW AC200V (50Hz) (GMCL/H-350) *SANSO | AC200/220V, 50/60Hz | ||
| 117013 | PUMP 0.3kW AC200V/50Hz, AC200/220V/60Hz (GMCL/H-25) *SANSO | AC200/220V, 50/60Hz | ||
| 117015 | PUMP 0.6kW AC200V/50Hz, AC200/220V/60Hz (GMCL/H-55) *SANSO | AC200/220V, 50/60Hz | ||
| 117017 | PUMP 1.0kW AC200V/50Hz, AC200/220V/60Hz (GMCL/H-88) *SANSO | AC200/220V, 50/60Hz | ||
| Oil - Type | ||||
| 100488 | PUMP 0.3KW AC220~415V (50Hz), AC380/400V (60Hz) DWG.150985 (GMCA-25) *SANSO | AC220~415V, 50/60Hz | GMC-A-25 | |
| 100489 | PUMP 1.0KW AC220~415V (50Hz), AC380/400V (60Hz) DWG.150987 (GMCA-88) *SANSO | AC220~415V, 50/60Hz | GMC-A-88 | |
| 100495 | HEATER (OIL) 3kW AC200/380V (GMCA-25) | AC200/380V | GMC-A-25 | |
| 100496 | HEATER (OIL) 5kW AC200/380V (GMCA-55) | AC200/380V | GMC-A-55 | |
| 100497 | HEATER (OIL) 8kW AC200/380V (GMCA-88) | AC200/380V | GMC-A-88 | |
| 103086 | PUMP 3.7kW AC220~415V (50Hz), AC380/400V (60Hz) (GMCA-350) *SANSO | AC220~415V, 50/60Hz | GMC-A-350 | |
| 103245 | PUMP 0.6KW AC220~415V (50Hz), AC380/400V (60Hz) DWG.150986 (GMCA-55) *SANSO | AC220~415V, 50/60Hz | GMC-A-55 | |
| 104573 | HEATER No.1 (OIL) 5.6kW AC200/380V DWG.152750 (GMCA-350) | AC200/380V | GMC-A-350 | |
| 104634 | HEATER No.2 (OIL) 8.4kW AC200/380V DWG.152750 (GMCA-350) | |||
| 110395 | HEATER (OIL) 3kW AC415V 50Hz (GMCA-25) | AC415V | ||
| 110396 | HEATER (OIL) 5kW AC415V 50Hz (GMCA-55) | AC415V | ||
| 110397 | HEATER (OIL) 8kW AC415V 50Hz (GMCA-88) | AC415V | ||
| 112072 | HEATER (OIL) 12kW AC200/380V DWG.152750 (GMCA-200) | AC200/380V | GMC-A-200 | |
| 113997 | PUMP 2.2kW AC220~415V (50Hz), AC380/400V (60Hz) (GMCA-200) *SANSO | AC220~415V, 50/60Hz | GMC-A-200 | |
| 116596 | PUMP 2.2kW AC200V (50Hz) (GMCA-200) *SANSO | AC200/220V, 50/60Hz | ||
| 116598 | PUMP 3.7kW AC200V (50Hz) (GMCA-350) *SANSO | AC200/220V, 50/60Hz | ||
| 117014 | PUMP 0.3kW AC200V/50Hz, AC200/220V/60Hz (GMCA-25) *SANSO | AC200/220V, 50/60Hz | ||
| 117016 | PUMP 0.6kW AC200V/50Hz, AC200/220V/60Hz (GMCA-55) *SANSO | AC200/220V, 50/60Hz | ||
| 117018 | PUMP 1.0kW AC200V/50Hz, AC200/220V/60Hz (GMCA-88) *SANSO | AC200/220V, 50/60Hz | ||
| 119652 | HEATER (OIL) 12kW AC415V/50HZ DWG. SA2-10165 (GMCA-200) | AC415V | ||

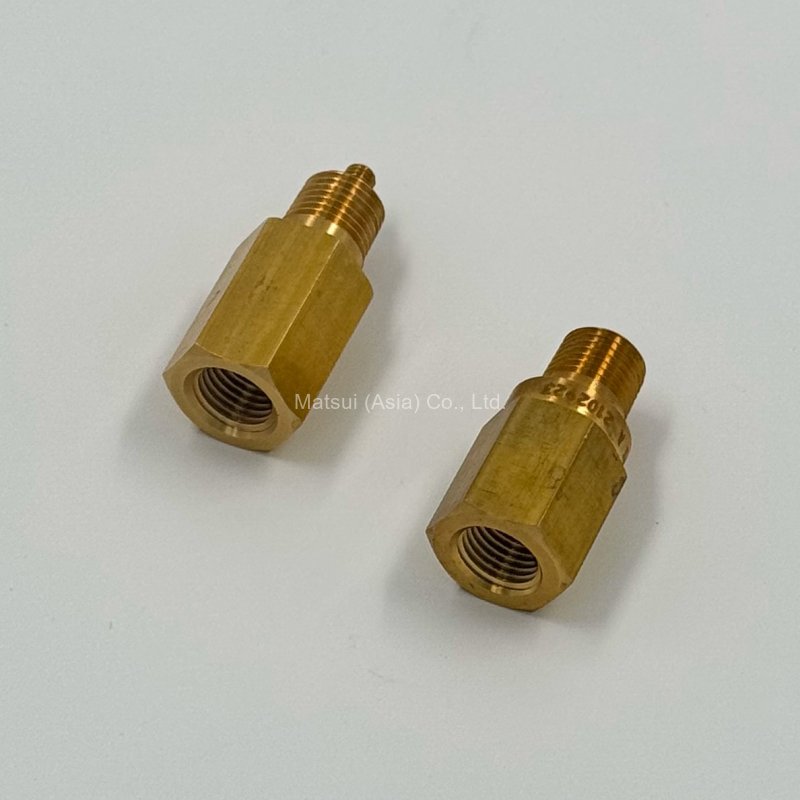

RELIEF VALVE (FOR HEATER TANK) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 100500 | RELIEF VALVE 1/4B x 0.27~0.30Mpa | - | GMC-H-25/55/88 | |
| 100501 | RELIEF VALVE 1/4B x 0.65~0.70Mpa | - | ||
| 100540 | SAFETY VALVE 1/4B x 0.97Mpa (RLB2V-970) | - | GMC-H-200/300 | |
| 100541 | SAFETY VALVE 1/4B x 0.50Mpa (RLB2V-500) | - | GMC-H-200/300 | |

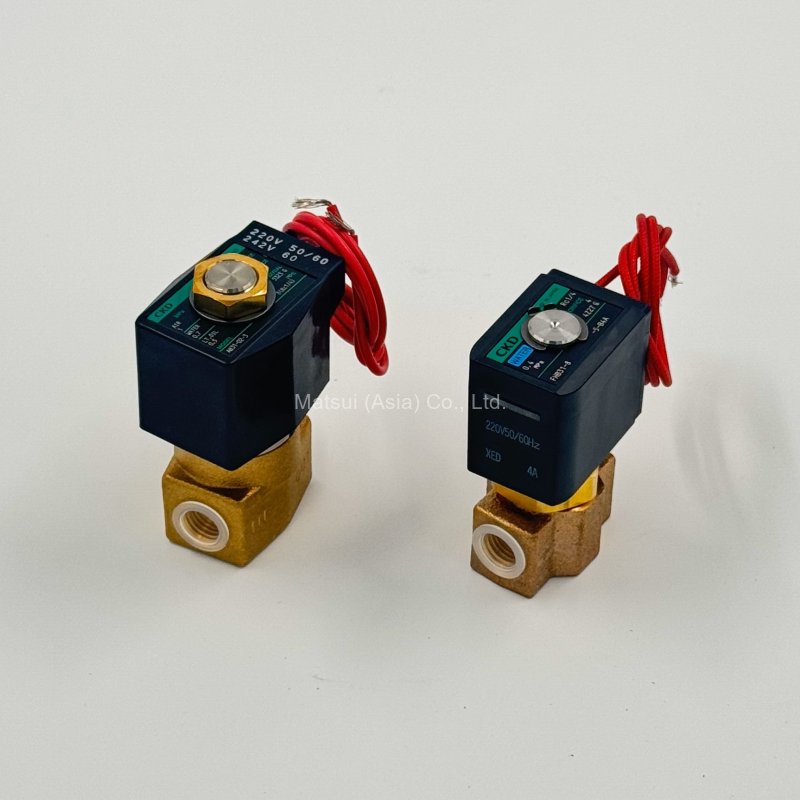

SOLENOID VALVE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 105547 | SOLENOID FHB41-10-6-B4A (AC220V) (CKD) | AC200V , AC110V | GMC-A-200/300 | |
| 105641 | SOLENOID VALVE AD11-10A-B4A (AC220V) (CKD) | AC200V , AC110V | GMC-L-200/300 | |
| 106207 | SOLENOID FHB31-8-3-B4A (AC220V) (CKD) | AC200V , AC110V | GMC-H/A-25 | |
| 106247 | SOLENOID VALVE AB31-02-4 (AC220V) (CKD) | AC200V , AC110V | GMC-L-55/88 | |
| 106435 | SOLENOID VALVE AB31-02-3 (AC220V) (CKD) | AC200V , AC110V | GMC-L-25 | |
| 106488 | SOLENOID FHB31-8-5-B4A (AC220V) (CKD) | AC200V , AC110V | GMC-H/A-55/88 | |
| 106488 | SOLENOID FHB31-8-5-B4A (AC220V) (CKD) | AC200V , AC110V | GMC-H-200/300 | |

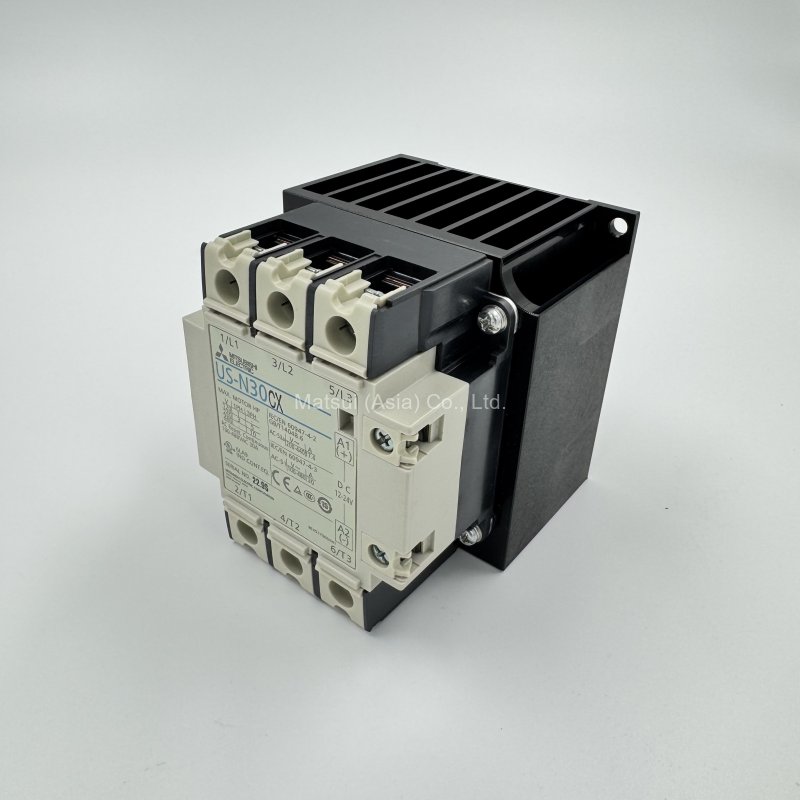

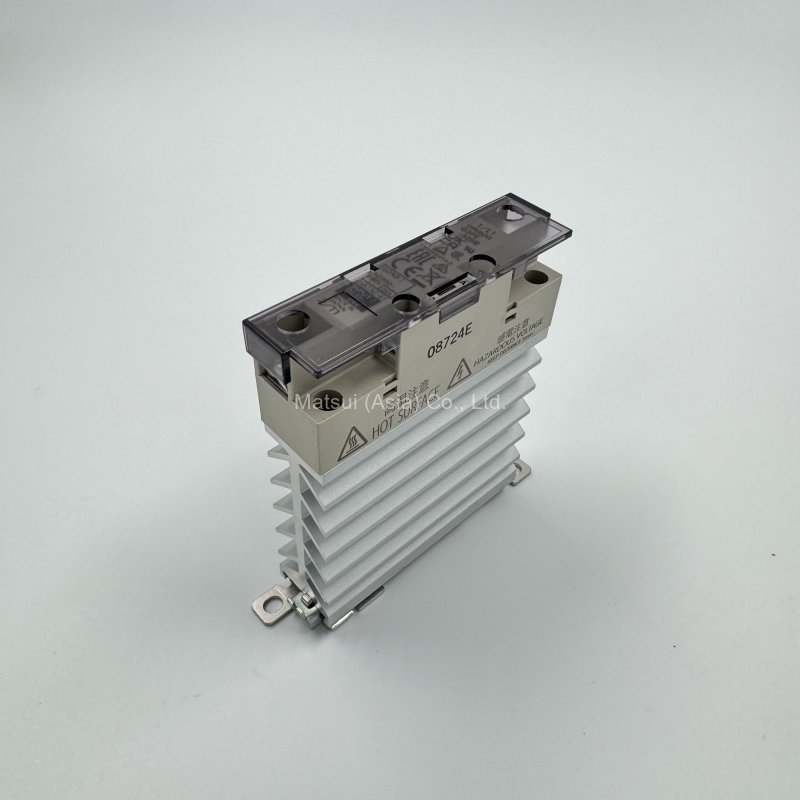

SOLID STATE RELAY |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 102274 | SOLID STATE RELAY G3PE-215B-2 (DC12-24V) (OMRON) | AC200~220V ( 50-60Hz ) | GMCL,H,A-25 | |
| 105586 | SOLID STATE RELAY US-N20CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC380~415V ( 50-60Hz ) | GMCA-350 | |
| 106119 | SOLID STATE RELAY G3PE-245B (DC12-24V) (OMRON) | AC200~220V ( 50-60Hz ) | GMCL,H,A-88 | |
| 108386 | SOLID STATE RELAY G3PE-525B (DC12-24V) (OMRON) | AC380~415V ( 50-60Hz ) | GMCL,H,A-25 | |
| 108386 | SOLID STATE RELAY G3PE-525B (DC12-24V) (OMRON) | AC380~415V ( 50-60Hz ) | GMCL,H,A-55 | |
| 116329 | SOLID STATE RELAY US-N50CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCL,H-200 , 350 | |
| 116329 | SOLID STATE RELAY US-N50CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC200~220V ( 50-60Hz ) | GMCA-200 | |
| 116329 | SOLID STATE RELAY US-N50CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC200~220V ( 50-60Hz ) | ||
| 119714 | SOLID STATE RELAY G3PE-535B (DC12-24V) (OMRON) | AC380~415V ( 50-60Hz ) | GMCL,H,A-88 | |

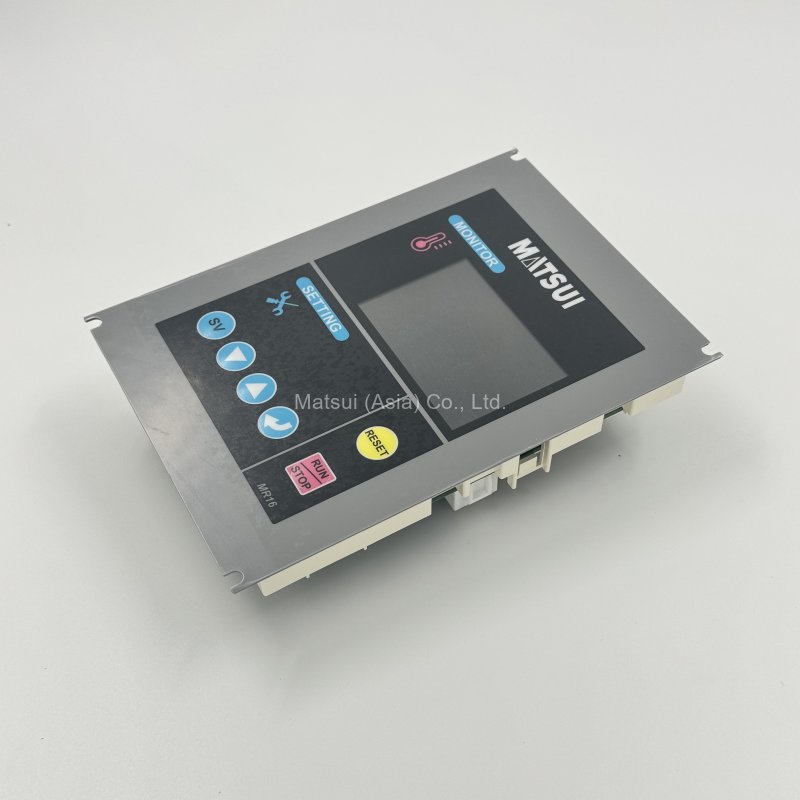

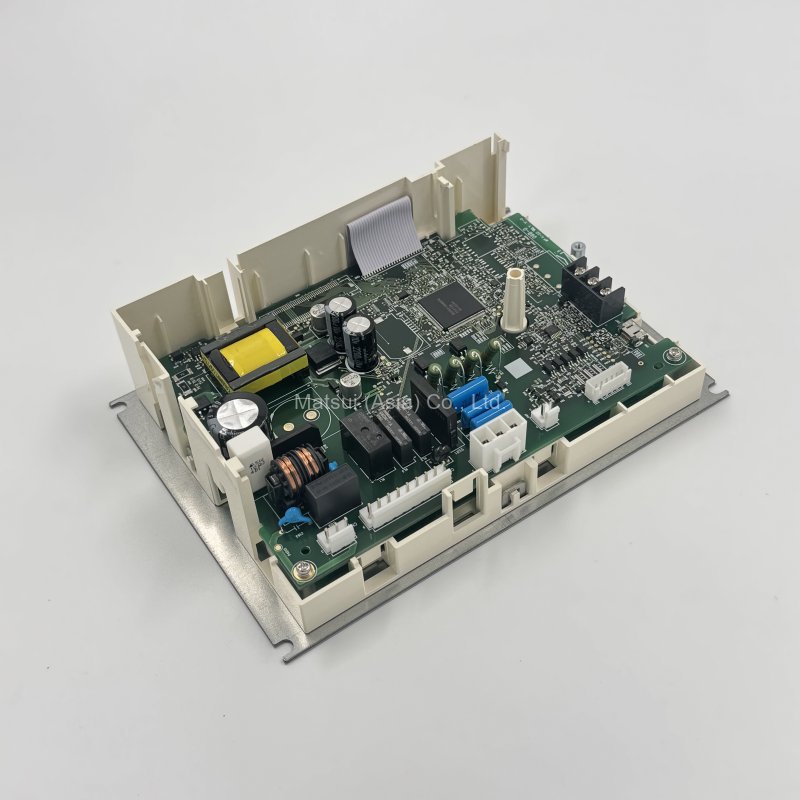

TEMP. CONTROLLER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 121958 | CHANGE CONTROL BOARD MR-90N-A to MR-16-AN (GMC-25, 55 AC200~415V 50/60Hz)(L/H) | AC200~415V (50/60Hz) | (GMC-25, 55(L/H) | |
| 121959 | CHANGE CONTROL BOARD MR-90N-A to MR-16-AN (GMC-88 AC200/220V, 3P 50/60Hz)(L/H) | AC200/220V (50/60Hz) | (GMC-88 (L/H) | |
| 121960 | CHANGE CONTROL BOARD MR-90N-A to MR-16-CT (GMC-25,55 AC200~415V, 3P 50/60Hz)(L/H) | AC200~415V (50/60Hz) | (GMC-25,55 (L/H) | |
| 121961 | CHANGE CONTROL BOARD MR-90N-A to MR-16-CT (GMC-88 AC200~415V, 3P 50/60Hz)(L/H) | AC200~415V (50/60Hz) | (GMC-88 (L/H) | |
| 121962 | CHANGE CONTROL BOARD MR-90N-J to MR-16-AN (GMC-25,55 AC200~415V, 3P 50/60Hz)(L/H) | AC200~415V (50/60Hz) | (GMC-25,55 (L/H) | |
| 121963 | CHANGE CONTROL BOARD MR-90N-J to MR-16-AN (GMC-88 AC200~415V, 3P 50/60Hz)(L/H) | AC200~415V (50/60Hz) | (GMC-88(L/H) | |
| 121964 | CHANGE CONTROL BOARD MR-90N-J to MR-16-CT (GMC-25,55 AC200~415V, 3P 50/60Hz)(L/H) | AC200~415V (50/60Hz) | (GMC-25,55(L/H) | |
| 123675 | CHANGE CONTROL BOARD MR-90N-A to MR-16-AN (GMC-88 AC380-415V 50/60Hz)(L/H) | AC380-415V (50/60Hz) | (GMC-88 (L/H) | |
| 123676 | CHANGE CONTROL BOARD MR-90N-J to MR-16-CT (GMC-88 AC200~415V, 3P 50/60Hz)(L/H) | AC200~415V (50/60Hz) | (GMC-88(L/H) | |

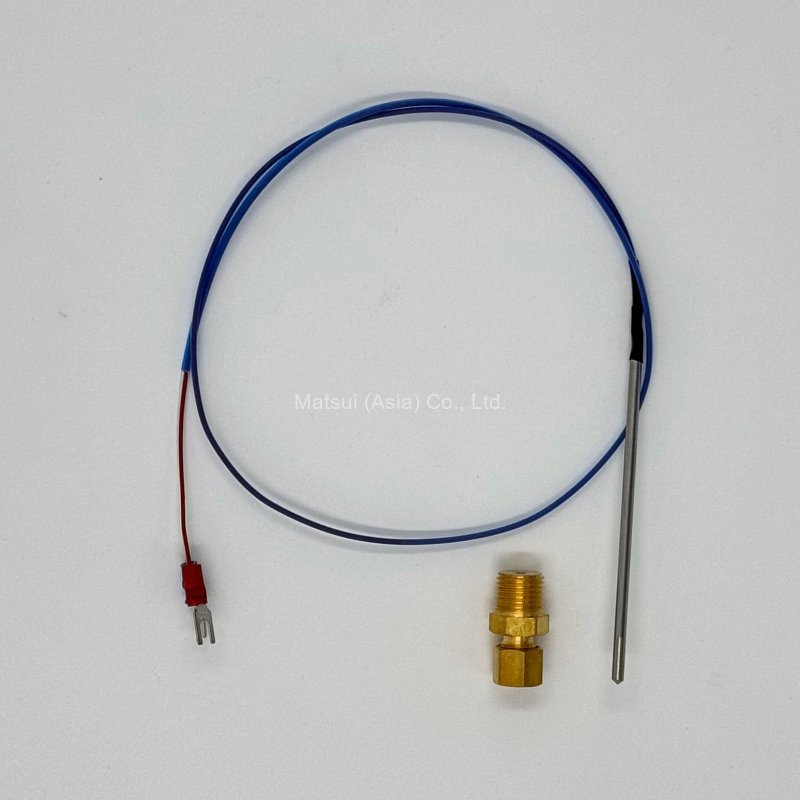

THERMOCOUPLE (FOR PUMP) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 100498 | THERMOCOUPLE T102-3.2- 100-600-T-K-NG | - | GMC-L/H/A-25/55 | |
| 100499 | THERMOCOUPLE T102-3.2- 100-1050-T-K-NG | - | GMC-L/H/A-88 | |
| 100499 | THERMOCOUPLE T102-3.2- 100-1050-T-K-NG | - | GMC-L/H-200/350 | |
