SPARE PARTS
servicemac@matsui.net
02-324-0216-8 Ext. 6
+66 86-091-6843
HD2
CATCH CLIP |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Conical | ||||
| 100006 | CATCH CLIP C-7-1 | - | HD2-10~50 | |
| For Hopper dryer door | ||||
| 100008 | CATCH CLIP C-1232-1 (SUS304) | - | HD2-75~300 | |
| For Hopper dryer lid & Exhaust filter | ||||
| 100009 | CATCH CLIP C-7-1 WITH ARM | - | HD2-150~300 | |
DIFFUSER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| DIFFUSER | ||||
| 100100 | DIFFUSER DIA.150x135L DWG.131337 (HD-10/15) | - | HD2-10~15 | |
| 100101 | DIFFUSER HD-75/100 DIA.260x245L DWG.131417 | - | HD2-75~100 | |
| 102725 | DIFFUSER DIA.220 x 190L DWG.131411 (HD-25, 50) | - | HD2-25~50 | |
| 102817 | DIFFUSER HD-150, 200, MGD, MJ3-200 DWG.131359 | - | HD2-150~300 | |
| ACCESSORIES PARTS | ||||
| 100102 | DIFFUSER STOPPER HD-10/15 DWG.140686 | - | HD2-10~15 | |
| 100103 | DIFFUSER STOPPER HD-25~100, MGD,MJ3-50~150 DWG.527187 | - | HD2-25~100 | |

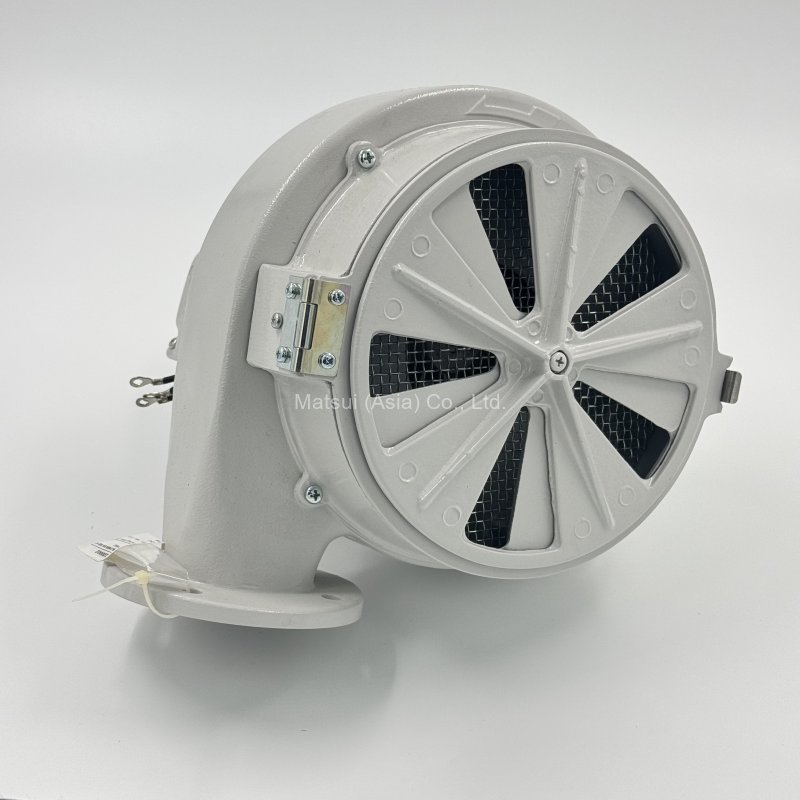

DRYING BLOWER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 100001 | BLOWER RS-205 AC200/380V (AKAMATSU DENKI) | AC200/380V,50/60Hz | HD2-10/15 | |
| 100002 | BLOWER RS-300 AC200/380V/50Hz *MAC | AC200/380V,50/60Hz | HD2-25 | |
| 100003 | BLOWER RS-301 AC200V, 50/60Hz (AKAMATSU DENKI) | AC200/380V,50/60Hz | HD2-50 | |
| 100004 | BLOWER RS-302N AC200/380V 50Hz (AKAMATSU DENKI) | AC200/380V,50/60Hz | HD2-75/100 | |
| 100005 | BLOWER NB-5 AC220/380V 50Hz (NISHIMURA DENKI) | AC220/380V,50/60Hz | HD2-150/200 | |
| 102649 | BLOWER NK-5 AC220/380V 50Hz (NISHIMURA DENKI) | AC220/380V 50/60Hz | HD2-250/300 | |
| 107170 | BLOWER RS-301 AC415V 50Hz/60Hz (AKAMATSU DENKI) | AC415V, 50/60Hz | HD2-50 | |
| 117248 | BLOWER RS-301 AC220/380V, 50/60Hz (AKAMATSU DENKI) | AC220V, 50/60Hz | HD2-50 | |

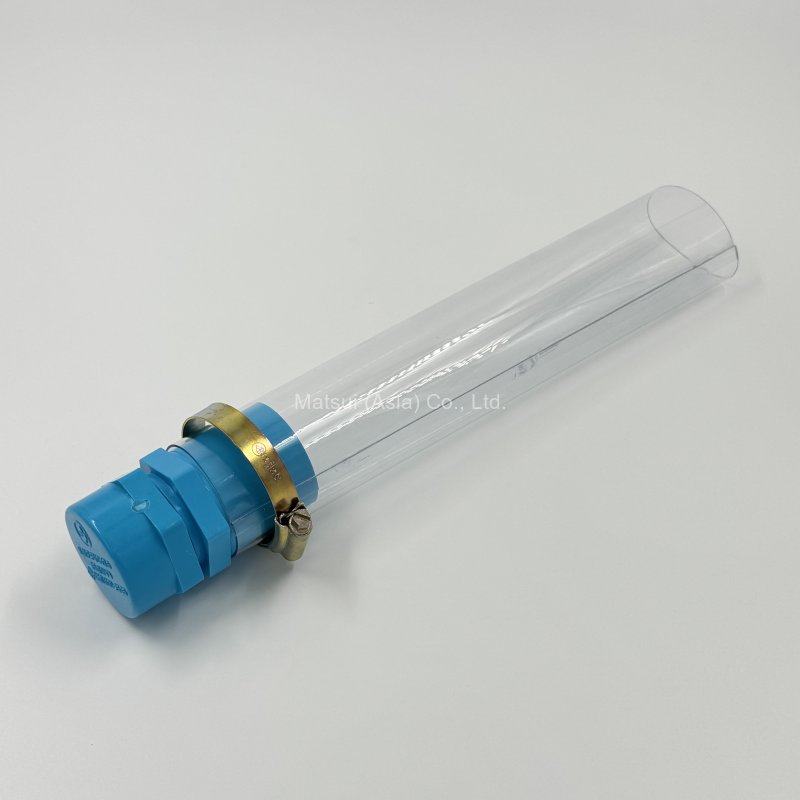

EXHAUST FILTER UNIT |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

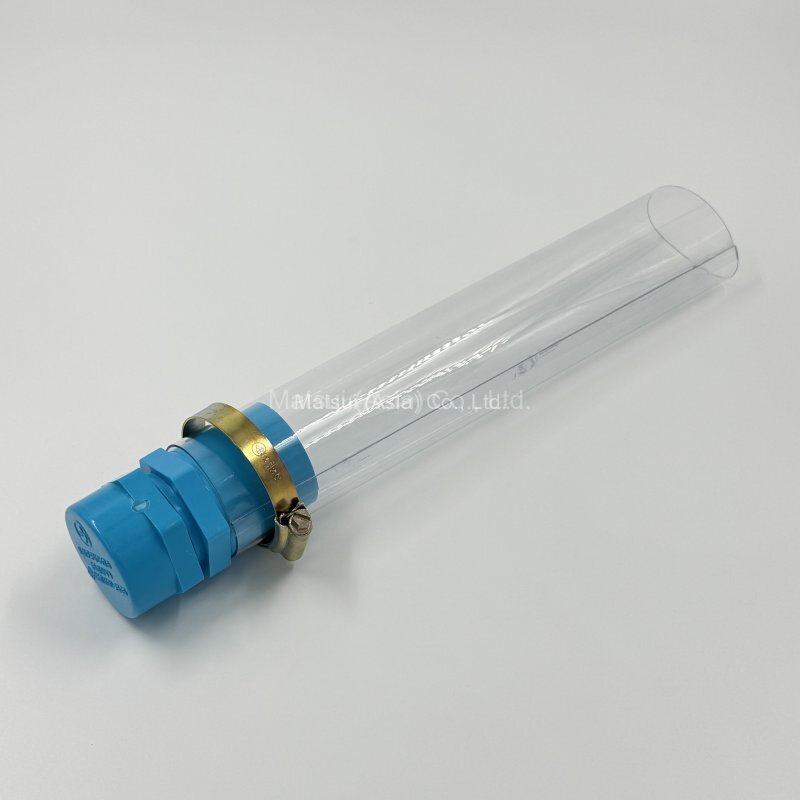

| ACCESSORIES PARTS | ||||
| 100016 | PVC HOSE DIA.50.8MM x L300MM (TRANSPARENT) | - | HD2-150~300 | |
| 101382 | HOSE BAND 45-60MM. | - | HD2-150~300 | |
| 105247 | PVC CAP 1 1/4B | - | HD2-150~300 | |
| 115863 | PVC SOCKET 1 1/4B (Outer thread) | - | HD2-150~300 | |
| EXHAUST FILTER UNIT | ||||
| 125922 | EXHAUST FILTER UNIT DWG.063870 (HD2-10, 15, (D)) | - | HD2-10/15 | |
| 128998 | EXHAUST FILTER UNIT DWG.066727 (HD2-25~100, (D)) | - | HD2-25~100 | |
| 129062 | EXHAUST FILTER UNIT DWG.010537 (HD2-150, 200, 250, 300 (D)) | - | HD2-150~200 | |
| 129092 | EXHAUST FILTER UNIT DWG.010537 (HD2-250, 300, (D)) | HD2-150~300 | ||
FILTER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Drying filter | ||||
| 100017 | FILTER FOR BLOWER RS-205 (150mm x t18) DWG.009752 | - | HD2-10/15 | |
| 100018 | FILTER FOR BLOWER RS-300,301,302 (190MMxT18) DWG.009753 | - | HD2-25~100 | |
| 100144 | FILTER FOR BLOWER 280MMxT18 DWG.009843 (MGD, HD2-150~300) | - | HD2-150~300 | |
| For Exhaust filter | ||||
| 100299 | EXHAUST FILTER 490x635xT18 DWG.734444_3 (HD2,MGD-150~300) | - | HD2-150~300 | |
| 100300 | EXHAUST FILTER 490x375xT18 DWG.734444_3 (HD2-25-100,MGD-50-100) | - | HD2-25~100 | |
| 100301 | EXHAUST FILTER 360x165xT18 DWG.734444_3 (HD2-10, 15) | - | HD2-10/15 | |

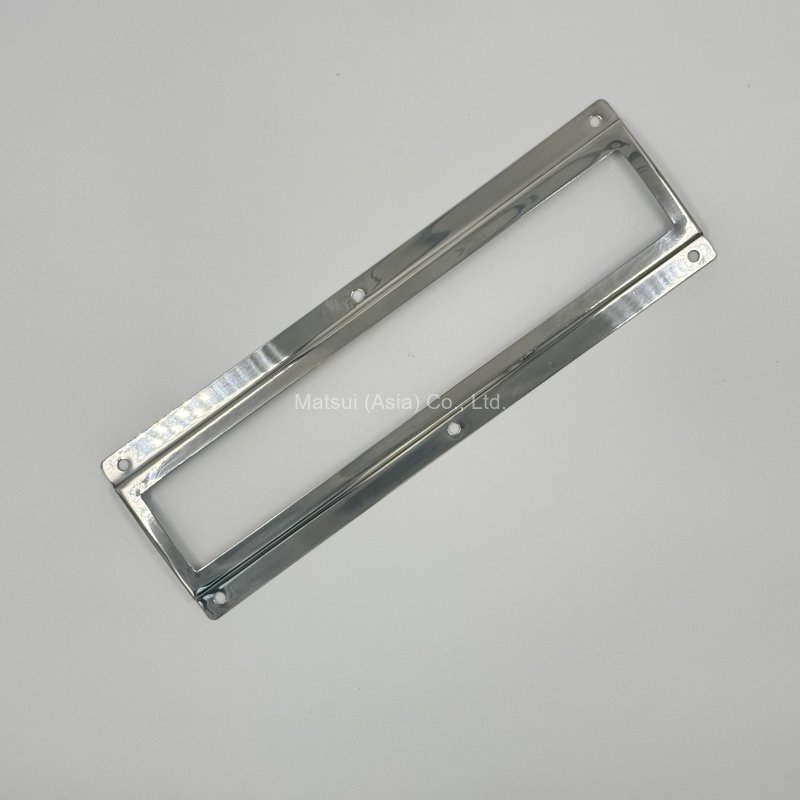

GLASS FRAME |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Hopper dryer door | ||||
| 100027 | GLASS HOLDER DWG.130030 (HD2-10/15, MJ3-15/25, MGD-15/25, MJ6-i-G3-30/50) | - | HD2-10/15 | |
| 100028 | GLASS HOLDER DWG.527189 (HD2-25-300, MJ3&MGD-50~300, MJ5-i-350~1500) | - | HD2-25~300 | |

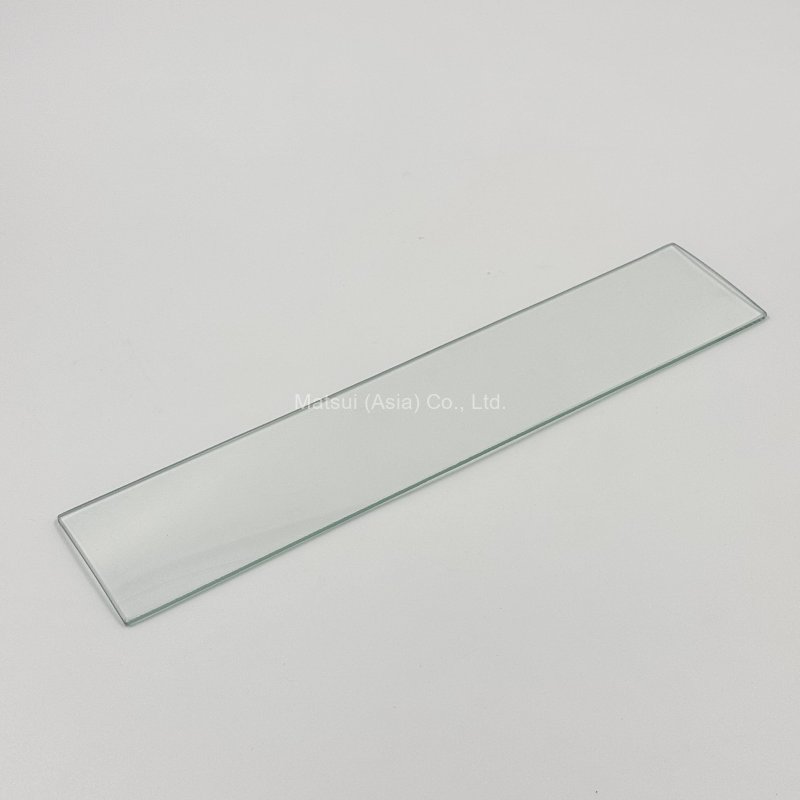

LEVEL GLASS |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Hopper dryer door | ||||
| 100023 | GLASS 50 x 220 x T3.0 (R150) DWG.140057_3 (HD2-10/15, MJ3-15/25, MGD-15/25, MJ6-i-G3-30, 50) | - | HD2-10/15 | |
| 100024 | GLASS 65x315xT3.0 R200 DWG.527188_8 (HD2-25/50, MGD-50/75, MJ3-50/75, MJ5-i-350) | - | HD2-25/50 | |
| 100297 | GLASS 65x315xT3.0 R345 DWG.527188_8 (HD2-150/200, MGD-200, MJ3-200) | - | HD2-150/200 | |
| 100298 | GLASS 65x315xT3.0 R409 DWG.527188_8 (HD2, MGD, MJ3-250/300, MJ5-i-1500) | - | HD2-250/300 | |
| 103018 | GLASS 65x315xT3.0 R266 DWG.527188_8 (HD2-75/100, MGD-100/150, MJ3-100/150, MJ5-i-650) | - | HD2-75/100 | |

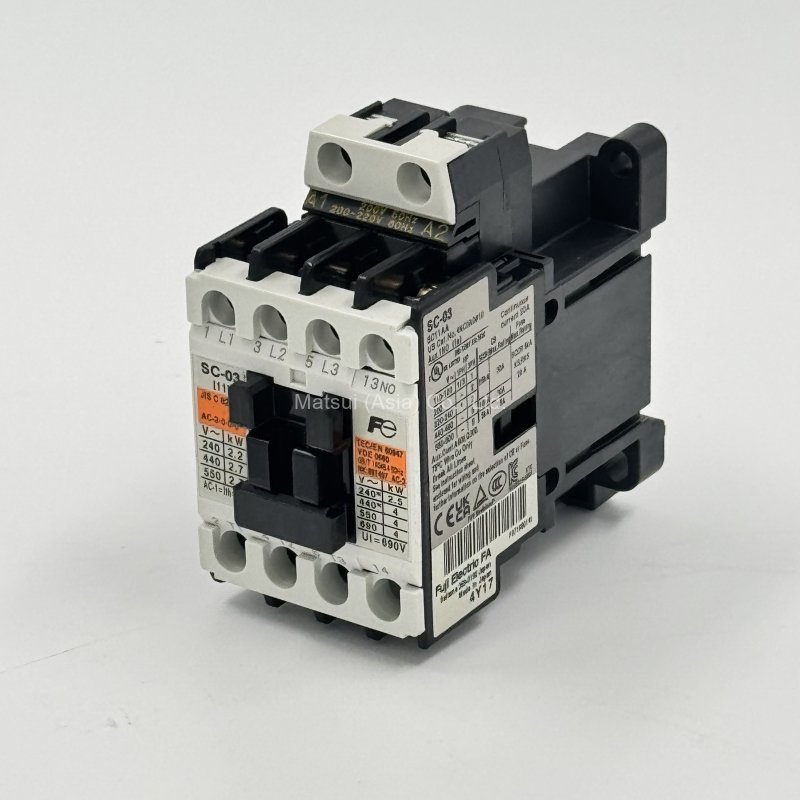

MAGNETIC CONTACTOR (MC) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 120625 | MAGNETIC CONTACTOR SC-03/T AC200V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-10(H)~HD2-15(H) | |
| 120625 | MAGNETIC CONTACTOR SC-03/T AC200V 1a (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-10(H)~15 | |
| 120706 | MAGNETIC CONTACTOR SC-N5/T AC220V With terminal cover SZ-N4T (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-900(H)~1100 | |
| 121097 | MAGNETIC CONTACTOR SC-5-1/T AC100V (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-15(H)~300(H) | |
| 121800 | MAGNETIC CONTACTOR SC-5-1/T AC200V 1A1B (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-75(H)~HD2-100(H0 | |
| 122269 | MAGNETIC CONTACTOR SC-05/T AC200V 1A1B (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-25(H)~HD2-75 | |
| 122715 | MAGNETIC CONTACTOR SC-N2/T AC200V 2a2b (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-150(H)~HD2-200(H) | |
| 122715 | MAGNETIC CONTACTOR SC-N2/T AC200V 2a2b (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-250(H)~700 | |
| 123115 | MAGNETIC CONTACTOR SC-N2S/T AC200V 2a2b (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-250(H)~300(H) | |
| 123115 | MAGNETIC CONTACTOR SC-N2S/T AC200V 2a2b (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-400~500 | |
| 123115 | MAGNETIC CONTACTOR SC-N2S/T AC200V 2a2b (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-700(H)~900 | |
| 123116 | MAGNETIC CONTACTOR SC-N3/T AC200V 2a2b (FUJI ELECTRCI) | AC200~220V( 50-60Hz ) | HD2-300 | |
| 123116 | MAGNETIC CONTACTOR SC-N3/T AC200V 2a2b (FUJI ELECTRCI) | AC200~220V( 50-60Hz ) | HD2-700 | |
| 125001 | MAGNETIC CONTACTOR SC-N4/T AC200V 2a2b (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-400(H)~900 | |

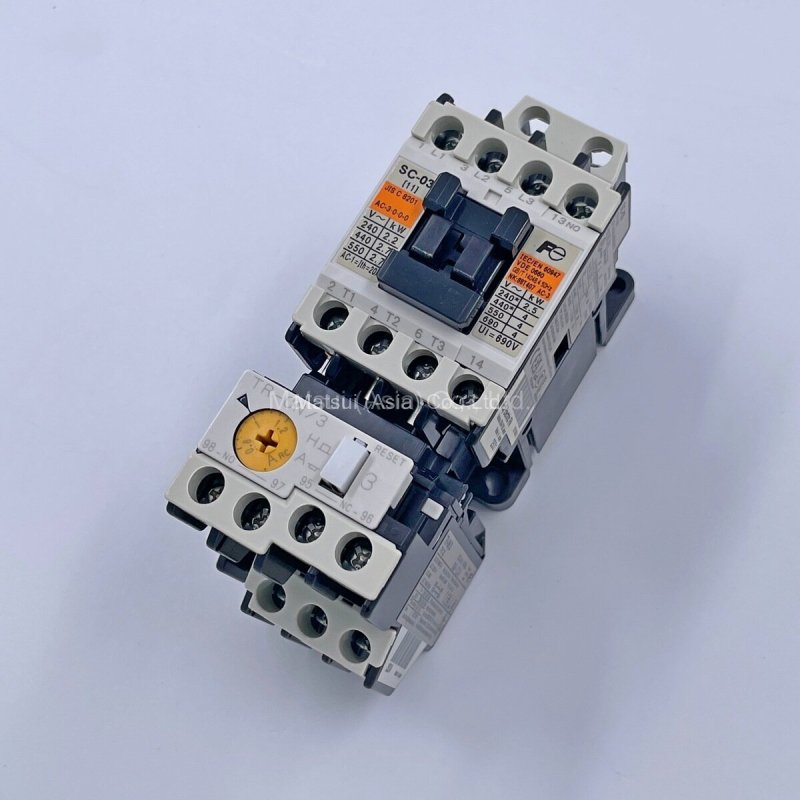

MAGNETIC CONTACTOR (MS) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 123117 | MAGNETIC STARTER SW-03/3H/T (0.1-0.15A) AC200V 1a (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-10~15(H) | |
| 123118 | MAGNETIC STARTER SW-03/3H/T (0.15-0.24A) AC200V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-10~15(H) | |
| 123119 | MAGNETIC STARTER SW-03/3H/T (0.3-0.45A) AC200V 1a (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-25~100(H) | |
| 123212 | MAGNETIC STARTER SW-03/3H/T (0.48-0.72A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-25(H) | |
| 123212 | MAGNETIC STARTER SW-03/3H/T (0.48-0.72A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-75~100(H) | |
| 123220 | MAGNETIC STARTER SW-03/3H/T (0.64-0.96A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-50(H) | |
| 123220 | MAGNETIC STARTER SW-03/3H/T (0.64-0.96A) AC100V 1a (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-150~200(H) | |
| MAGNETIC STARTER SW-03/3H/T (0.8-1.2A) AC100V 1a (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-250~300(H) | ||
| 123222 | MAGNETIC STARTER SW-03/3H/T (0.95-1.45A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-150~200(H) | |
| 123226 | MAGNETIC STARTER SW-03/3H/T (5-8A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-700~900(H) | |
| 123228 | MAGNETIC STARTER SW-03/3H/T (7-11A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-1100 | |
| 123232 | MAGNETIC STARTER SW-03/3H/T (1.4-2.2A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-250~300(H) | |
| 123232 | MAGNETIC STARTER SW-03/3H/T (1.4-2.2A) AC100V 1a (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-400~500(H) | |
| 123233 | MAGNETIC STARTER SW-03/3H/T (2.8-4.2A) AC100V 1a (FUJI ELECTRIC) | AC200~220V( 50-60Hz ) | HD2-400~500(H) | |
| 123233 | MAGNETIC STARTER SW-03/3H/T (2.8-4.2A) AC100V 1a (FUJI ELECTRIC) | AC380~415V( 50-60Hz ) | HD2-700~900 | |

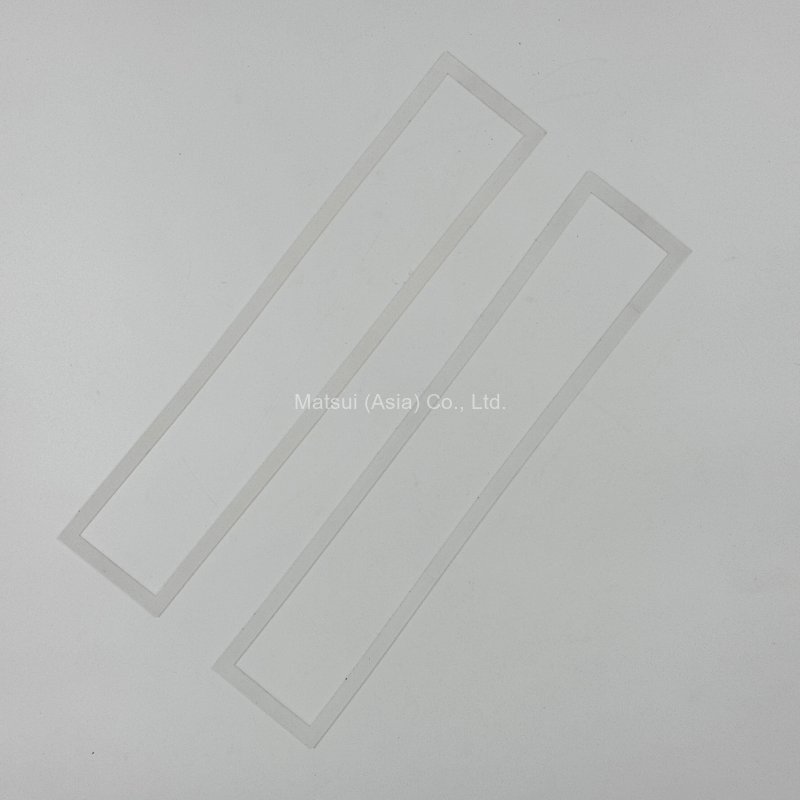

PACKING |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For Hopper dryer door | ||||
| 117234 | GLASS HOLDER PACKING DWG.874326 (MJ DWG.B75350) (SILICONE RUBBER) | - | HD2-10/15 | |
| 117242 | GLASS HOLDER PACKING DWG.874383 (SILICON RUBBER) | - | HD2-25~300 | |

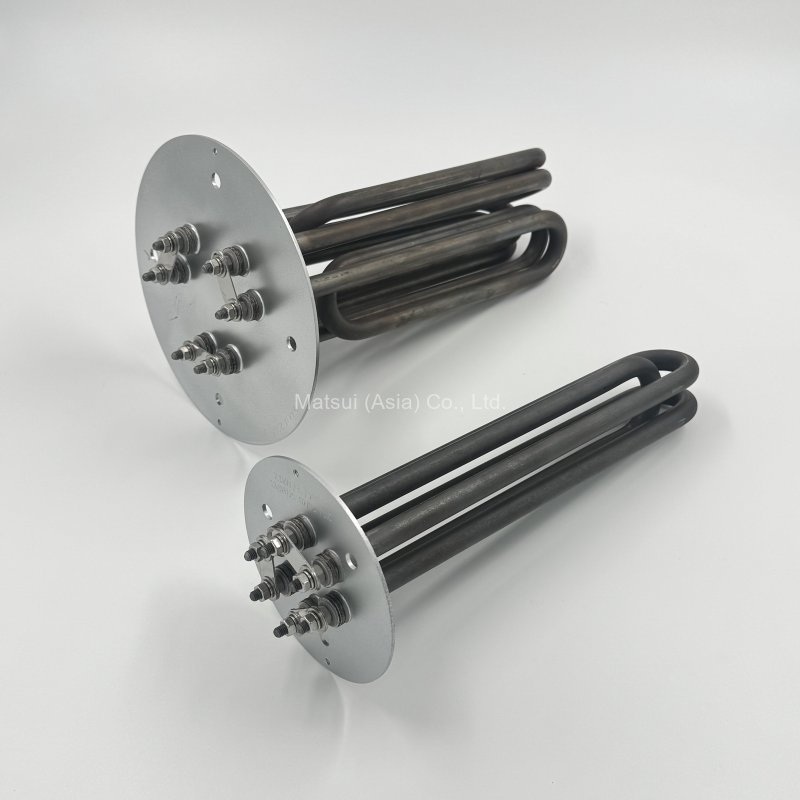

SHEATH HEATER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Standard temperature ~130°C (S-type) | ||||
| 116820 | SHEATH HEATER 6.3KW (STAR/DELTA) AC380/220V DWG.536675 | AC380/220V | HD2-100(S) | |
| 116822 | SHEATH HEATER 19.8KW (STAR/DELTA) AC380/220V DWG.536677 | AC380/220V | HD2-300(S) | |
| 116830 | SHEATH HEATER 12.42KW (STAR/DELTA) AC380/220V DWG.536676 (HD,MGD-150,200,DMZ2-240) | AC380/220V | HD2-200(S) | |
| 116833 | SHEATH HEATER 4.05KW (STAR/DELTA) AC380/220V DWG.536675 (MJ3) | AC380/220V | HD2-50(S) | |
| 116838 | SHEATH HEATER 10.8KW (DELTA) AC200V DWG.536676 | AC200V | HD2-150(S) | |
| 116877 | SHEATH HEATER 4.05KW (DELTA) AC200V DWG.536675 | AC200V | HD2-50(S) | |
| 116896 | SHEATH HEATER 1.5KW (DELTA) AC200V DWG.131336 (HD, HD2-10, 15) | AC200V | HD2-10/15(S) | |
| 116897 | SHEATH HEATER 1.5KW (STAR/DELTA) AC380/220V DWG.131336 (HD-10/15,MGD-15) | AC380/220V | HD2-10/15(S) | |
| 116898 | SHEATH HEATER 3.6KW (DELTA) AC200V DWG.536675 | AC200V | HD2-25(S) | |
| 116899 | SHEATH HEATER 3.6KW (STAR/DELTA) AC380/220V DWG.536675 | AC380/220V | HD2-25(S) | |
| 116900 | SHEATH HEATER 5.4KW (DELTA) AC200V DWG.536675 | AC200V | HD2-75(S) | |
| 116901 | SHEATH HEATER 5.4KW (STAR/DELTA) AC380/220V DWG.536675 | AC380/220V | HD2-75(S) | |
| 116902 | SHEATH HEATER 6.3KW (DELTA) AC200V DWG.536675 | AC200V | HD2-100(S) | |
| 116906 | SHEATH HEATER 12.42KW (DELTA) AC200V DWG.536676 | AC200V | HD2-200(S) | |
| 116909 | SHEATH HEATER 17.1KW (DELTA) AC200V DWG.536677 | AC200V | HD2-250(S) | |
| 116910 | SHEATH HEATER 17.1KW (STAR/DELTA) AC380/220V DWG.536677 | AC380/220V | HD2-250(S) | |
| 116911 | SHEATH HEATER 19.8KW (DELTA) AC200V DWG.536677 (HD2-300,MGD-250,300) | AC200V | HD2-300(S) | |
| 123107 | SHEATH HEATER 10.8KW (STAR/DELTA) AC380/220V DWG.536676 | AC380/220V | HD2-150(S) | |
| High temperature ~160°C (H-type) | ||||
| 116820 | SHEATH HEATER 6.3KW (STAR/DELTA) AC380/220V DWG.536675 | AC380/220V | HD2-75(S) | |
| 116822 | SHEATH HEATER 19.8KW (STAR/DELTA) AC380/220V DWG.536677 | AC380/220V | HD2-250(S) | |
| 116830 | SHEATH HEATER 12.42KW (STAR/DELTA) AC380/220V DWG.536676 (HD,MGD-150,200,DMZ2-240) | AC380/220V | HD2-150(S) | |
| 116833 | SHEATH HEATER 4.05KW (STAR/DELTA) AC380/220V DWG.536675 (MJ3) | AC380/220V | HD2-25/50(S) | |
| 116872 | SHEATH HEATER 2.1KW (DELTA) AC200V DWG.131336 (MJ3, HD, MGD) | AC200V | HD2-10/15(S) | |
| 116877 | SHEATH HEATER 4.05KW (DELTA) AC200V DWG.536675 | AC200V | HD2-25/50(S) | |
| 116902 | SHEATH HEATER 6.3KW (DELTA) AC200V DWG.536675 | AC200V | HD2-75(S) | |
| 116903 | SHEATH HEATER 7.5kW (DELTA) AC200V DWG.536675 | AC200V | HD2-100(S) | |
| 116904 | SHEATH HEATER 7.5kW (STAR/DELTA) AC380/220V DWG.536675 (HD2-100) | AC380V | HD2-100(S) | |
| 116906 | SHEATH HEATER 12.42KW (DELTA) AC200V DWG.536676 | AC200V | HD2-150(S) | |
| 116908 | SHEATH HEATER 17.1KW (STAR/DELTA) AC380/220V DWG.536676 (HD,MGD-200) | AC380V | HD2-200(S) | |
| 116911 | SHEATH HEATER 19.8KW (DELTA) AC200V DWG.536677 (HD2-300,MGD-250,300) | AC200V | HD2-250(S) | |
| 116912 | SHEATH HEATER 24.03KW (DELTA) AC200V DWG.536677 | AC200V | HD2-300(S) | |
| 116913 | SHEATH HEATER 24.03KW (STAR) AC380V DWG.536677 (HD,MGD-300) | AC380V | HD2-300(S) | |

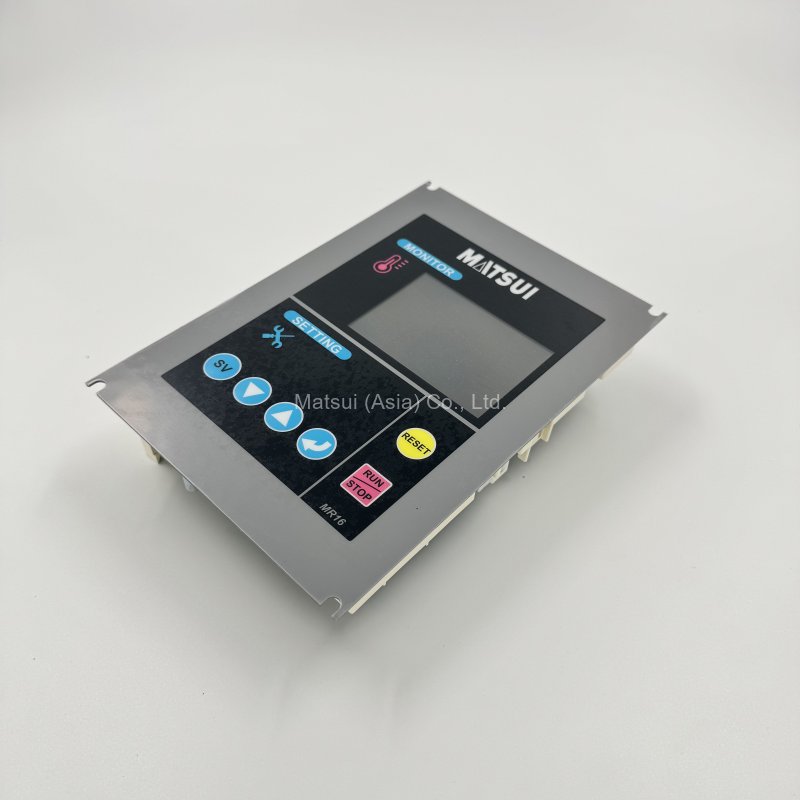

TEMP. CONTROLLER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 123271 | CHANGE CONTROL BOARD MR-90HD TO MR16-AN (HD2) | ALL | ALL | |
| 130021 | TEMPERATURE CONTROLLER MR16-AN (MC5-G1) | ALL | ALL | |

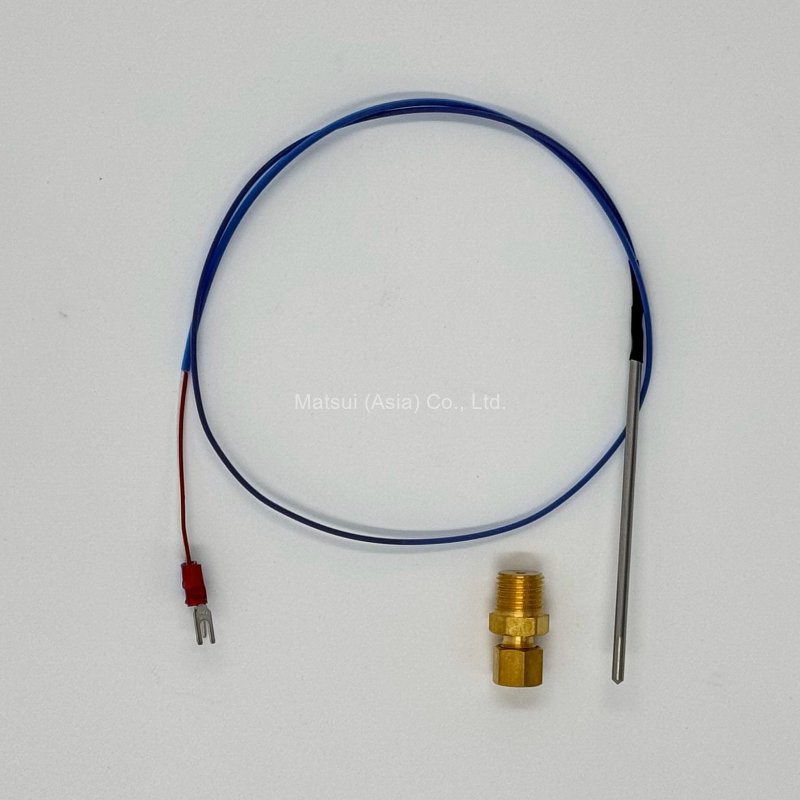

THERMOCOUPLE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| ACCESSORY PARTS | ||||
| 101137 | RING JOINT RJ3.2x1/4B (THROUGH TYPE) | - | HD2-10~300 | |
| THERMOCOUPLE | ||||
| 122613 | THERMOCOUPLE DIA.3.2 x 100 x 3000L (TYPE K NON-GROUNDED) | - | HD2-10~300 | |
THERMOSTAT |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| ACCESSORY PARTS | ||||
| 100010 | THERMOSTAT BOX DWG.755849 | - | HD2-10~300 | |
| 101104 | RING JOINT FOR TR711/N, M12 x P1 (ITEM No. 2, 4, 5) DWG.755583 (THERMOSTAT) | - | HD2-10~300 | |
| 103501 | THERMOSTAT TR711/N220, M12 x P1 x L930 | - | HD2-10~300 | |
| 109253 | RUBBER NBR DIA.12 x t5.6 | - | HD2-10~300 | |

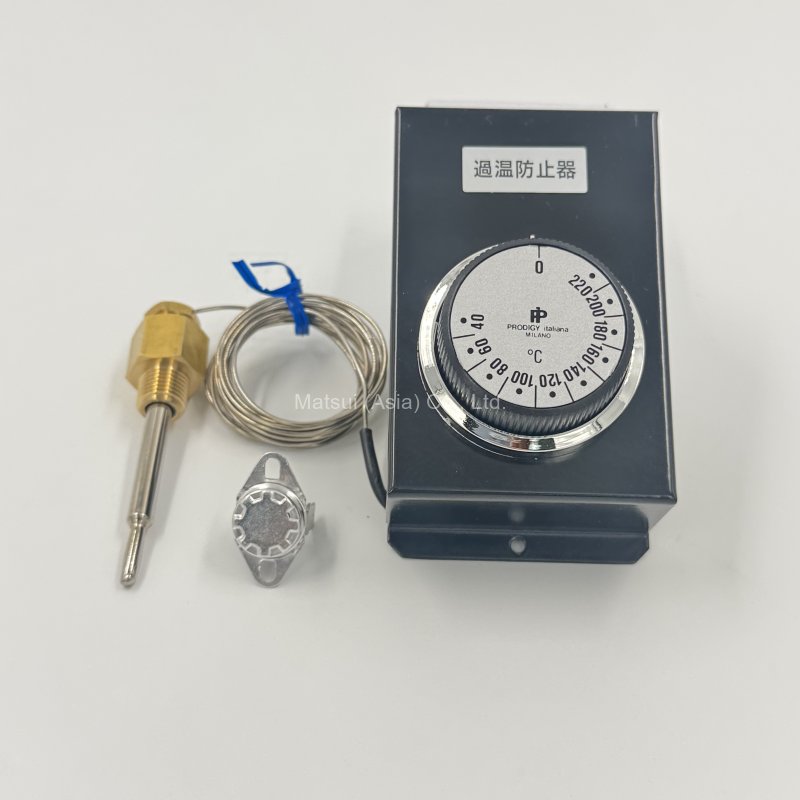

| For Drying heater box | ||||
| 124385 | THERMOSTAT UNIT DWG.755850 *FOR MGD, HD2, MJ3 | - | HD2-10~300 | |
