DMZ2
ACCESSORY PARTS |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 101137 | RING JOINT RJ3.2x1/4B (THROUGH TYPE) | - | DMZ2-40~240 | |
| 101344 | BUSHING SGPW 3/8B x 1/4B (GALVANIZE) | - | ||

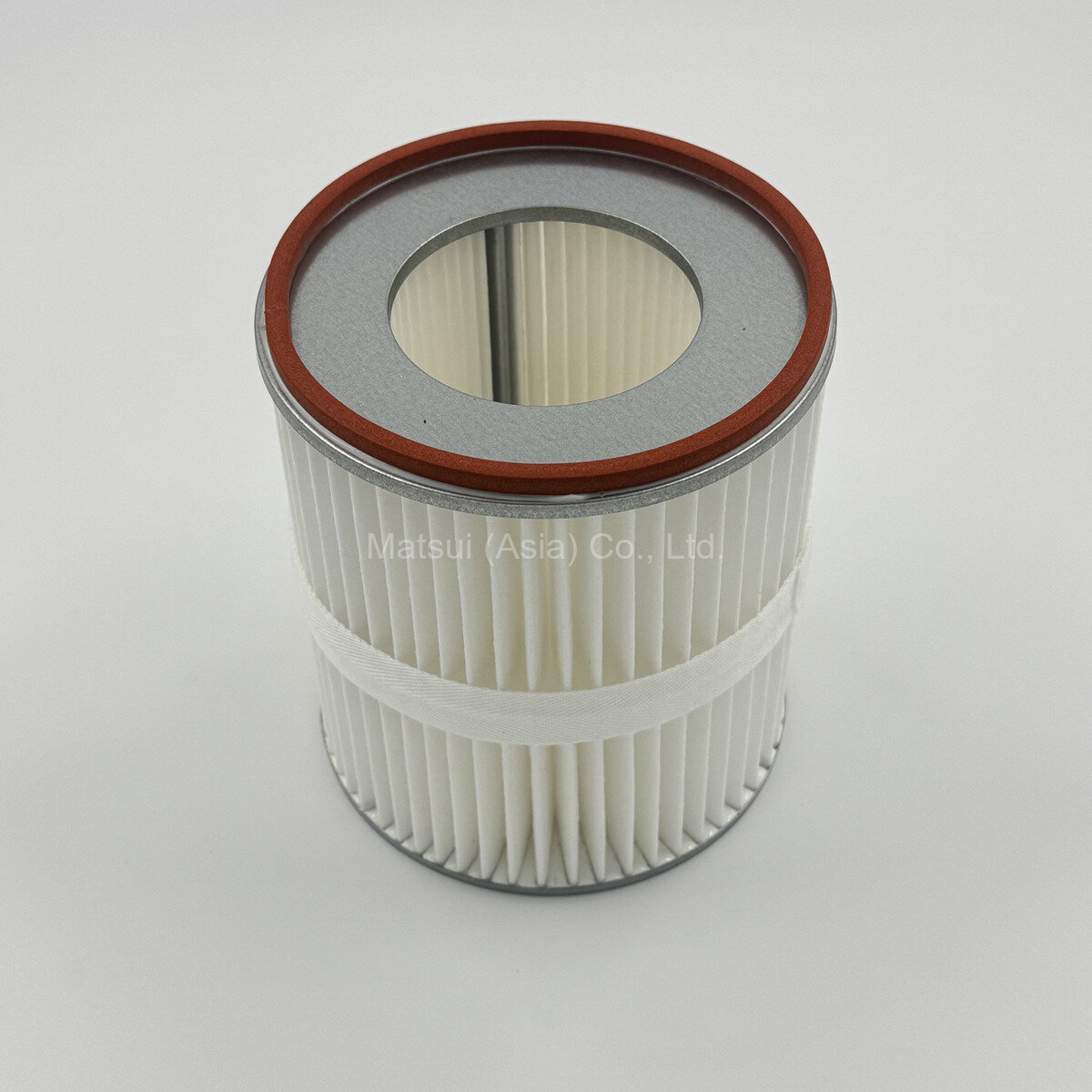

CARTRIDGE FILTER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| (For Drying filter) | ||||
| 101231 | CARTRIDGE FILTER DIA.200 x 350L x P8 DWG.865870 | - | DMZ2-80~240 | |
| 101249 | DRYING FILTER TB-240 (DIA.200x250L) DWG.847567 (CMC DWG.C847567) | - | DMZ2-40 | |

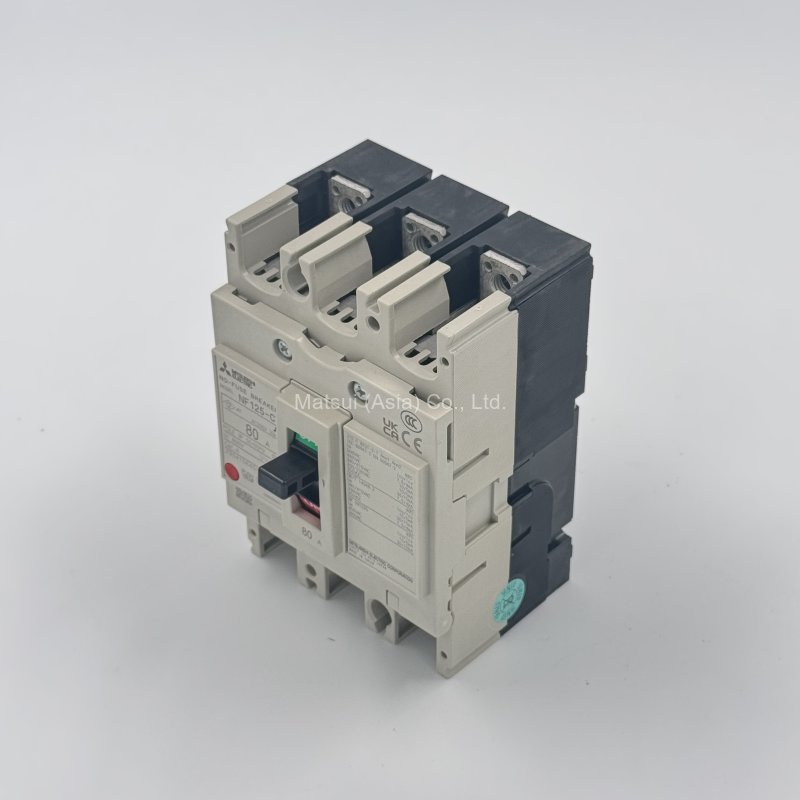

CIRCUIT BREAKER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| A,J - TYPE | ||||
| 100886 | CIRCUIT BREAKER NF63CV, 3P, 40AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-120 (Std.) | |
| 100886 | CIRCUIT BREAKER NF63CV, 3P, 40AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-80 (High Temp.) | |
| 100887 | CIRCUIT BREAKER NF125CV, 3P, 80AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-170 (High Temp.) | |
| 100888 | CIRCUIT BREAKER NF63CV, 3P, 32AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-80 (Std.) | |
| 100888 | CIRCUIT BREAKER NF63CV, 3P, 32AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| 100888 | CIRCUIT BREAKER NF63CV, 3P, 32AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-120 (High Temp.) | |
| 100888 | CIRCUIT BREAKER NF63CV, 3P, 32AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-170 (High Temp.) | |
| 100968 | CIRCUIT BREAKER NF63CV, 3P, 50AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-120 (High Temp.) | |
| 100968 | CIRCUIT BREAKER NF63CV, 3P, 50AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| 101032 | CIRCUIT BREAKER NF63CV, 3P, 63AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| 101032 | CIRCUIT BREAKER NF63CV, 3P, 63AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-240 (High Temp.) | |
| 101097 | CIRCUIT BREAKER NF63CV, 3P, 20AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-40 (Std.+ High_Temp) | |
| 101097 | CIRCUIT BREAKER NF63CV, 3P, 20AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-120 (Std.) | |
| 101097 | CIRCUIT BREAKER NF63CV, 3P, 20AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-80 (High Temp.) | |
| 104112 | CIRCUIT BREAKER NF63CV, 3P, 16AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-80 (Std.) | |
| 104112 | CIRCUIT BREAKER NF63CV, 3P, 16AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-40 (High Temp.) | |
| 107156 | CIRCUIT BREAKER NF63CV, 3P, 10AT (MITSUBISHI) | AC380-4150V ( 50~60Hz ) | DMZ2-40 (Std.) | |
| 109758 | CIRCUIT BREAKER NF125CV, 3P, 100AT (MITSUBISHI) | AC200-220V ( 50~60Hz ) | DMZ2-240 (Std.+ High_Temp) | |
| U - TYPE | ||||
| 100886 | CIRCUIT BREAKER NF63CV, 3P, 40AT (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-120 (Std.+ High_Temp) | |
| 100886 | CIRCUIT BREAKER NF63CV, 3P, 40AT (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-240 (Std.) | |
| 100886 | CIRCUIT BREAKER NF63CV, 3P, 40AT (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-170 (High Temp.) | |
| 100887 | CIRCUIT BREAKER NF125CV, 3P, 80AT (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-240 (Std.) | |
| 100888 | CIRCUIT BREAKER NF63CV, 3P, 32AT (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-80 (Std.+ High_Temp) | |
| 100888 | CIRCUIT BREAKER NF63CV, 3P, 32AT (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-170 (Std.) | |
| 100888 | CIRCUIT BREAKER NF63CV, 3P, 32AT (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-120 (High Temp.) | |
| 100968 | CIRCUIT BREAKER NF63CV, 3P, 50AT (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-170 (Std.) | |
| 100968 | CIRCUIT BREAKER NF63CV, 3P, 50AT (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-240 (High Temp.) | |
| 101032 | CIRCUIT BREAKER NF63CV, 3P, 63AT (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-170 (High Temp.) | |
| 101097 | CIRCUIT BREAKER NF63CV, 3P, 20AT (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-40 (Std.+ High_Temp) | |
| 101097 | CIRCUIT BREAKER NF63CV, 3P, 20AT (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-80~120 (Std.+ High_Temp) | |
| 104112 | CIRCUIT BREAKER NF63CV, 3P, 16AT (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-40 (Std.+ High_Temp) | |
| 109758 | CIRCUIT BREAKER NF125CV, 3P, 100AT (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-240 (High Temp.) | |

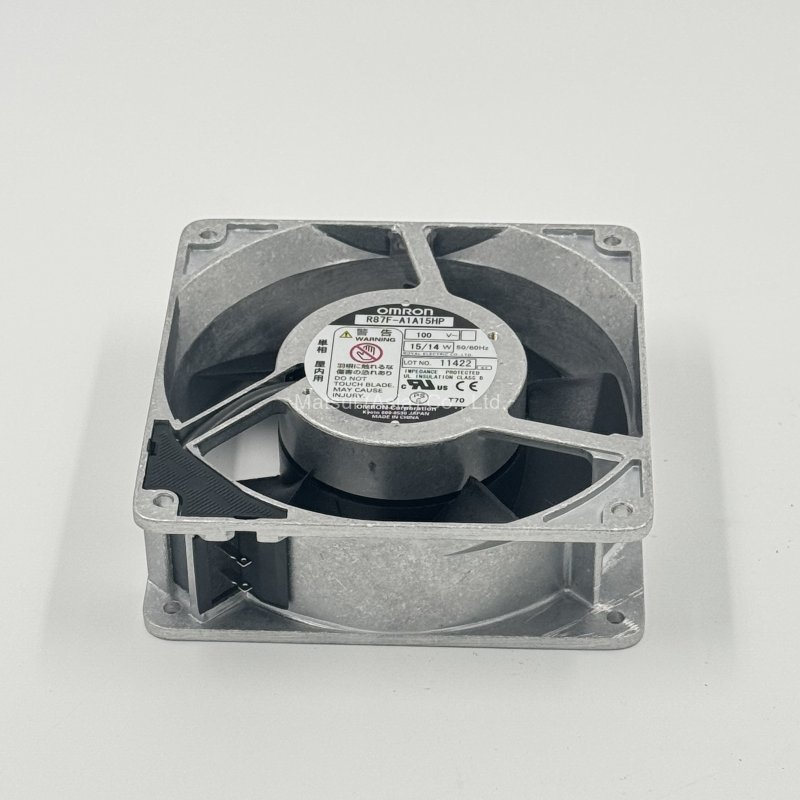

COOLING FAN |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 104070 | COOLING FAN MU925S-51 AC220V (OREINTAL) | AC200~415V | ALL | |
| U - TYPE | ||||

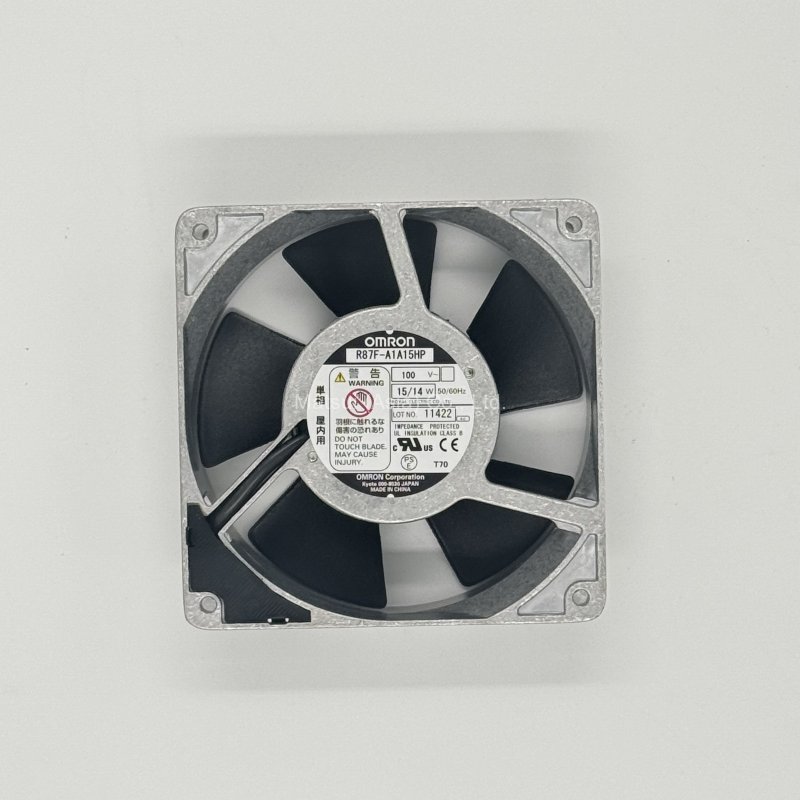

| 103486 | FAN R87F-A1A15HP AC100V (OMRON) | AC230V ( 60Hz ) | ALL | |
COOLING WATER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| (For Drying filter) | ||||
| 109865 | COPPER TUBE SET DWG.848494 (MJ3-100~150, DMZ2-40) | - | DMZ2-40 | |
| 118193 | COOLER DWG.B68688 (MJ3-200A/U) | - | DMZ2-80~240 | |

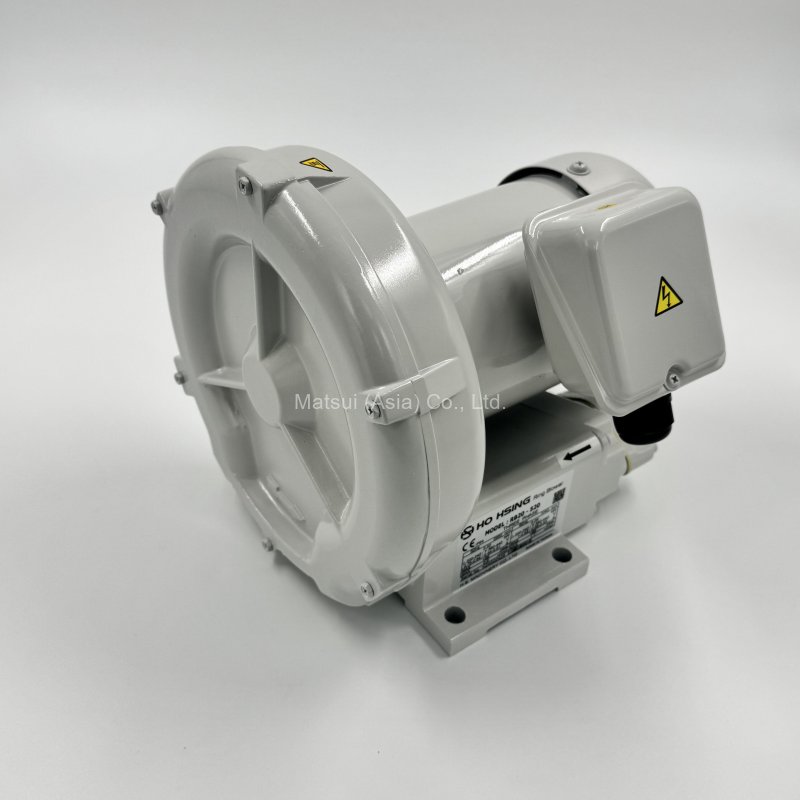

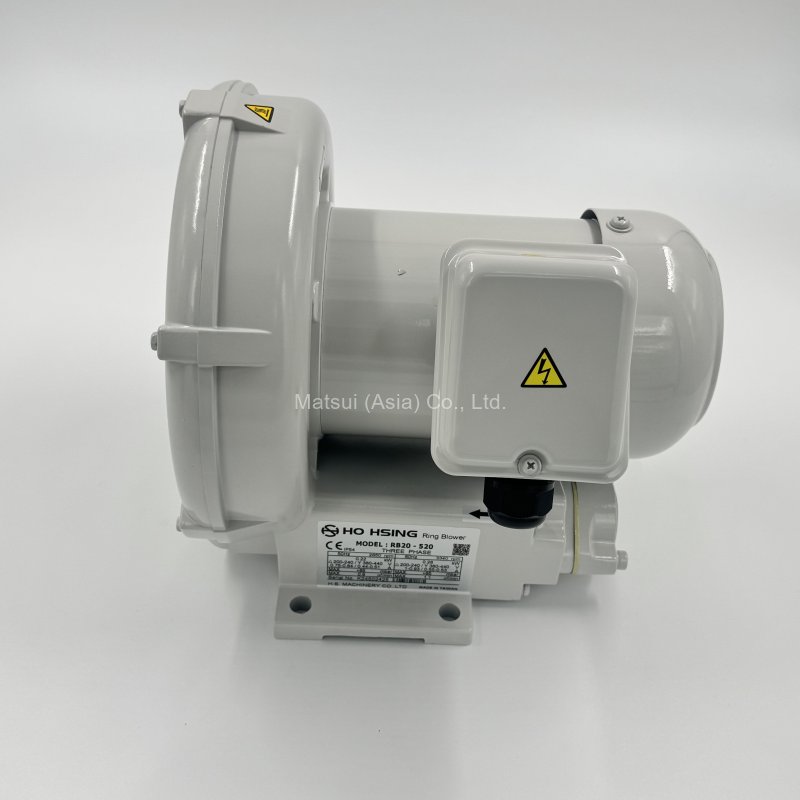

DRYING BLOWER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| A - TYPE | ||||
| 100170 | RING BLOWER RB50-520 AC200-240/380-440V, 50Hz/60Hz (HO-HSING) | AC200~240V/380~440V,50/60Hz | DMZ2-120/170 | |
| 100171 | RING BLOWER RB40-520 AC200-240/380-440V, 50Hz/60Hz (HO-HSING) | AC200~240V/380~440V,50/60Hz | DMZ2-80 | |
| 102781 | RING BLOWER RB30-520 AC200-240/380-440V, 50Hz/60Hz (HO-HSING) | AC200~240V/380~440V,50/60Hz | DMZ2-40 | |
| 102782 | RING BLOWER RB60-520 AC200-240/380-440V, 50Hz/60Hz (HO-HSING) | AC200~240V/380~440V,50/60Hz | DMZ2-240 | |
| U - TYPE | ||||
| 120728 | RING BLOWER RB30-53U AC208-240V/416-480V 50/60Hz (HO-HSING) | AC200~240V/416~480V,50/60Hz | DMZ2-40 | |
| 120732 | RING BLOWER RB40-53U AC208-240V/416-480V 50/60Hz (HO-HSING) | AC200~240V/416~480V,50/60Hz | DMZ2-80 | |
| 120737 | RING BLOWER RB50-53U AC208-240V/416-480V 50/60Hz (HO-HSING) | AC200~240V/416~480V,50/60Hz | DMZ2-120/170 | |
| 120744 | RING BLOWER RB60-53U AC208-240V/416-480V 50/60Hz (HO-HSING) | AC200~240V/416~480V,50/60Hz | DMZ2-240 | |

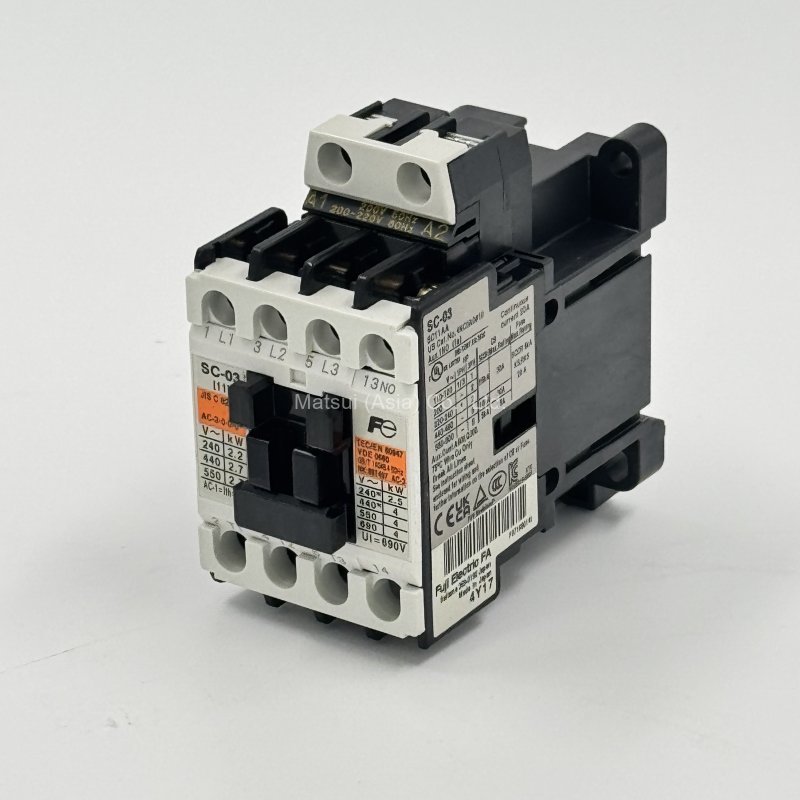

MAGNETIC CONTACTOR ( FOR HEATER ) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| U - TYPE | ||||
| 104815 | MAGNETIC CONTACTOR SC-4-1/T AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-40~120 (Std.) | |
| 104815 | MAGNETIC CONTACTOR SC-4-1/T AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-40~170 (Std.) | |
| 120769 | MAGNETIC CONTACTOR SC-N1/T AC100V 2a2b (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-170 (Std.) | |
| 120769 | MAGNETIC CONTACTOR SC-N1/T AC100V 2a2b (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-240 (Std.) | |
| 120769 | MAGNETIC CONTACTOR SC-N1/T AC100V 2a2b (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-240 (High Temp.) | |
| 120770 | MAGNETIC CONTACTOR SC-N2/T AC100V 2a2b (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-240 (Std.) | |
| 120770 | MAGNETIC CONTACTOR SC-N2/T AC100V 2a2b (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-170 (High Temp.) | |
| 123057 | MAGNETIC CONTACTOR SC-N3/T AC100V 2a2b (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-240 (High Temp.) | |
| 123057 | MAGNETIC CONTACTOR SC-N3/T AC100V 2a2b (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-170 (High Temp.) | |
| A,J - TYPE | ||||
| 120626 | MAGNETIC CONTACTOR SC-N1/T AC200V 2a2b (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| 120626 | MAGNETIC CONTACTOR SC-N1/T AC200V 2a2b (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-170 (High Temp.) | |
| 120627 | MAGNETIC CONTACTOR SC-N3/T AC220V (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| 120706 | MAGNETIC CONTACTOR SC-N5/T AC220V With terminal cover SZ-N4T (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-240 (High Temp.) | |
| 122715 | MAGNETIC CONTACTOR SC-N2/T AC200V 2a2b (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| 122715 | MAGNETIC CONTACTOR SC-N2/T AC200V 2a2b (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-240 (High Temp.) | |
| 123114 | MAGNETIC CONTACTOR SC-4-1/T AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-40~120 (Std.) | |
| 123114 | MAGNETIC CONTACTOR SC-4-1/T AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-40~170 (Std.) | |
| 123115 | MAGNETIC CONTACTOR SC-N2S/T AC200V 2a2b (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-170 (High Temp.) | |

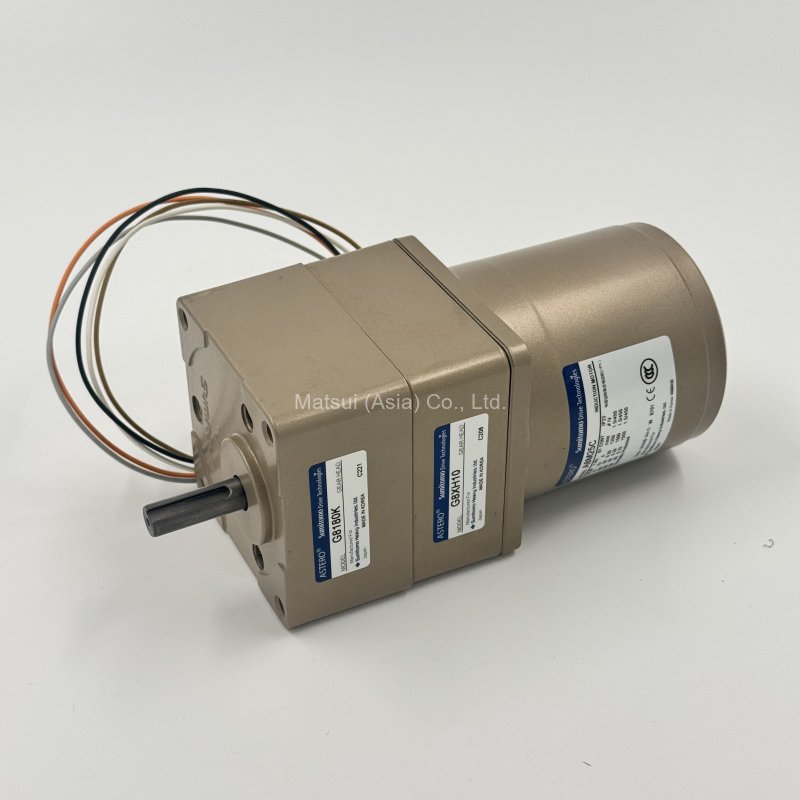

MOTOR GEAR (FOR HONEYCOMB ROTOR) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| A - TYPE | ||||
| 105890 | MOTOR G8180K-G8X-H10 A8 M25C with PULLEY (SUMITOMO) | AC200V/50Hz/60Hz, AC220/60Hz | DMZ2-40~240A | |

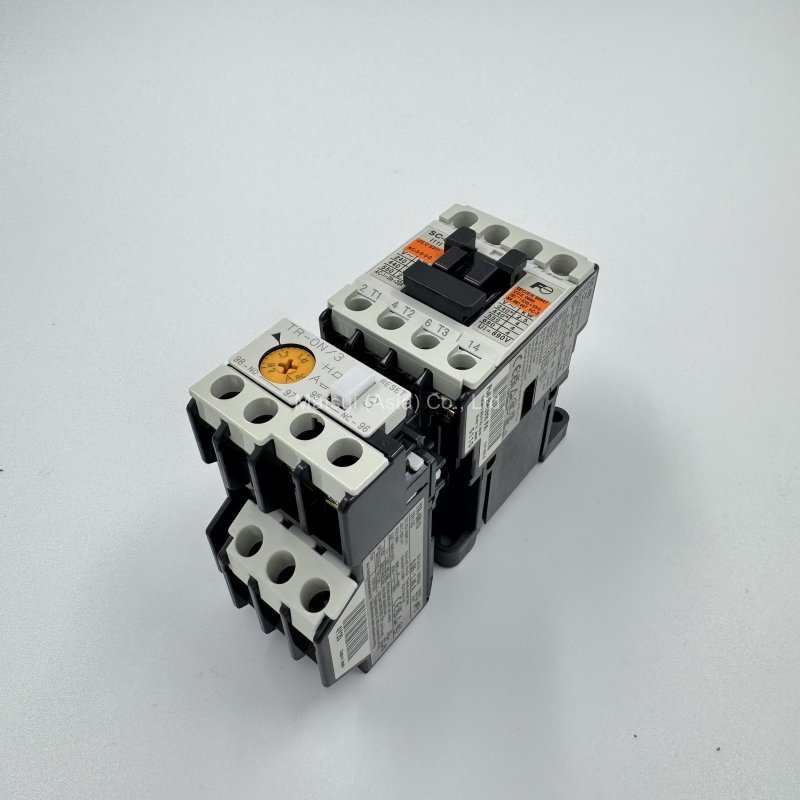

MOTOR STARTER ( FOR BLOWER ) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| A,J - TYPE | ||||
| 123122 | MAGNETIC STARTER SW-03/3H/T (0.8-1.2A) AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| 123123 | MAGNETIC STARTER SW-03/3H/T (0.95-1.45A) AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-40 (Std.) | |
| 123125 | MAGNETIC STARTER SW-03/3H/T (1.7-2.6A) AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-40 (Std.) | |
| 123125 | MAGNETIC STARTER SW-03/3H/T (1.7-2.6A) AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| 123126 | MAGNETIC STARTER SW-03/3H/T (2.2-3.4A) AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-80 (Std.) | |
| 123126 | MAGNETIC STARTER SW-03/3H/T (2.2-3.4A) AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| 123128 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-80 (Std.) | |
| 123128 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| 123128 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-120 (Std.) | |
| 123128 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| 123129 | MAGNETIC STARTER SW-03/3H/T (5-8A) AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| 123129 | MAGNETIC STARTER SW-03/3H/T (5-8A) AC200V 1a (FUJI ELECTRIC) | AC380-4150V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| 123130 | MAGNETIC STARTER SW-03/3H/T (6-9A) AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-120 (Std.) | |
| 123138 | MAGNETIC STARTER SW-4-1/3H/T (9-13A) AC200V 1a (FUJI ELECTRIC) | AC200-220V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| U - TYPE | ||||
| MAGNETIC STARTER SW-03/3H/T (0.8-1.2A) AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-240 (Std.) | ||
| 123222 | MAGNETIC STARTER SW-03/3H/T (0.95-1.45A) AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-40 (Std.) | |
| 123223 | MAGNETIC STARTER SW-03/3H/T (1.7-2.6A) AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-170 (Std.) | |
| 123224 | MAGNETIC STARTER SW-03/3H/T (2.2-3.4A) AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-80 (Std.) | |
| 123224 | MAGNETIC STARTER SW-03/3H/T (2.2-3.4A) AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-240 (Std.) | |
| 123225 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-80 (Std.) | |
| 123225 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-170 (Std.) | |
| 123225 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-240 (Std.) | |
| 123226 | MAGNETIC STARTER SW-03/3H/T (5-8A) AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-120 (Std.) | |
| 123226 | MAGNETIC STARTER SW-03/3H/T (5-8A) AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-170 (Std.) | |
| 123230 | MAGNETIC STARTER SW-4-1/3H/T (7-11A) AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-170 (Std.) | |
| 123232 | MAGNETIC STARTER SW-03/3H/T (1.4-2.2A) AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-40 (Std.) | |
| 123233 | MAGNETIC STARTER SW-03/3H/T (2.8-4.2A) AC100V 1a (FUJI ELECTRIC) | AC230V ( 60Hz ) | DMZ2-240 (Std.) | |
| 123233 | MAGNETIC STARTER SW-03/3H/T (2.8-4.2A) AC100V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | DMZ2-120 (Std.) | |
ORIFICE PLATE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| ACCESSORY PARTS | ||||
| 107804 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.28) (50Hz) DWG.865856 (DMZ2-40) | For SOWA 50Hz (Option) | ||
| 122142 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.18) (60Hz) DWG.865853 (DMZ2-40) | For SOWA 60Hz (Option) | ||
| 122144 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.21) (60Hz) DWG.865854 (DMZ2-80) | For 60Hz (Option) | ||
| 122145 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.34) (60Hz) DWG.865857 (DMZ2-120) | For 60Hz (Option) | ||
| 122147 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.30) (60Hz) DWG.875501 (DMZ2-170) | For 60Hz (Option) | DMZ2-170 | |
| 122273 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.25) (50Hz) DWG.865855_1 (DMZ2-80) | For 50Hz (Standard) | DMZ2-80 | |
| 122275 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.50) (50Hz) DWG.865858 (DMZ2-120) | For 50Hz (Standard) | DMZ2-120 | |
| 123097 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.28) (50Hz) DWG.064469 (DMZ2-40) | For SUZHOU SOK 50Hz (Standard) | DMZ2-40 | |
| 123098 | REGENERATION BLOWER SUCTION PORT ORIFICE (DIA.18) (60Hz) DWG.064470 (DMZ2-40) | For SUZHOU SOK 60Hz (Option) | ||
REGENERATION BLOWER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| A - TYPE | ||||
| 100171 | RING BLOWER RB40-520 AC200-240/380-440V, 50Hz/60Hz (HO-HSING) | AC200~240V/380~440V,50/60Hz | DMZ2-240 | |
| 102781 | RING BLOWER RB30-520 AC200-240/380-440V, 50Hz/60Hz (HO-HSING) | AC200~240V/380~440V,50/60Hz | DMZ2-170 | |
| U - TYPE | ||||

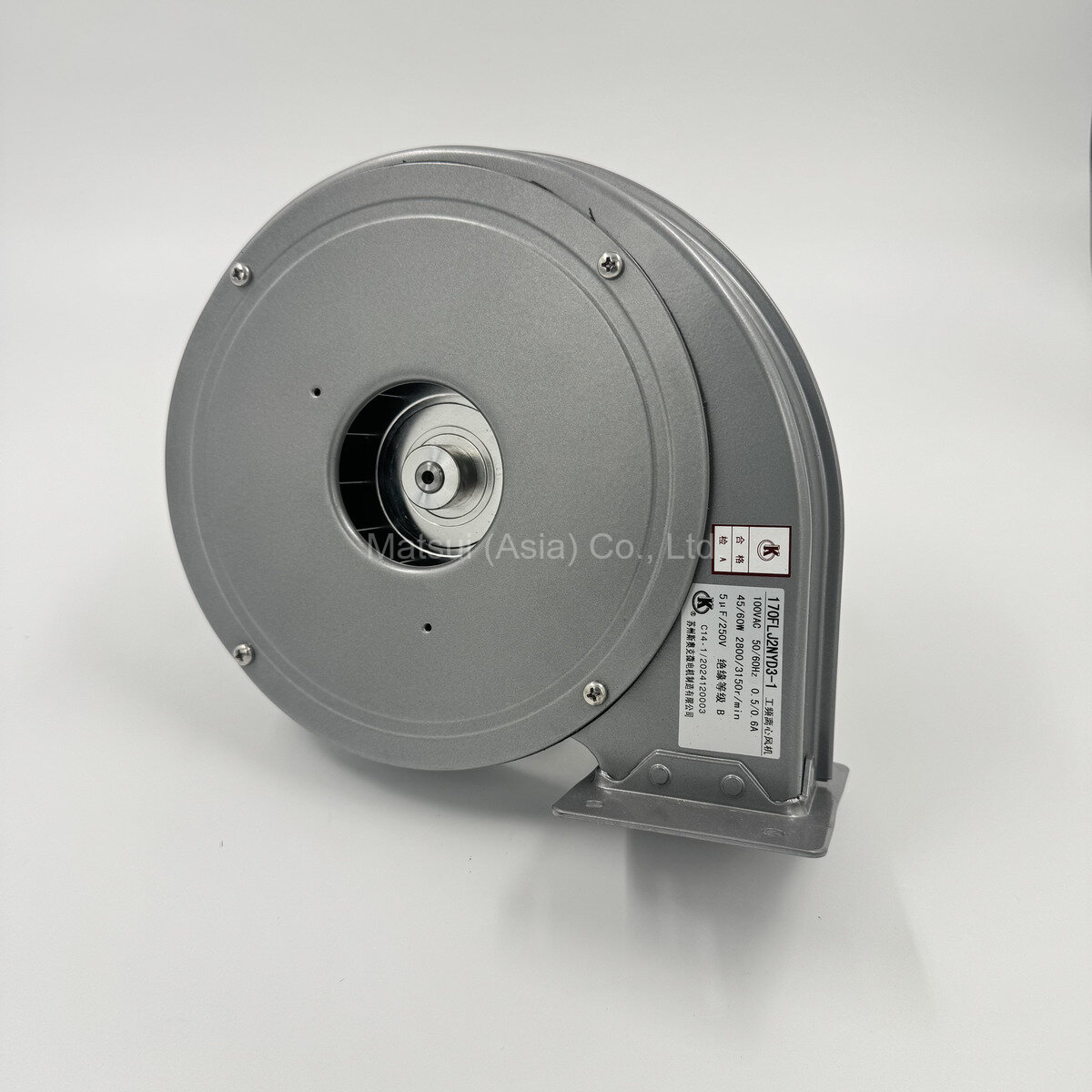

| 120727 | BLOWER 170FLJ2NYD3-1 AC100V 50/60Hz (SUZHOU SOK) | AC100V,50/60Hz | DMZ2-40 | |
| 120728 | RING BLOWER RB30-53U AC208-240V/416-480V 50/60Hz (HO-HSING) | AC208~240V/416~480V,50/60Hz | DMZ2-170 | |
| 120732 | RING BLOWER RB40-53U AC208-240V/416-480V 50/60Hz (HO-HSING) | AC208~240V/416~480V,50/60Hz | DMZ2-240 | |
| 120733 | BLOWER 170FLJ2NYD3-3 AC100V 50Hz/60Hz (SUZHOU SOK) | AC100V,50/60Hz | DMZ2-80/120 | |

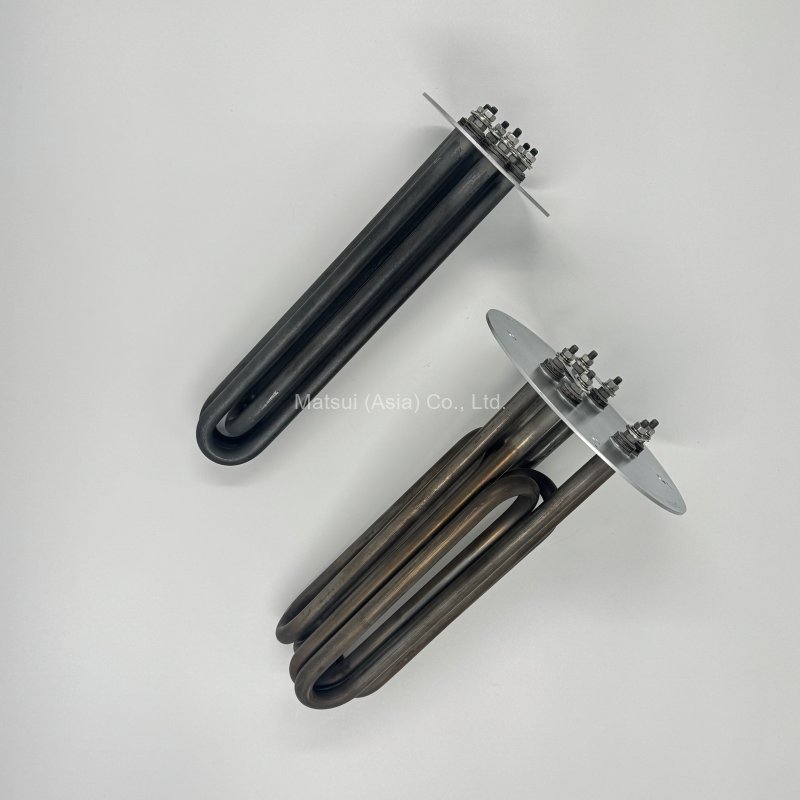

SHEATH HEATER (FOR REGENT HEATER) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| U - TYPE | ||||
| 118253 | SHEATH HEATER 2.01KW (DELTA) AC230V DWG. 864697 | AC230V | DMZ2-40A | |
| 120691 | SHEATH HEATER 2.67kW (STAR) AC460V DWG.864697 | AC460V | DMZ2-40A | |
| 120730 | SHEATH HEATER 3.21KW (DELTA) AC230V DWG.693008 | AC230V | DMZ2-80A | |
| 120731 | SHEATH HEATER 4.20KW (STAR) AC460V DWG.693008 | AC460V | DMZ2-80A | |
| 120735 | SHEATH HEATER 4.11KW (DELTA) AC230V DWG.693009 | AC230V | DMZ2-120 | |
| 120736 | SHEATH HEATER 5.49KW (STAR) AC460V DWG.693009 | AC460V | DMZ2-120 | |
| 120739 | SHEATH HEATER 5.8KW (DELTA) AC230V (UL-TYPE) DWG.869617 (MJ3) | AC230V | DMZ2-170 | |
| 120740 | SHEATH HEATER 7.7kW (STAR) AC460V DWG.869617 | AC460V | DMZ2-170 | |
| 120742 | SHEATH HEATER 9.0KW (DELTA) AC230V DWG.869626 | AC230V | DMZ2-240 | |
| 120743 | SHEATH HEATER 9.0KW (STAR) AC460V DWG.869626 | AC460V | DMZ2-240 | |
| A - TYPE | ||||
| 122430 | SHEATH HEATER 6.9kW (STAR/DELTA) AC380/220V DWG.844650 (MJ3, DMZ2) *PLIC THERMO | AC200V | DMZ2-170 | |
| 122436 | SHEATH HEATER 9.0kW (DELTA) AC200V DWG.844756 (MJ3, DMZ) *PLIC THERMO | AC200V | DMZ2-240 | |
| 122668 | SHEATH HEATER 1.5kW (DELTA) AC200V DWG.864697 (DMZ2-40) *PLIC THERMO | AC200V | DMZ2-40A | |
| 122669 | SHEATH HEATER 1.83kW (STAR/DELTA) AC380/220V DWG.864697 (DMZ2-40) *PLIC THERMO | AC380/220V | DMZ2-40A | |
| 122670 | SHEATH HEATER 2.4KW (DELTA) AC200V DWG.693008 *PLIC THERMO | AC200V | DMZ2-80A | |
| 122673 | SHEATH HEATER 3.69KW (STAR/DELTA) AC380/220V DWG.693009 (DMZ2-120) *PLIC THERMO | AC380/220V | DMZ2-120 | |

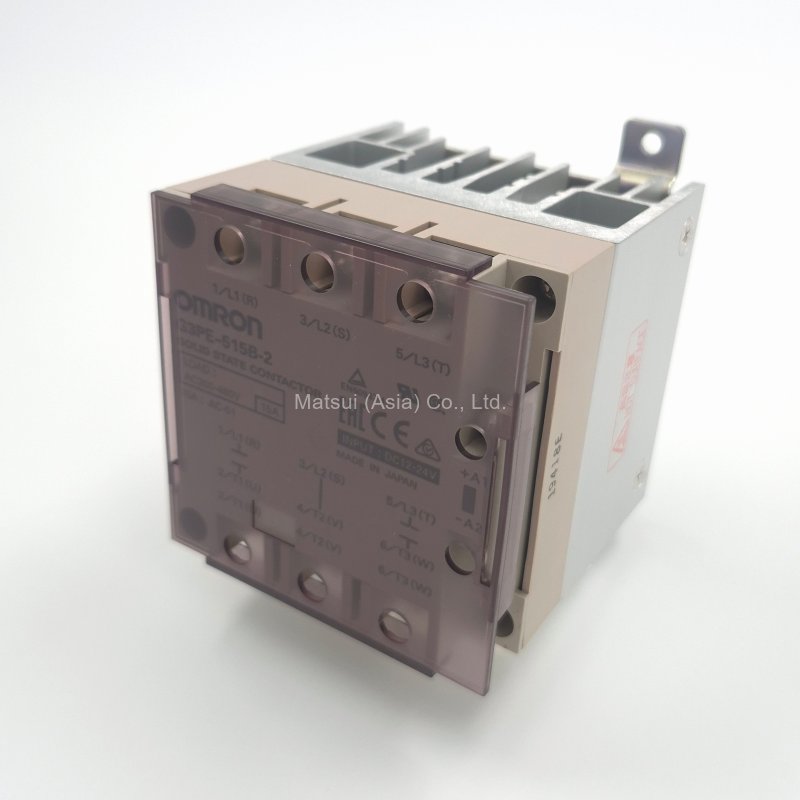

SOLID STATE RELAY ( FOR DRY HEATER ) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| A,J - TYPE | ||||
| 102274 | SOLID STATE RELAY G3PE-215B-2 (DC12-24V) (OMRON) | AC200-220V ( 50~60Hz ) | DMZ2-40~80 (Std.+ High_Temp) | |
| 102274 | SOLID STATE RELAY G3PE-215B-2 (DC12-24V) (OMRON) | AC200-220V ( 50~60Hz ) | DMZ2-120 (Std.) | |
| 103706 | SOLID STATE RELAY G3PB-245B-2 (DC12-24V) (OMRON) | AC200-220V ( 50~60Hz ) | DMZ2-170~240 (High Temp.) | |
| 105354 | SOLID STATE RELAY G3PE-515B-2 (DC12-24V) (OMRON) | AC380-4150V ( 50~60Hz ) | DMZ2-40~120 (Std.+ High_Temp) | |
| 110375 | SOLID STATE RELAY G3PE-525B-2 (DC12-24V) (OMRON) | AC380-4150V ( 50~60Hz ) | DMZ2-170~240 (Std.+ High_Temp) | |
| 115960 | SOLID STATE RELAY G3PE-235B-2 (DC12-24V) (OMRON) | AC200-220V ( 50~60Hz ) | DMZ2-170~240 (Std.) | |
| U - TYPE | ||||
| 105586 | SOLID STATE RELAY US-N20CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-40~120 (Std.+ High_Temp) | |
| 105586 | SOLID STATE RELAY US-N20CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-40~170 (Std.+ High_Temp) | |
| 105586 | SOLID STATE RELAY US-N20CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC460V ( 60Hz ) | DMZ2-240 (Std.) | |
| 116329 | SOLID STATE RELAY US-N50CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-240 (High Temp.) | |
SOLID STATE RELAY ( FOR REG. HEATER ) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| A,J - TYPE | ||||
| 102274 | SOLID STATE RELAY G3PE-215B-2 (DC12-24V) (OMRON) | AC200-220V ( 50~60Hz ) | DMZ2-40~120 (Std.) | |
| 103706 | SOLID STATE RELAY G3PB-245B-2 (DC12-24V) (OMRON) | AC200-220V ( 50~60Hz ) | DMZ2-240 (Std.) | |
| 105354 | SOLID STATE RELAY G3PE-515B-2 (DC12-24V) (OMRON) | AC380-4150V ( 50~60Hz ) | DMZ2-40~120 (Std.) | |
| 110375 | SOLID STATE RELAY G3PE-525B-2 (DC12-24V) (OMRON) | AC380-4150V ( 50~60Hz ) | DMZ2-170~240 (Std.) | |
| 115960 | SOLID STATE RELAY G3PE-235B-2 (DC12-24V) (OMRON) | AC200-220V ( 50~60Hz ) | DMZ2-170 (Std.) | |
| U - TYPE | ||||
| 105586 | SOLID STATE RELAY US-N20CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC230V ( 60Hz ) | DMZ2-40~120 (Std.) | |
| 105586 | SOLID STATE RELAY US-N20CX (AC100~480V) (CONTROL DC12~24V) (MITSUBISHI) | AC460V ( 60Hz ) | ALL | |

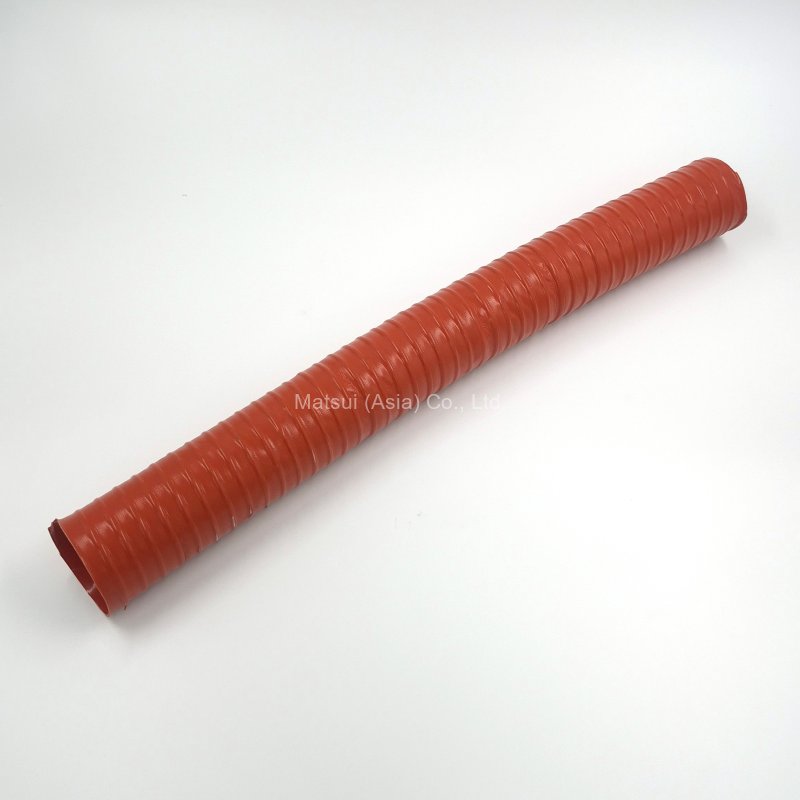

SR HOSE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 100165 | SR HOSE DIA.20 | - | DMZ2-40~240 | |
| 100166 | SR HOSE DIA.38 | - | DMZ2-40~240 | |
| 100167 | SR HOSE DIA.65 | - | DMZ2-40~240 | |
| 100168 | SR HOSE DIA.90 | - | DMZ2-40~240 | |
| 102779 | SR HOSE DIA.50 | - | DMZ2-40~240 | |
SUCTION FILTER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| ACCESSORY PARTS | ||||

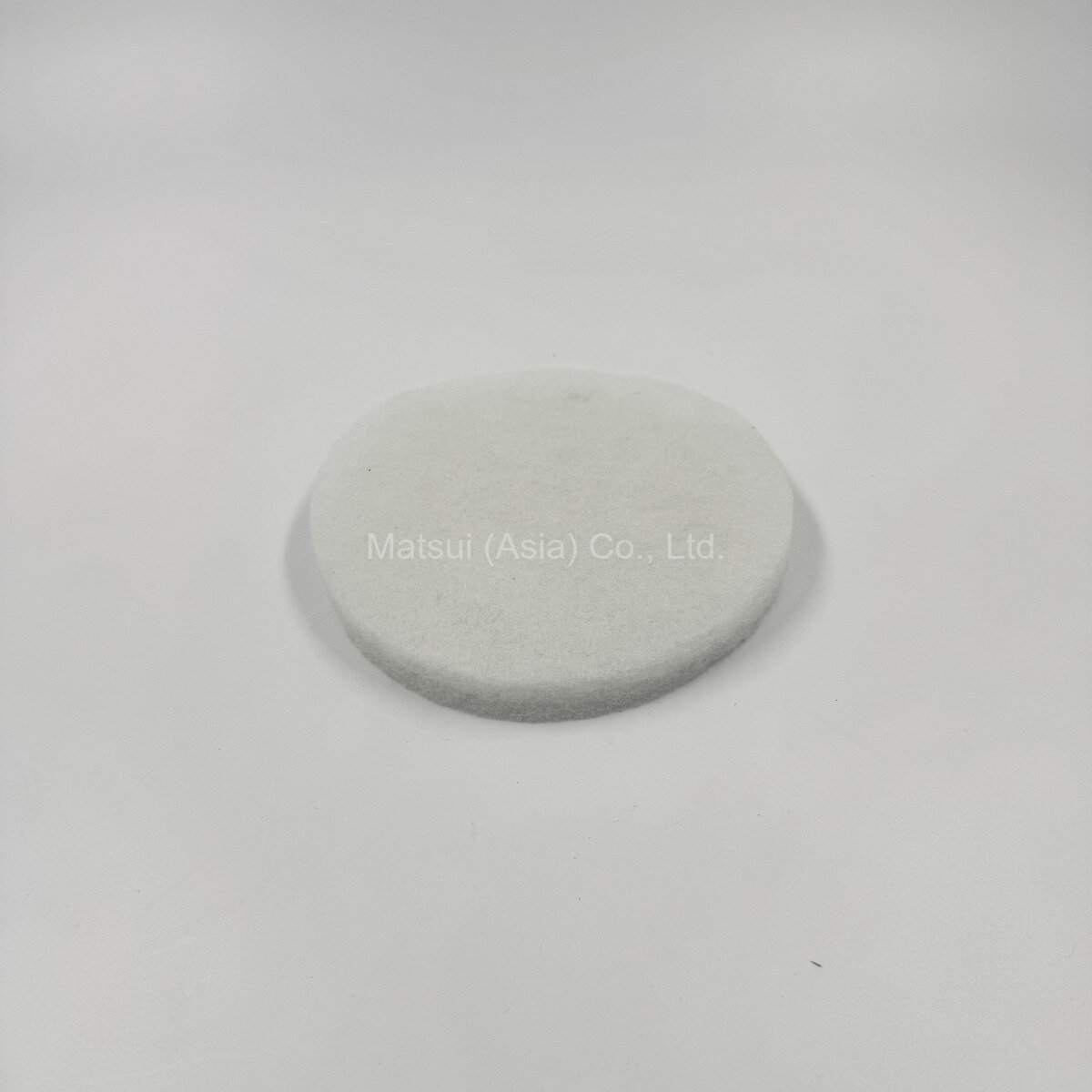

| 106448 | SUCTION FILTER (DIA.150 x t10), FILLEDON DWG.681893 | - | DMZ2-40~240 | |
TEMP. CONTROLLER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

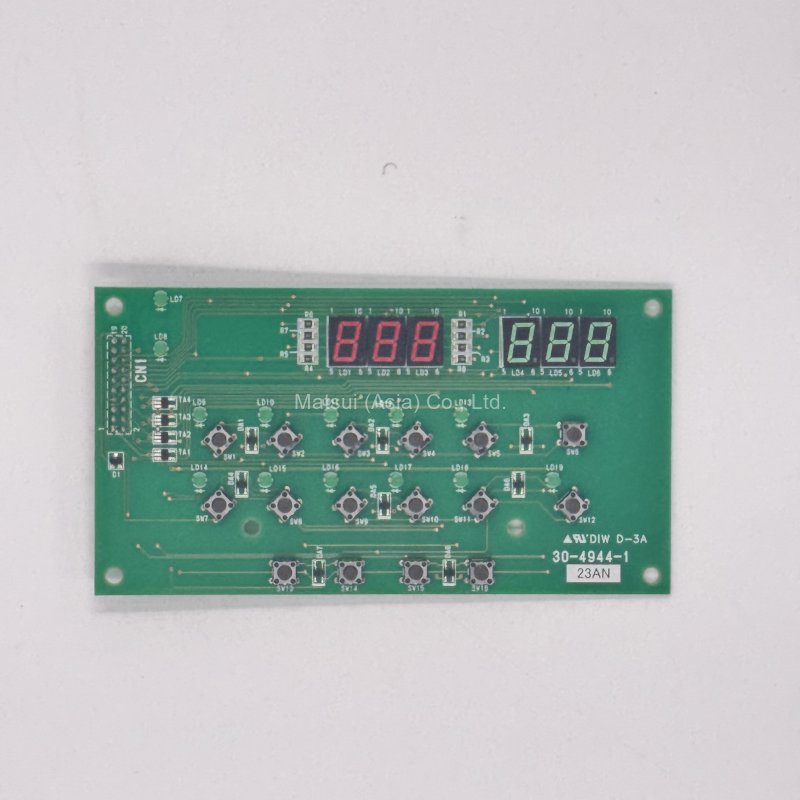

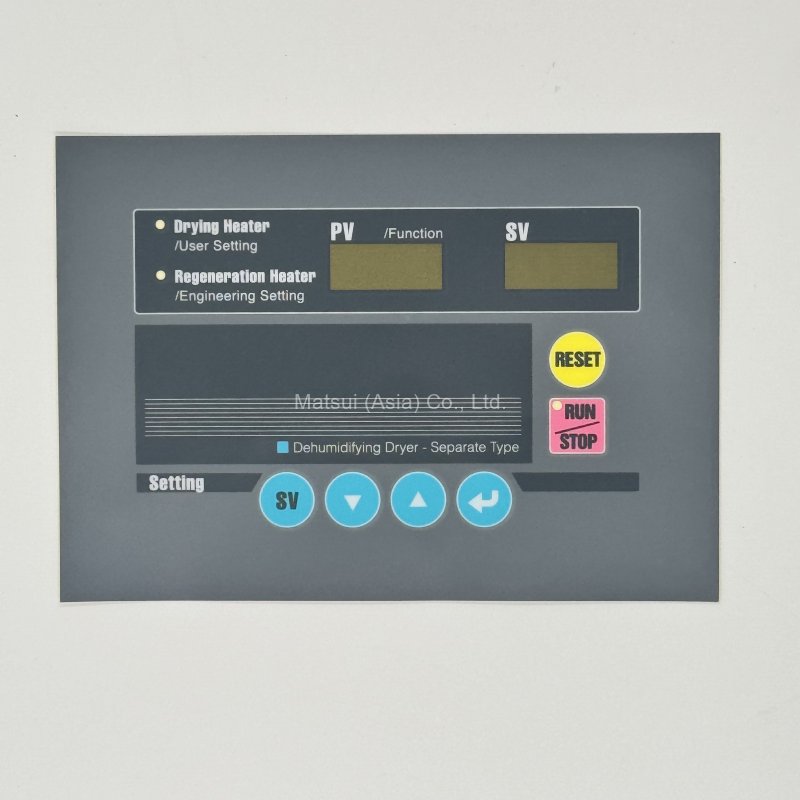

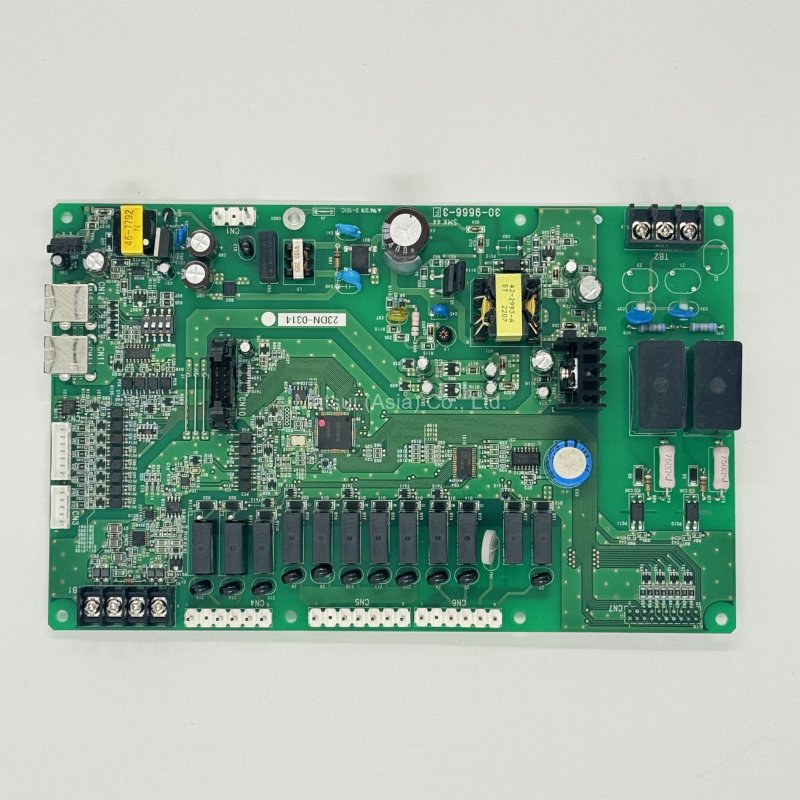

| 123086 | CONTROLLER UNIT G4370 (DISPLAY BOARD G2841) FOR DMZ2 (MATSUI) WITH CONTACT&STICKER | DMZ2-10~300(A/U) | ||
THERMOSTAT (FOR REGENERATIPON HEATER) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

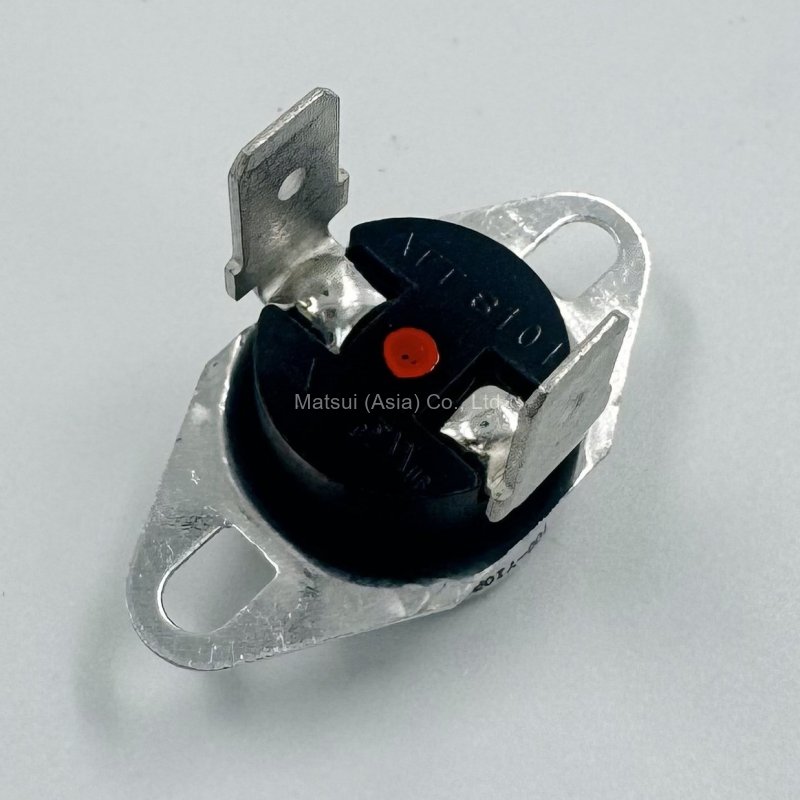

| 108830 | THERMOSTAT 3A-255C (S105HCTCC1H1-MG) (ATT) | DMZ2-40~240 | ||

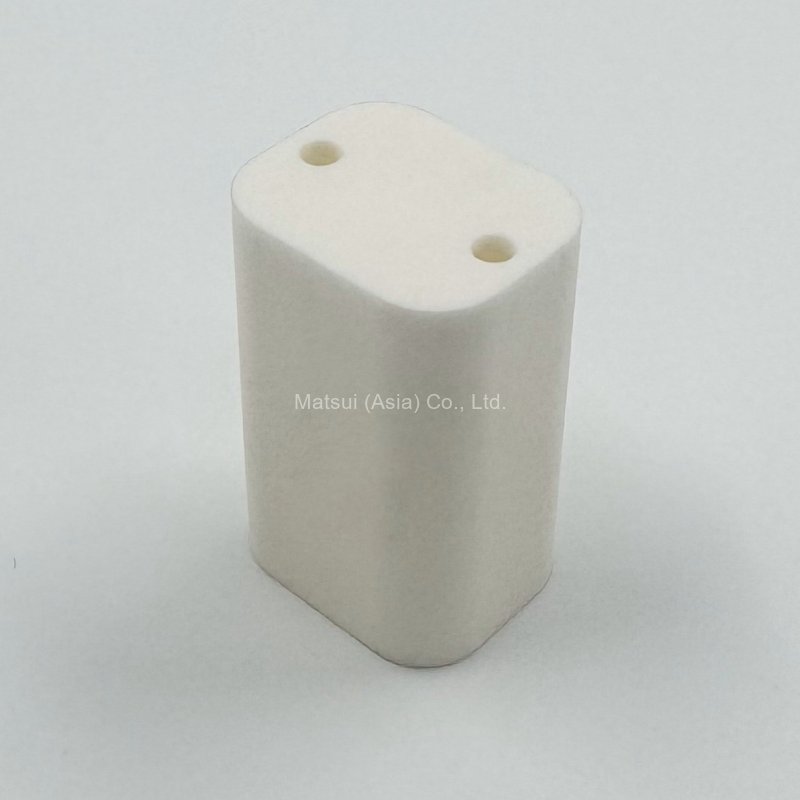

| 116103 | THERMOSTAT CAP (CERAMIC) DWG.B17441_1 | DMZ2-40~240 | ||

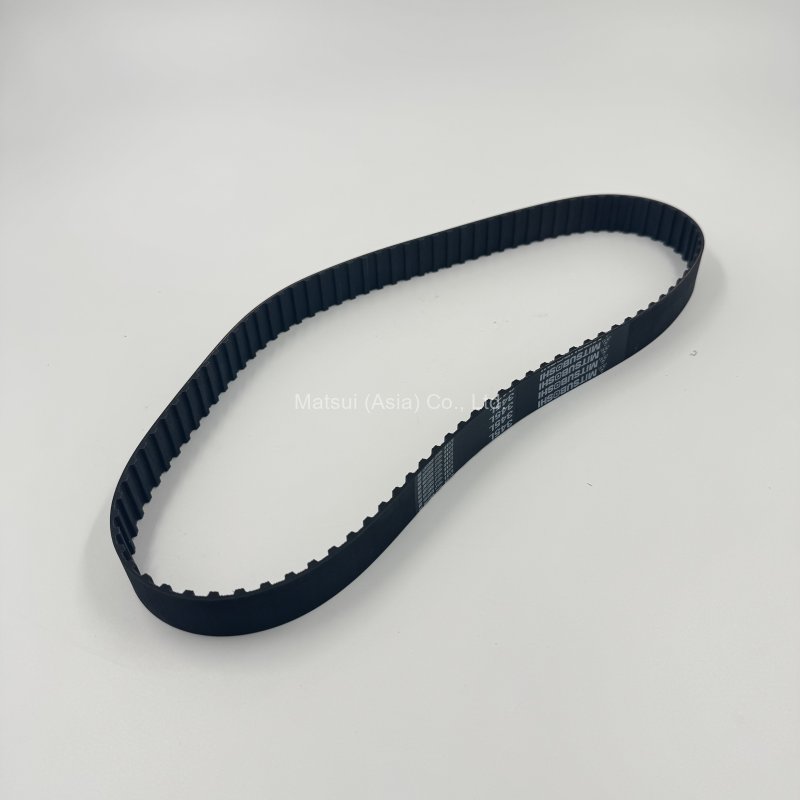

TIMING BELT (FOR HONEYCOMB ROTOR) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 107418 | TIMING BELT 345xL100 (FOR MJ3-10-25, DMZ2-40, MJ5-i-150/350, MJ6-i-G3-30-75) | - | DMZ2-40 | |
| 107422 | TIMING BELT 435xL100 (FOR MJ3-200, DMZ2-170/240, MJ5-i-1500, MJ6-i-G3-300) | - | DMZ2-170/240 | |
| 109760 | TIMING BELT 367xL100 (FOR MJ3-50-150, DMZ2-80/120, MJ5-i-650, MJ6-i-G3-135) | - | DMZ2-80/120 | |
