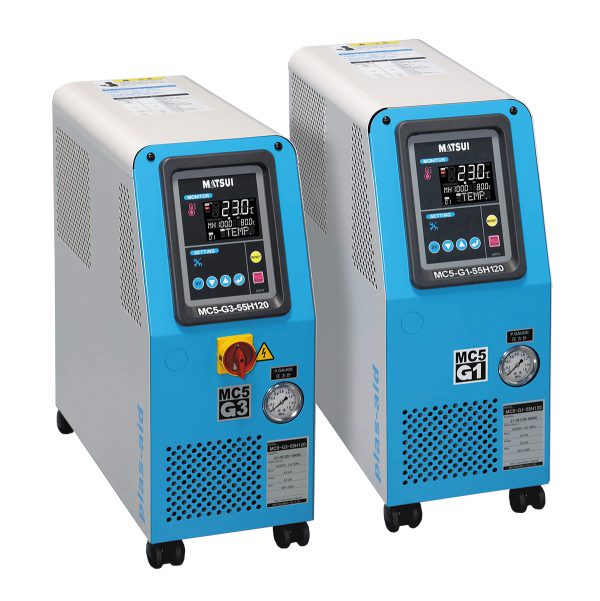

Mold Temperature Controller : MC5

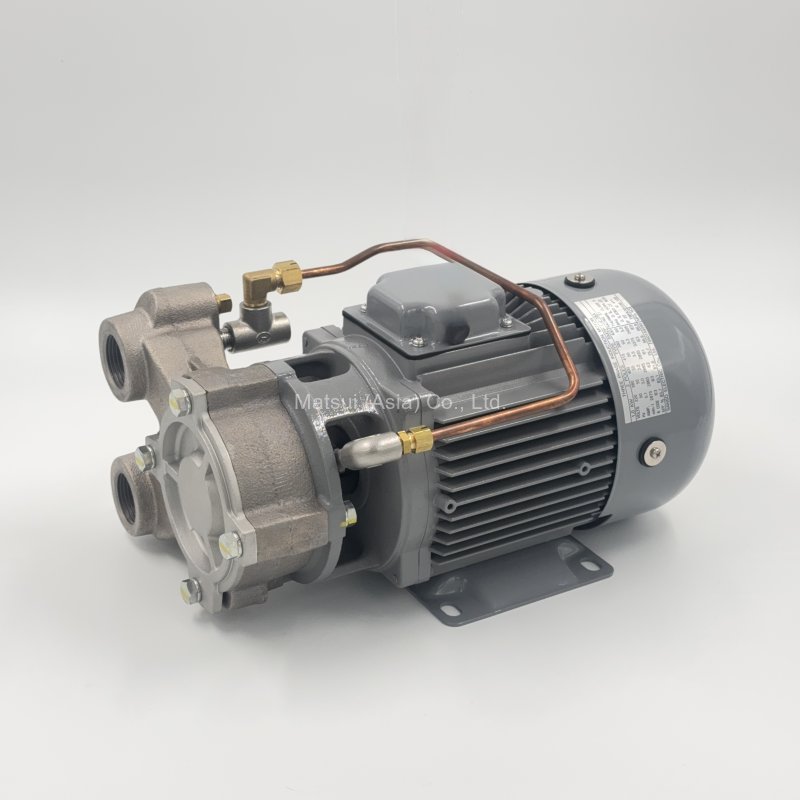

PUMP FEED |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Small Type | ||||
| 117736 | PUMP UNIT TWF2626AI 0.3kW (AC200V,50/60Hz, AC220V/60Hz) DWG.B92857_1 (MC5-G1, G3-25L/H) | AC200V,50/60Hz, AC220V/60Hz | MC5-G1, G3-25L/H | |
| 117737 | PUMP UNIT TWF2626BI 0.3kW (AC220~415V/50Hz, AC380V/60Hz) DWG.B92857_1 (MC5-G1, G3-25L/H) | AC220~415V/50Hz, AC380V/60Hz | MC5-G1, G3-25L/H | |
| 117738 | PUMP UNIT TWF2738AI 0.6kW (AC200V,50/60Hz, AC220V/60Hz) DWG.B99376_1 (G1,G3-55L/H) | AC200V,50/60Hz, AC220V/60Hz | MC5-G1, G3-55L/H | |
| 117739 | PUMP UNIT TWF2738BI 0.6kW (AC220V~415V/50Hz, AC380V/60Hz) DWG.B99376_1 (G1,G3-55L/H) | AC220~415V/50Hz, AC380V/60Hz | MC5-G1, G3-55L/H | |
| 117740 | PUMP UNIT TWFA701AM-100 1.0kW (AC200V,50/60Hz, AC220V/60Hz) DWG.B99400_1 (MC5-G1, G3-88L/H) | AC200V,50/60Hz, AC220V/60Hz | MC5-G1, G3-88L/H | |
| 117741 | PUMP UNIT TWFA701EM-100 1.0kW (AC220V~415V/50Hz, AC380V/60Hz) DWG.B99400_1 (MC5-G1, G3-88L/H) | AC220~415V/50Hz, AC380V/60Hz | MC5-G1, G3-88L/H | |
| High Flow type | ||||
| 118871 | PUMP UNIT TFFA816AM-220 2.2kW (AC200/50Hz) DWG.D24796 (MC5-G1, G3-200L/H) | AC200V,50Hz | MC5-G1, G3-200L/H | |
| 118872 | PUMP UNIT TFFA816EM-220 2.2kW (AC220/380/400/415V 50Hz) DWG.D24796 (MC5-G1,G3-200L/H) | AC220~415V/50Hz | MC5-G1, G3-200L/H | |
| 118873 | PUMP UNIT TFFA904AM-220 3.7kW (AC200V 50Hz DWG.D24797 (MC5-G1, G3-350L/H) | AC200V,50Hz | MC5-G1, G3-350L/H | |
| 118875 | PUMP UNIT TFFA904EM-220 3.7kW (AC220/380/400/415V,50Hz) DWG.D24797(MC5-G1,G3-350L/H) | AC220~415V/50Hz | MC5-G1, G3-350L/H | |
| 119517 | PUMP UNIT TFFA816AM-220 2.2kW (AC200/220V/60Hz) DWG.D24796 (MC5-G1, G3-200L/H) | AC200V,AC220V/60Hz | MC5-G1, G3-200L/H | |
| 119518 | PUMP UNIT TFFA816EM-220 2.2kW (AC380/400V 60Hz) DWG.D24796 (MC5-G1,G3-200L/H) | AC380~400V/60Hz | MC5-G1, G3-200L/H | |
| 119523 | PUMP UNIT TFFA904AM-220 3.7kW (AC200/220V 60Hz DWG.D24797 (MC5-G1, G3-350L/H) | AC200V,AC220V/60Hz | MC5-G1, G3-350L/H | |
| 119524 | PUMP UNIT TFFA904EM-220 3.7kW (AC380/400V,60Hz DWG.D24797(MC5-G1,G3-350L/H) | AC380~400V/60Hz | MC5-G1, G3-350L/H | |

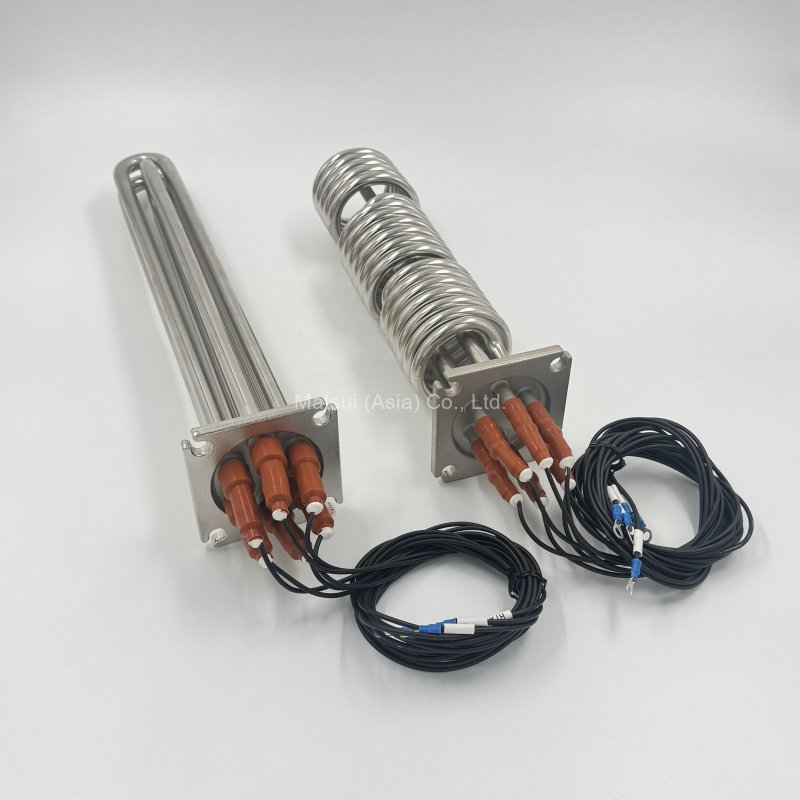

HEATER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Small Type | ||||
| 117742 | HEATER (WATER) UNIT 4kW (AC200/220V) DWG.B98244_2 (MC5-G1, G3-25L/H) | AC200~220V | MC5-G1, G3-25L/H | |
| 117743 | HEATER (WATER) UNIT 4kW (AC380/415V) DWG.B98244 (MC5-G1, G3-25L/H) | AC380~415V | MC5-G1, G3-25L/H | |
| 117744 | HEATER (WATER) UNIT 6kW (AC200/220V) DWG.B98244_1 (MC5-G1, G3-55L/H) | AC200~220V | MC5-G1, G3-55L/H | |
| 117745 | HEATER (WATER) UNIT 6kW (AC380/415V) DWG.B98244_1 (MC5-G1, G3-55L/H) | AC380~415V | MC5-G1, G3-55L/H | |
| 117746 | HEATER (WATER) UNIT 9kW (AC200/220V) DWG.B98244_1 (MC5-G1, G3-88L/H) | AC200~220V | MC5-G1, G3-88L/H | |
| 117747 | HEATER (WATER) UNIT 9kW (AC380/415V) DWG.B98244_1 (MC5-G1, G3-88L/H) | AC380~415V | MC5-G1, G3-88L/H | |
| High Flow type | ||||
| 118885 | HEATER (WATER) UNIT 12.0kW (AC200/220V) (MC5-G1, G3-200L/H) | AC200/220V | MC5-G1/G3-200L/H | |
| 118886 | HEATER (WATER) UNIT 14.0kW (AC200/220V) (MC5-G1, G3-350, 450L/H) | AC200/220V | MC5-G1/G3-350L/H | |
| 118887 | HEATER (WATER) UNIT 12.0kW (AC380/415V) (MC5-G1, G3-200L/H) | AC380/415V | MC5-G1/G3-200L/H | |
| 118888 | HEATER (WATER) UNIT 14.0kW (AC380/415V) (MC5-G1, G3-350, 450L/H) | AC380/415V | MC5-G1/G3-350L/H | |

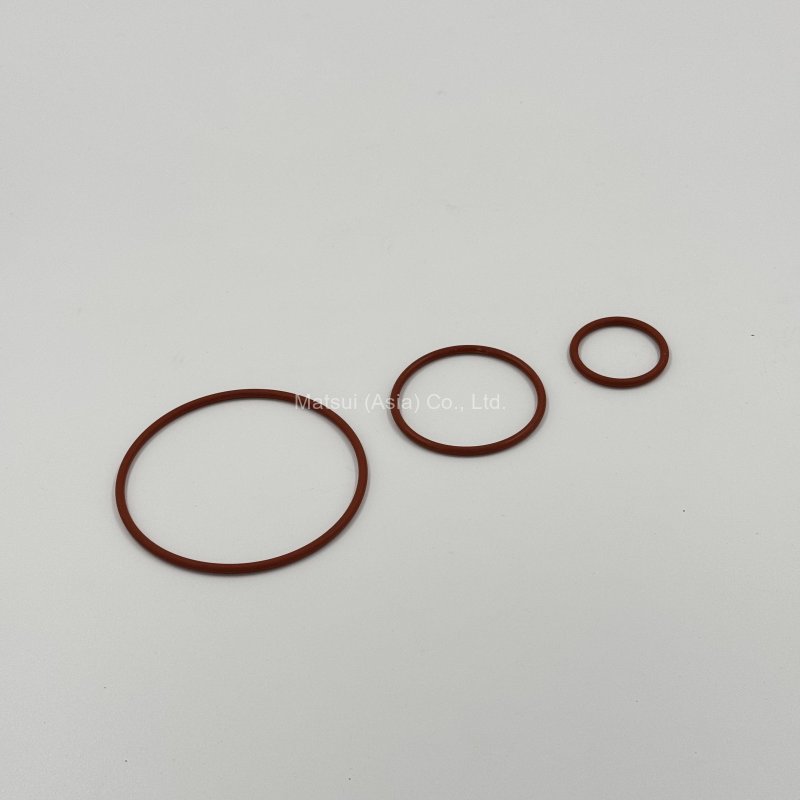

O-RING |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| For heater box | ||||
| 117799 | O-RING G-80 4C (SILICON) | MC5-G1,G3-25~450L,H | ||
| For Pump Cover | ||||
| 117799 | O-RING G-80 4C (SILICON) | MC5-G1,G3-25L,H | ||
| 117800 | O-RING G-90 4C | MC5-G1,G3-55,200,350L,H | ||
| 117807 | O-RING G-95 4C | MC5-G1,G3-88L,H | ||
| For float switch box | ||||
| 117805 | O-RING G-50 4C (SILICON) | MC5-G1,G3-25~450L,H | ||

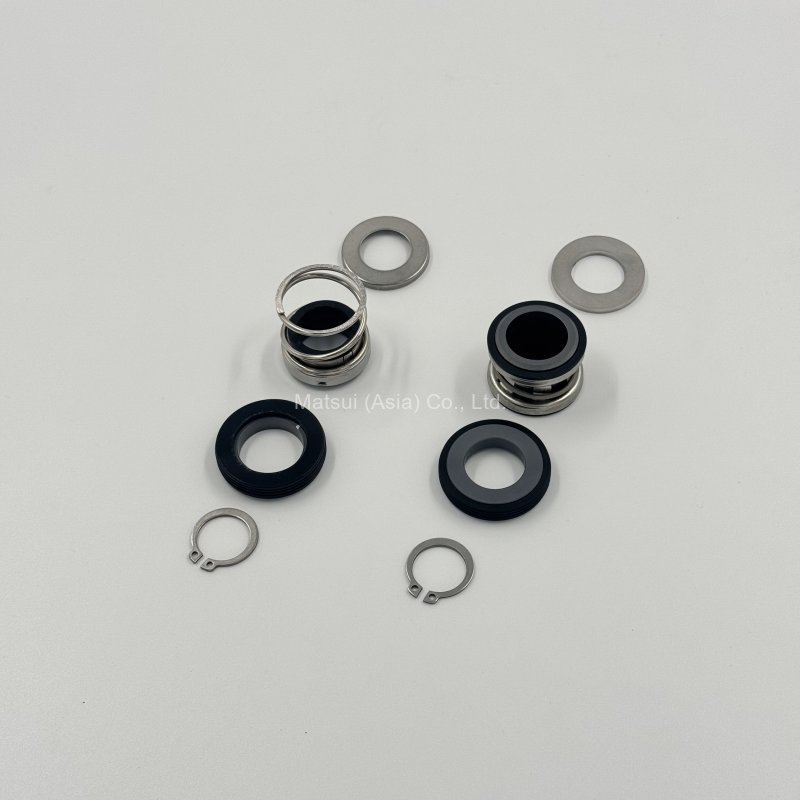

MECHANICAL SEAL |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| MECHANICAL SEAL (For pump) | ||||
| 100457 | MECHANICAL SEAL T-2100-25SICP + SICP | MC5-G1, G3-200/350L/H | ||
| 100504 | MECHANICAL SEAL 2100-15mm | MC5-G1, G3-25L/H | ||
| 100505 | MECHANICAL SEAL 2100-18mm | MC5-G1, G3-55/88L/H | ||

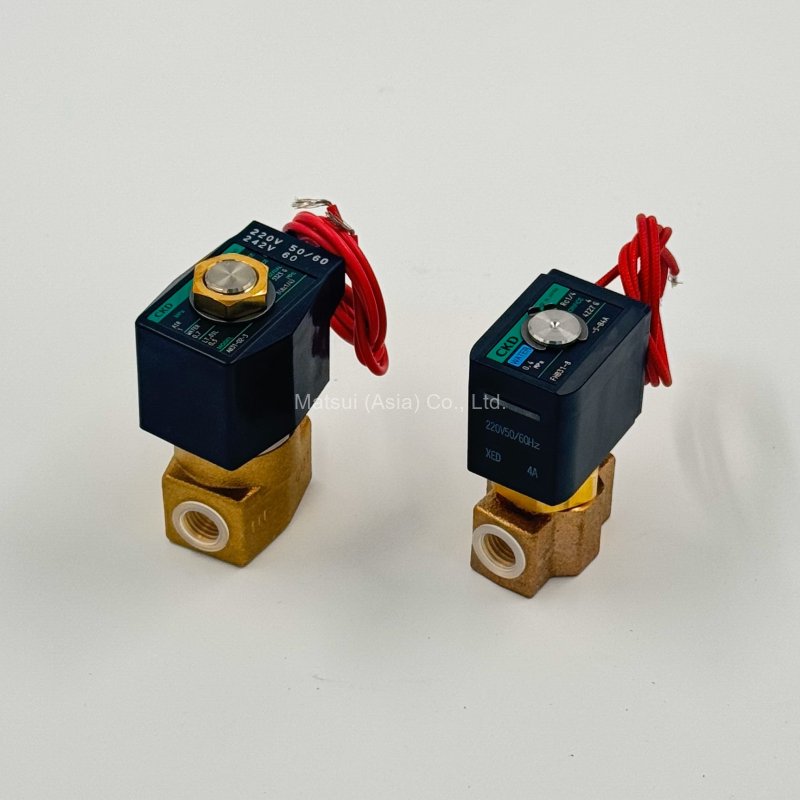

SOLENOID VALVE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| Small Type | ||||
| 117771 | SOLENOID VALVE VCW21-2G-3-02-X290 (AC200V 50/60Hz, AC220V 60Hz) (SMC) | AC200V/50/60Hz, AC220V/50Hz | MC5-25-L | |
| 117774 | SOLENOID VALVE VCS21-2G-3-02-D-XL1000 (AC200V 50/60Hz, AC220V 60Hz) (SMC) | AC200V 50/60Hz, AC220V/50Hz | MC5-25-H | |
| 119417 | SOLENOID VALVE VCS31-4G-5-03-D-XL1500 (AC220V 50Hz) (SMC) | AC220V/60Hz | MC5-88-H | |
| 123406 | SOLENOID VALVE VCW31-2G-4-03-X284 (AC200V 50/60Hz, AC220V 60Hz) (SMC) | AC200V/50/60Hz, AC220V/50Hz | MC5-55-L | |
| High Flow type | ||||
| 118890 | SOLENOID VALVE VCS31-2G-5-03-XL1200 (AC200V 50/60Hz, AC220V 60Hz) (SMC) | AC200V 50/60Hz, AC220V 50Hz | MC5-200,450H | |
| 118891 | SOLENOID VALVE VXD2130D-03-2G1-X736 (AC200V 50/60Hz, AC220V 60Hz) (SMC) | AC200V 50/60Hz, AC220V 50Hz | MC5-200,450L | |

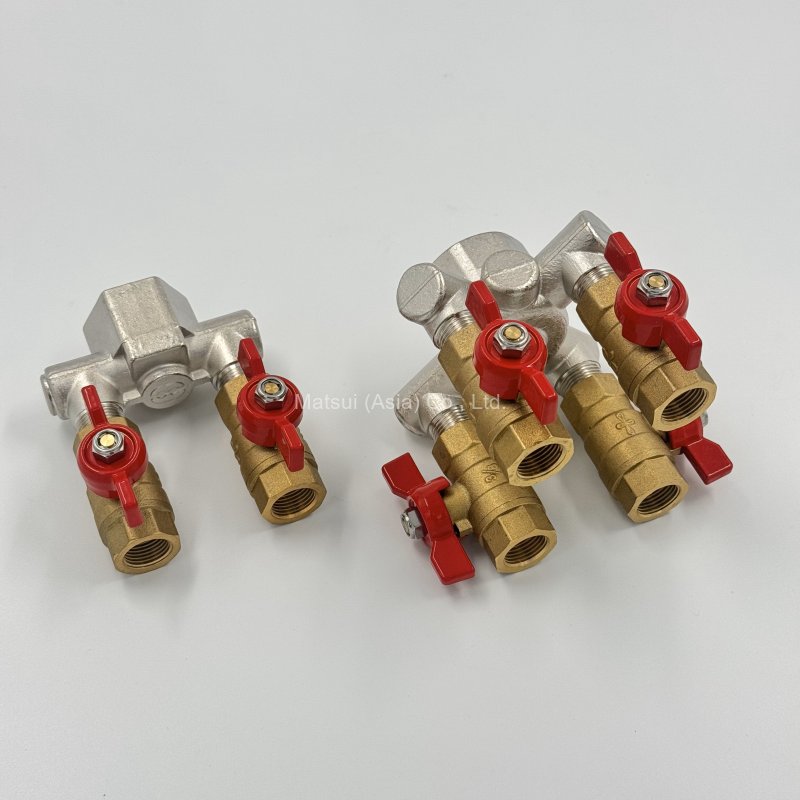

MANIFOLD |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| ACCESSORY PARTS | ||||
| 101325 | BALL VALVE 3/8B (10A) NR (ITALY) (SILVER COLOR) | MC5-G1, G3-25-88L/H | ||
| 119998 | MANIFOLD 4 PORT 3/4B x 3/8B (CASTING DWG.153719) DWG.153722 *IMPORT MJ | MC5-G1, G3-55,88L/H | ||
| 120098 | MANIFOLD 2 DIRECTION 1B x 3/4B (CASTING DWG.A16721) DWG.A16723 *IMPORT MJ | MC5-G1, G3-88L/H | ||
| 120099 | MANIFOLD 2 PORT 1/2B x 3/8B (CASTING DWG.153712) DWG.153715 *IMPORT MJ | MC5-G1, G3-25L/H | ||
| 120100 | MANIFOLD 2 PORT 3/4B x 3/8B (CASTING DWG.153712) DWG.153716 *IMPORT MJ | MC5-G1, G3-88L/H | ||
| High Flow type (Mani fold 1port) | ||||
| 118865 | GATE VALVE FG125 1 1/2B (40A) BRASS (TOA) | MC5-G1, G3-350,450L/H | ||
| 119962 | GATE VALVE FG125 1 1/4B (32A) BRASS (TOA) | MC5-G1, G3-200L/H | ||
| Small Type | ||||
| 119233 | MANIFOLD 2 PORT (MC5-25L/H-G1,G3) | MC5-G1, G3-25L/H | ||
| 119234 | MANIFOLD 4 PORT (MC5-55L/H-G1/G3) | MC5-G1, G3-55L/H | ||
| 119235 | MANIFOLD 6 PORT (MC5-88L/H-G1/G3) | MC5-G1, G3-88L/H | ||
BYPASS VALVE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |

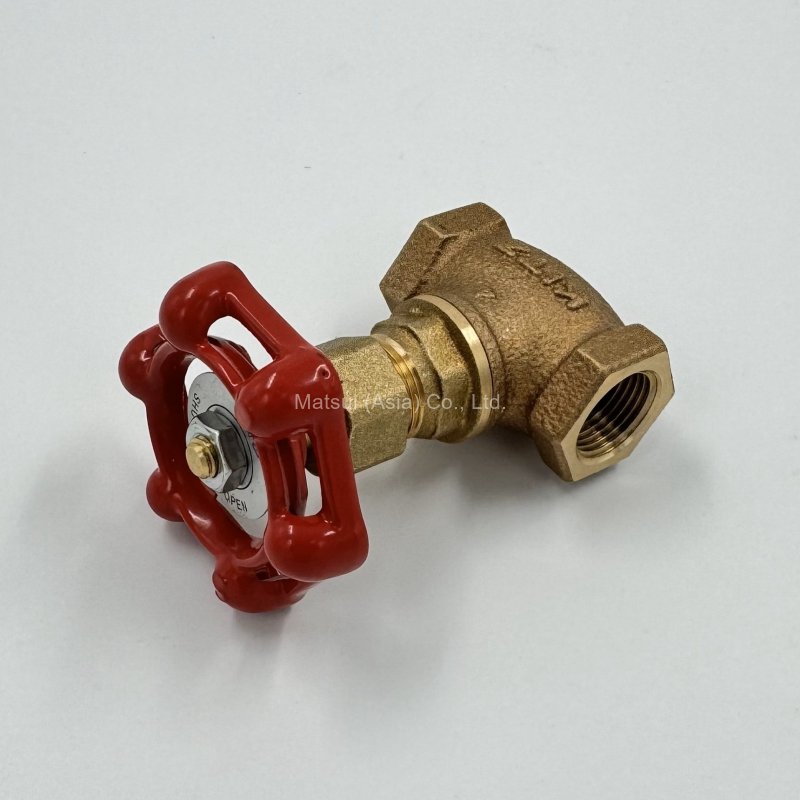

| 101378 | GLOBE VALVE 1/2B, BRASS (KITZ) | MC5-G1, G3-88L/H | ||
| 101381 | GLOBE VALVE 3/8B (10A) CLASS 150 (KITZ) | MC5-G1, G3-25,55L/H | ||

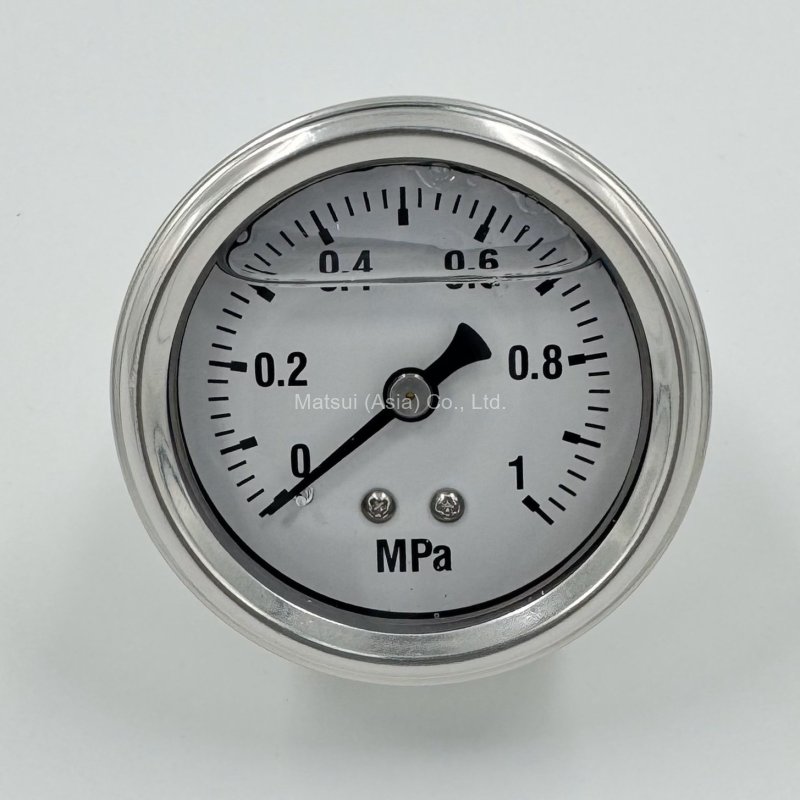

PRESSURE GAUGE |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 117770 | GLYCERRIN-FILLED GAUGES ADS DIA.50-R1/4 x 1.0MPa (DAIICHI KEIKI) | MC5-G1, G3-25~450L | ||
| 117791 | GLYCERRIN-FILLED GAUGES ADS DIA.50-R1/4 x 1.6MPa (DAIICHI KEIKI) | MC5-G1, G3-25~450H | ||

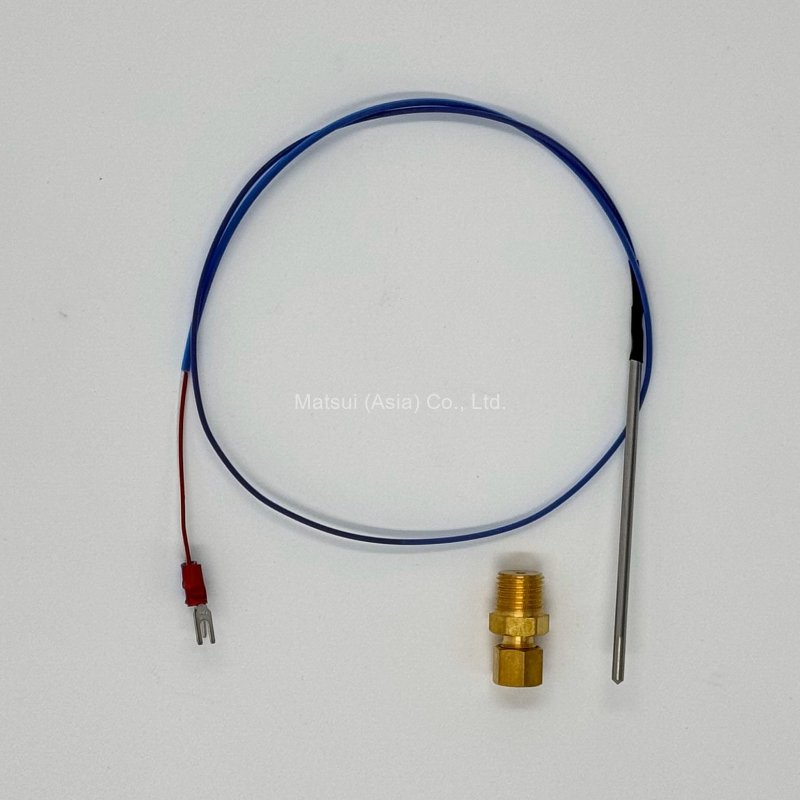

THERMOCOUPLE (FOR PUMP) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 122779 | THERMOCOUPLE TYPE K, CLASS 1, DIA.3.18x70x600L With Insulated spade terminal (Y-type) *PLIC THERMO | MC5-G1, G3-25~450H | ||
| ACCESSORY PARTS | ||||
| 101137 | RING JOINT RJ3.2x1/4B (THROUGH TYPE) | MC5-G1, G3-25~450H | ||

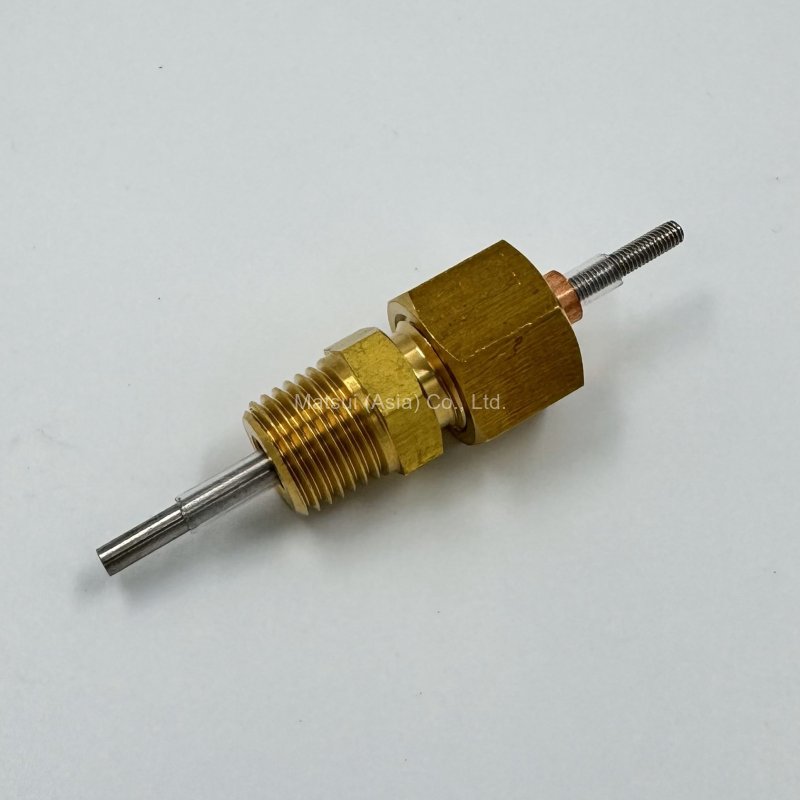

FLOATLESS SWITCH |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 111999 | FLOAT LESS SWITCH 1/4B (MATSUI) | MC5-G1, G3-25~450H | ||

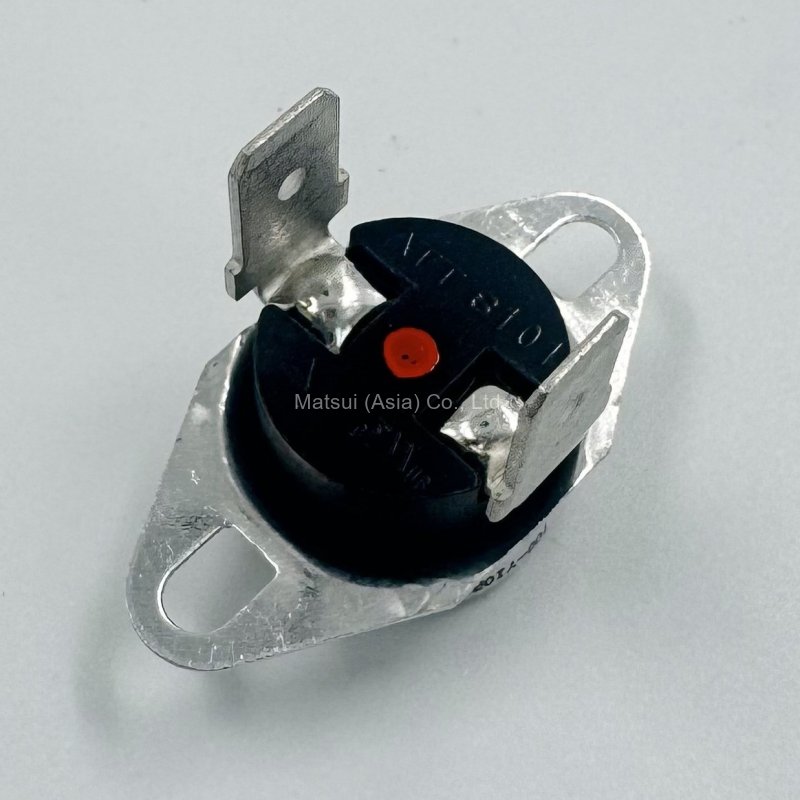

THERMOSTAT (FOR HEATER TANK) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 117792 | THERMOSTAT CS-7SA (125C) (WAKO ELECTRIC) | MC5-G1, G3-25~88H | ||
| 118895 | THERMOSTAT CS-7SA (135C) (WAKO ELECTRIC) | MC5-G1, G3-200~450H | ||
| ACCESSORY PARTS | ||||

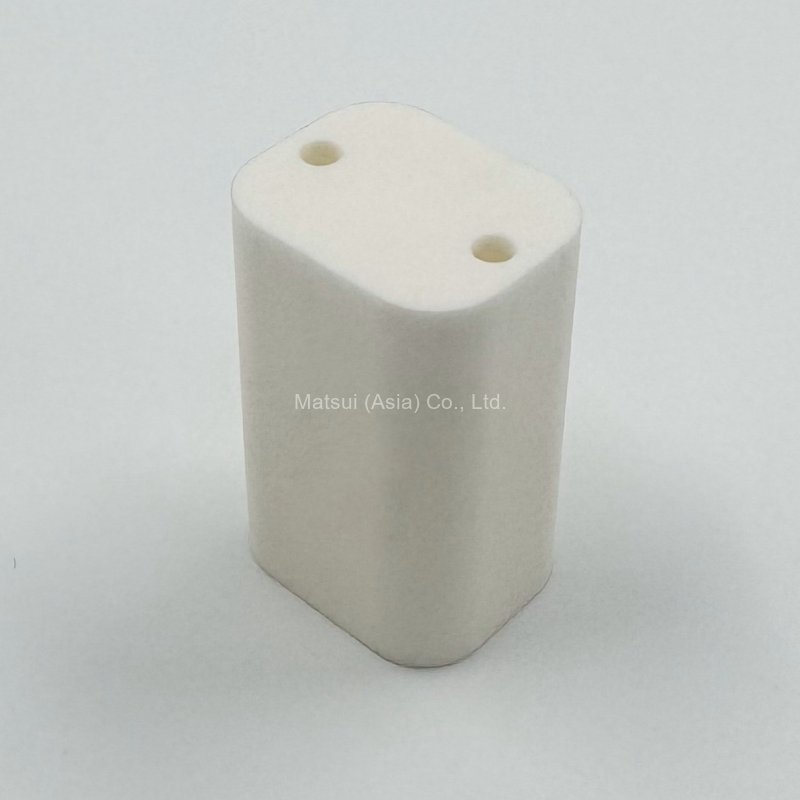

| 116103 | THERMOSTAT CAP (CERAMIC) DWG.B17441_1 | MC5-G1, G3-25~450L/H | ||
RELIEF VALVE (FOR HEATER TANK) |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 117751 | RELIEF VALVE 3/8B x 1.0Mpa DWG.A19235_4 (MC5-G1, G3-25~88L/H, 200~450L) | MC5-G1, G3-25~88L/H | ||
| 117751 | RELIEF VALVE 3/8B x 1.0Mpa DWG.A19235_4 (MC5-G1, G3-25~88L/H, 200~450L) | MC5-G1, G3-200~450L | ||
| 118877 | RELIEF VALVE 3/8B x 1.5Mpa DWG.A19248_3 (MC5-G1, G3-200~450H) | MC5-G1, G3-200~450H | ||

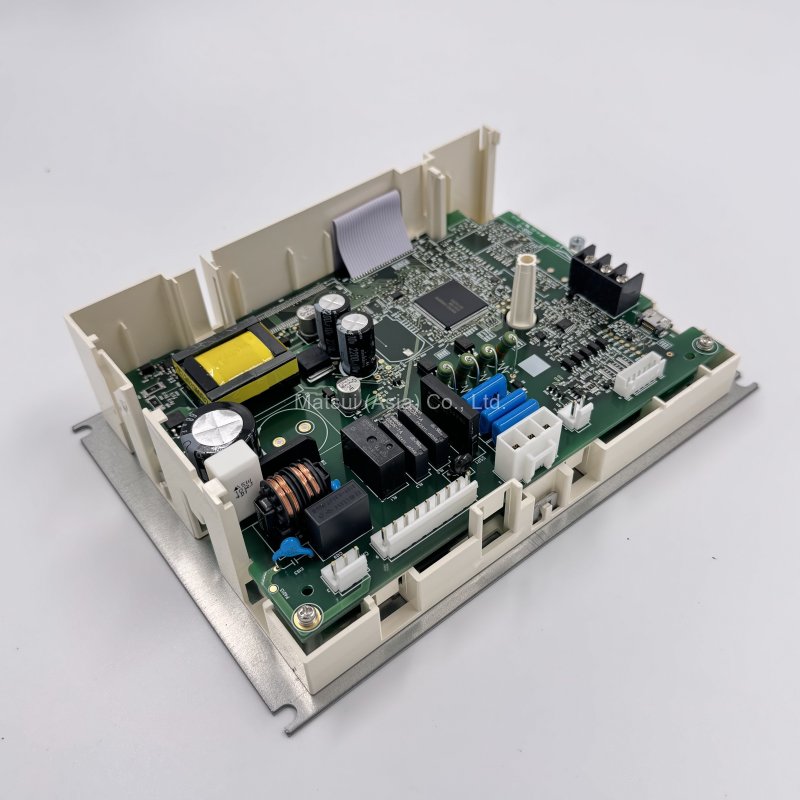

TEMP. CONTROLLER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 130021 | TEMPERATURE CONTROLLER MR16-AN (MC5-G1) | MC5-G1-25~450L/H | ||
| 130022 | TEMPERATURE CONTROLLER MR16-CT (MC5-G3) | MC5-G3-25~450L/H | ||

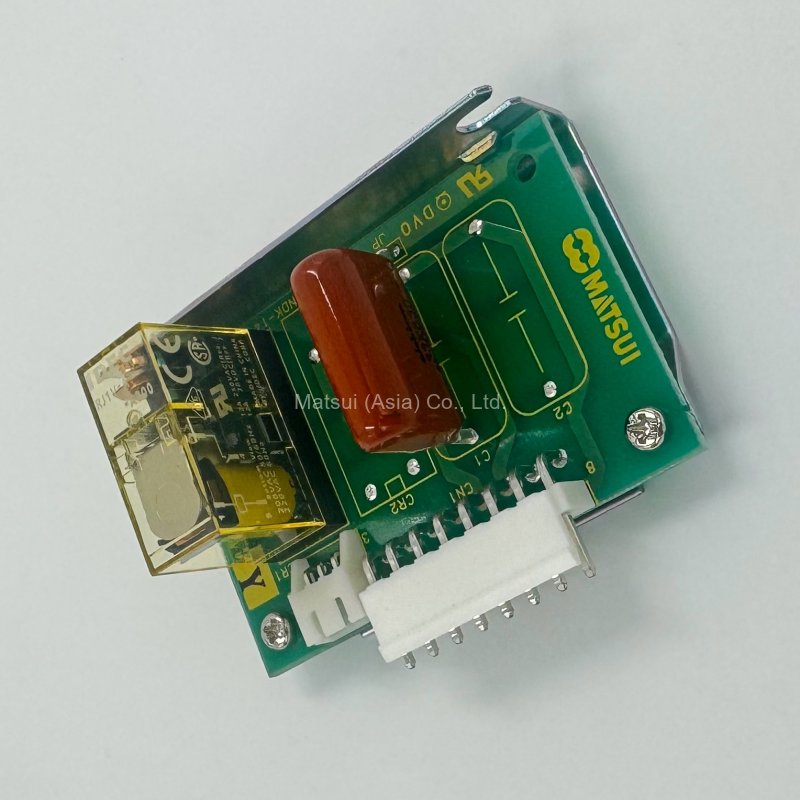

DETECTION CIRCUIT BOARD |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 113408 | DETECTION CIRCUIT BOARD HY-2N | MC5-G3-25~450L/H | ||

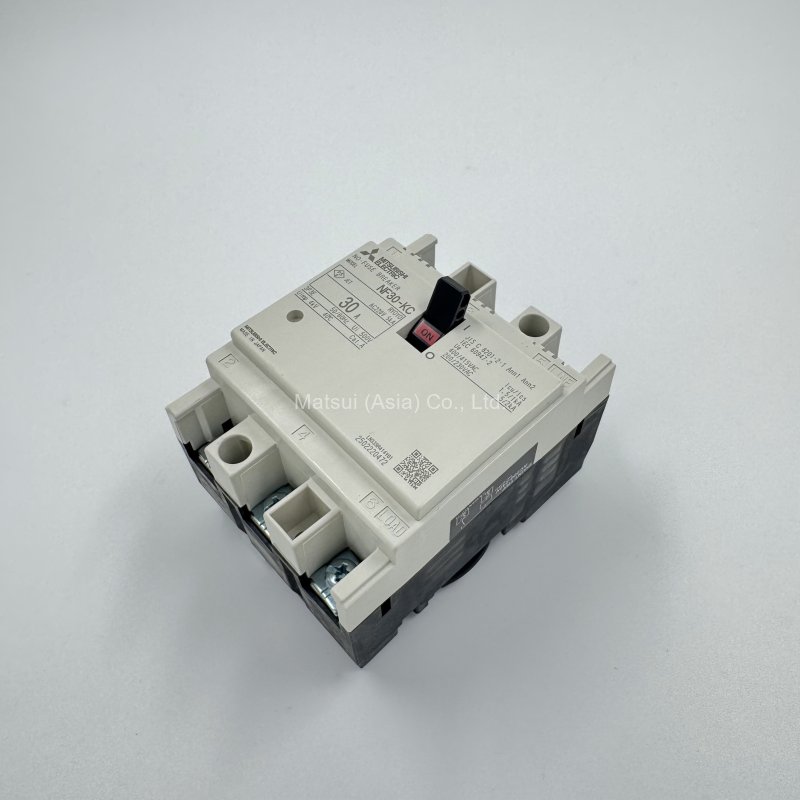

CIRCUIT BREAKER |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 102229 | CIRCUIT BREAKER NF30KC, 3P, 15AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | MC5-25-L,H | |
| 102229 | CIRCUIT BREAKER NF30KC, 3P, 15AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | MC5-25-L,H | |
| 102229 | CIRCUIT BREAKER NF30KC, 3P, 15AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | MC5-55-L,H | |
| 102229 | CIRCUIT BREAKER NF30KC, 3P, 15AT+SHT AC200V (MITSUBISHI) | AC460V ( 60Hz ) | MC5-55-L,H | |
| 102230 | CIRCUIT BREAKER NF30KC, 3P, 30AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | MC5-55-L,H | |
| 102230 | CIRCUIT BREAKER NF30KC, 3P, 30AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | MC5-88-L,H | |
| 102231 | CIRCUIT BREAKER NF50KC, 3P, 40AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | MC5-88-L,H | |
| 102242 | CIRCUIT BREAKER NF30KC, 3P, 10AT+SHT AC200V (MITSUBISHI) | AC460V ( 60Hz ) | MC5-25-L,H | |
| 102243 | CIRCUIT BREAKER NF30KC, 3P, 20AT+SHT AC200V (MITSUBISHI) | AC460V ( 60Hz ) | MC5-88-L,H | |
| 107665 | CIRCUIT BREAKER NF63CV, 3P, 63AT+SHT AC200V (MITSUBISHI) | AC200~220V ( 50-60Hz ) | MC5-200-L,H | |
| 107666 | CIRCUIT BREAKER NF125CV, 3P, 75AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | MC5-350/450-L,H | |
| 107671 | CIRCUIT BREAKER NF63CV, 3P, 40AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | MC5-350/450-L,H | |
| 118931 | CIRCUIT BREAKER NF63CV, 3P, 30AT+SHT AC200V (MITSUBISHI) | AC380~415V ( 50-60Hz ) | MC5-200-L,H | |
| 118931 | CIRCUIT BREAKER NF63CV, 3P, 30AT+SHT AC200V (MITSUBISHI) | AC460V ( 60Hz ) | MC5-200/350/450-L,H | |
MAGNETIC CONTACTOR + THERMAL RELAY |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 123123 | MAGNETIC STARTER SW-03/3H/T (0.95-1.45A) AC200V 1a (FUJI ELECTRIC) | AC380~460V ( 50-60Hz ) | MC5-25-L,H | |
| 123124 | MAGNETIC STARTER SW-03/3H/T (1.4-2.2A) AC200V 1a (FUJI ELECTRIC) | AC380~460V ( 50-60Hz ) | MC5-55-L,H | |
| 123126 | MAGNETIC STARTER SW-03/3H/T (2.2-3.4A) AC200V 1a (FUJI ELECTRIC) | AC200~220V ( 50-60Hz ) | MC5-25-L,H | |
| 123126 | MAGNETIC STARTER SW-03/3H/T (2.2-3.4A) AC200V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | MC5-88-L,H | |
| 123127 | MAGNETIC STARTER SW-03/3H/T (2.8-4.2A) AC200V 1a (FUJI ELECTRIC) | AC200~220V ( 50-60Hz ) | MC5-55-L,H | |
| 123127 | MAGNETIC STARTER SW-03/3H/T (2.8-4.2A) AC200V 1a (FUJI ELECTRIC) | AC380~415V ( 50-60Hz ) | MC5-88-L,H | |
| 123127 | MAGNETIC STARTER SW-03/3H/T (2.8-4.2A) AC200V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | MC5-200-L,H | |
| 123128 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC200V 1a (FUJI ELECTRIC) | AC220V ( 50Hz ) | MC5-88-L,H | |
| 123128 | MAGNETIC STARTER SW-03/3H/T (4-6A) AC200V 1a (FUJI ELECTRIC) | AC380~415V ( 50-60Hz ) | MC5-200-L,H | |
| 123129 | MAGNETIC STARTER SW-03/3H/T (5-8A) AC200V 1a (FUJI ELECTRIC) | AC200~220V ( 50-60Hz ) | MC5-88-L,H | |
| 123129 | MAGNETIC STARTER SW-03/3H/T (5-8A) AC200V 1a (FUJI ELECTRIC) | AC460V ( 60Hz ) | MC5-350/450-L,H | |
| 123131 | MAGNETIC STARTER SW-03/3H/T (7-11A) AC200V 1a (FUJI ELECTRIC) | AC200~220V ( 50-60Hz ) | MC5-200-L,H | |
| 123131 | MAGNETIC STARTER SW-03/3H/T (7-11A) AC200V 1a (FUJI ELECTRIC) | AC380~415V ( 50-60Hz ) | MC5-350/450-L,H | |
| 123229 | MAGNETIC STARTER SW-4-0/3H/T (12-18A) AC100V 1a (FUJI ELECTRIC) | AC200~220V ( 50-60Hz ) | MC5-350/450-L,H | |

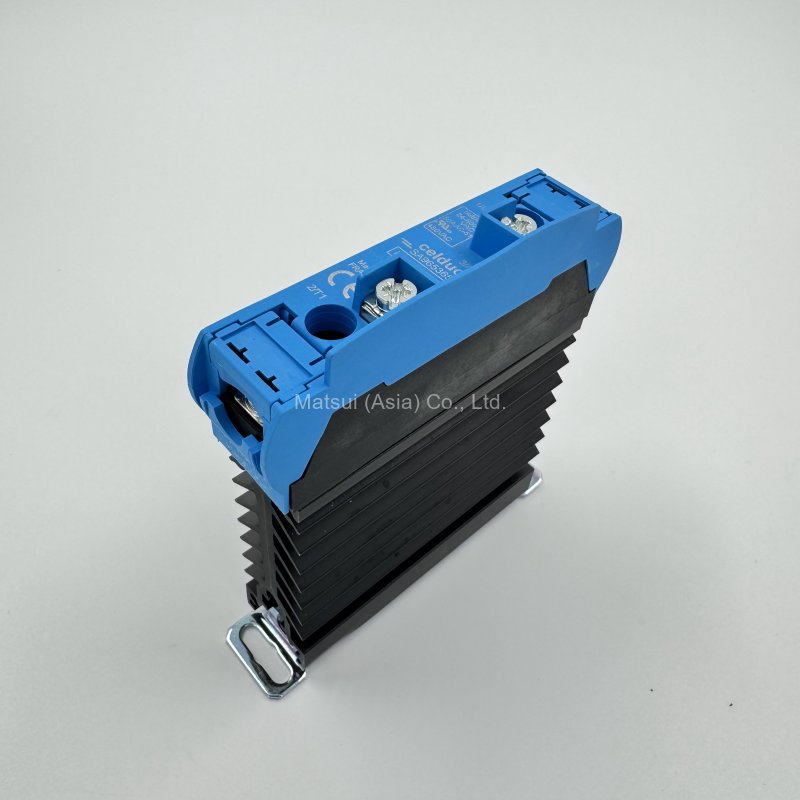

SOLID STATE RELAY |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 118220 | SOLID STATE RELAY : SAL965365 (CELDUC) | AC200~220V ( 50-60Hz ) | MC5-25,55-L,H | |
| 118220 | SOLID STATE RELAY : SAL965365 (CELDUC) | AC380~460V ( 50-60Hz ) | MC5-25,55,88-L,H | |
| 118285 | SOLID STATE RELAY : SAM965365 (CELDUC) | AC200~220V ( 50-60Hz ) | MC5-88-L,H | |
| 118285 | SOLID STATE RELAY : SAM965365 (CELDUC) | AC380~460V ( 50-60Hz ) | MC5-200,350,450-L,H | |
| 118939 | SOLID STATE RELAY : SAH965365 (CELDUC) | AC200~220V ( 50-60Hz ) | MC5-200,350,450-L,H | |

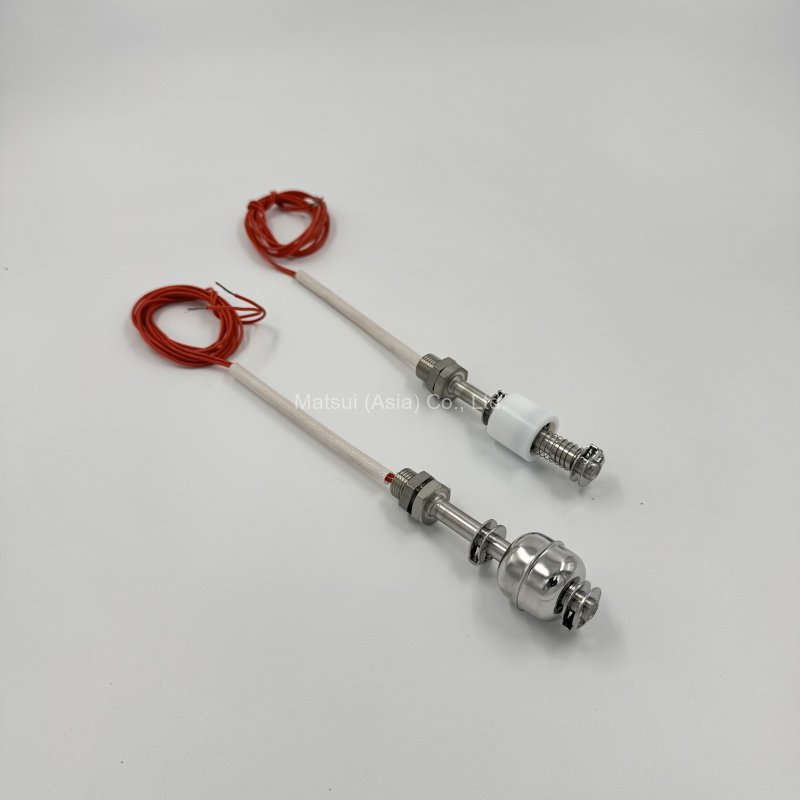

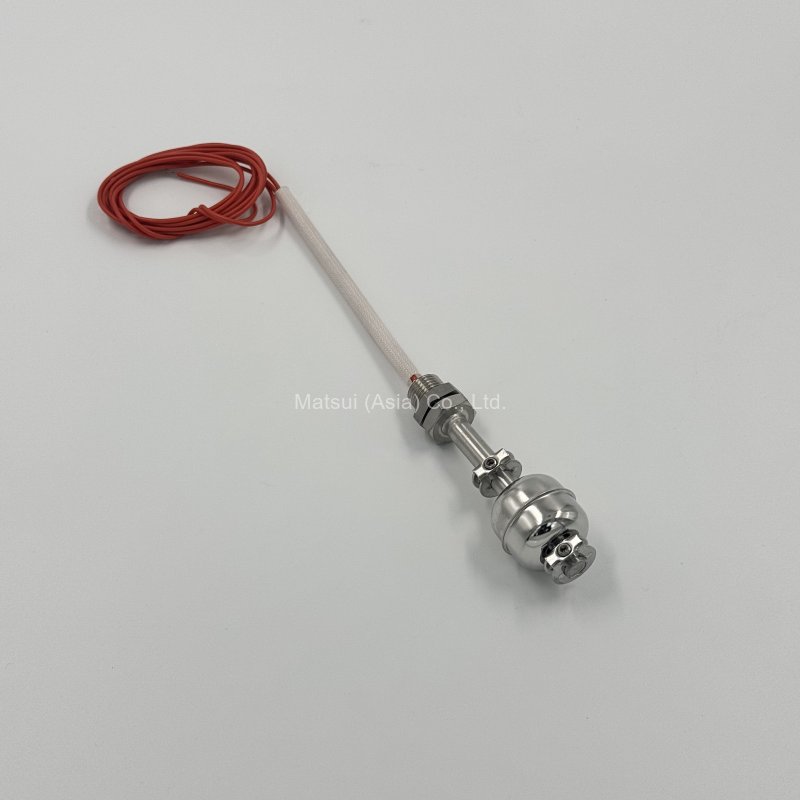

FLOAT SWITCH |
||||
|---|---|---|---|---|
| Code No | Part Name | Power | Model | Add To Cart Cart |
| 117750 | FLOAT SWITCH : OLV-25S-1P-75L DWG.D11678_1 (MC5-G1, G3-25~450L) | MC5-G1,G3-25~450L | ||
| 117790 | FLOAT SWITCH : OLV-25S-1P (4F)-L81 DWG.D11679_1 (MC5-G1, G3-25~450H) | MC5-G1,G3-25~450H | ||
